Telemecanique XMP Pressure Switches for Water Pumps

Options Available

Model	SKU	Rrp	Inlet	Current	Motor	Voltage	Our Price (ex VAT)
XMP06 1-6 Bar	060-410	£44.00	1/4" BSPF	20 A	1.5 kW	51	£42.24 £35.20	Loading... Add to Basket
XMP12 2-12 Bar	060-412	£47.00	1/4" BSPF	20 A	1.5 kW	51	£45.12 £37.60	Loading... Add to Basket

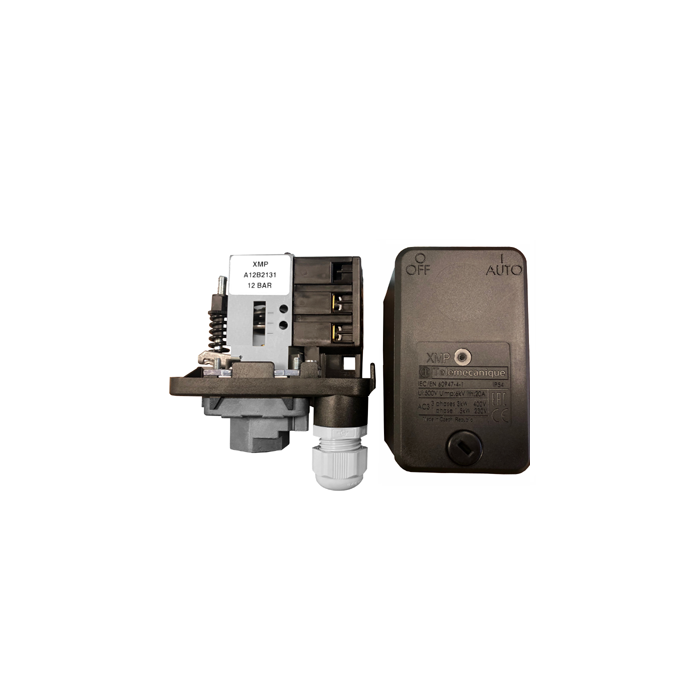

High quality, reliable pressure switches by Telemecanique used for controlling water pressure booster sets in conjunction with an expansion vessel.

The pressure switches have adjustable cut out and differential (cut in) pressures to suit your application. The switch will work with fresh water and sea water and there is a 1/4" female BSP connection, with electrical connection via screw terminals.

These 2 pole N/C (normally closed) pressure switches, are suitable for single phase pumps up to 1.5 kW or as a digital signal to control 3 phase pumps using a control panel.

Ideal replacements for Teddington, Square D and Italtecnica pressure switches.

XMPA06 (XMPA06B2131) has a maximum cut out pressure of 6 bar (87 p.s.i.) with a pre-set differential of 1 bar (14.5 p.s.i.).

XMPA12 (XMPA12B2131) has a maximum cut out pressure of 12 bar (175 p.s.i.) with a pre-set differential of 2 bar (29 p.s.i.),

►Ingress protection to IP54

Please note: These pressure switches are NOT suitable for air compressors.
