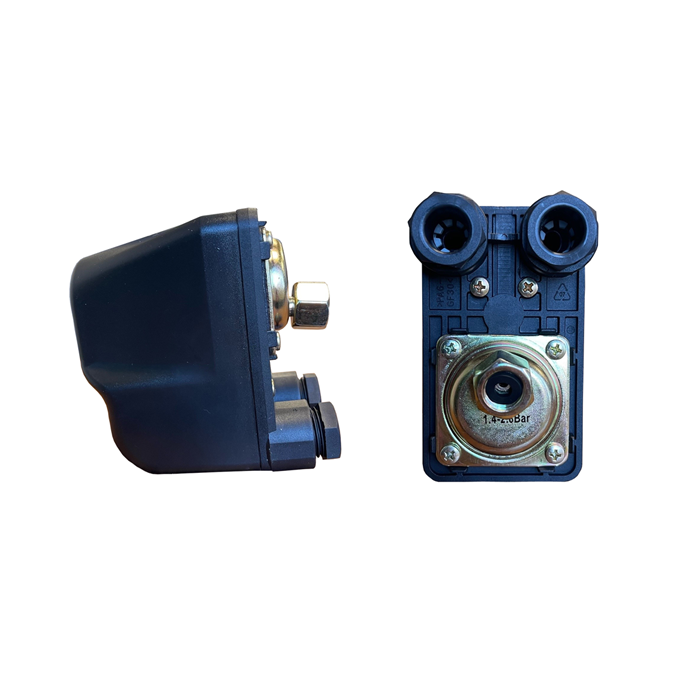

Coelbo PS+ Water Pump Pressure Switch

View delivery information
Price match guarantee, call 0121 123 456 if you've seen it cheaper
Coelbo PS+ water pump pressure switches for controlling water pressure booster sets in conjunction with an expansion vessel.
chevron-down chevron-up
1 options available from £24.00
Description
Downloads
Need help choosing? Send enquiry



Options Available

Model SKU Inlet Current Motor Voltage Our Price (ex VAT)
PS2+ Pressure Switch 4439-008 1/4" BSPF 20 A 1.5 kW 51
£28.80 £24.00
loader
Loading...
Add to Basket

Description

Reliable water pump pressure switches by Coelbo used for controlling water pressure booster sets in conjunction with an expansion vessel.

The pressure switches have adjustable cut out and differential (cut in) pressures to suit your application. The switch will work with fresh water and sea water and there is a 1/4" female BSP connection, with electrical connection via screw terminals.

These Coelbo pressure control switches, are suitable for single phase pumps up to 1.5 kW or as a digital signal to control 3 phase pumps using a control panel.

Ideal replacements for Teddington, Square D and Italtecnica pressure switches.

PS+ has a maximum cut out pressure of 6.5 bar (87 p.s.i.) with a pre-set differential of 1 bar (14.5 p.s.i.).

►Ingress protection to IP54

Please note: These pressure switches are NOT suitable for air compressors.
