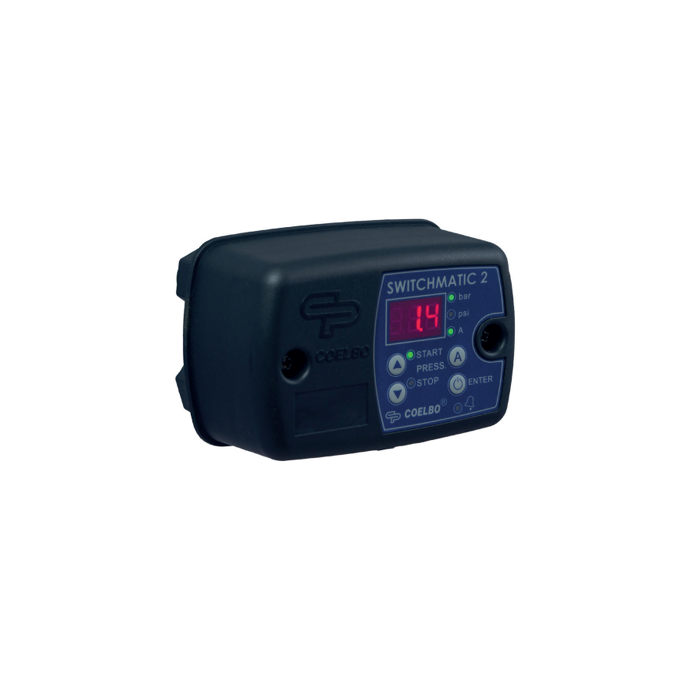

Switchmatic 2 Electronic Pressure Switch

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Switchmatic 2 by Coelbo is an electronic pressure switch for controlling the start and stop of single phase electric pumps up to 3HP (2.2 kW) in conjunction with an expansion vessel.

2 options available from £52.00

Description

View the full range:

Need help choosing? Send enquiry

Options Available

Model	Voltage	Motor	Current	Inlet	Outlet	SKU	RRP	Our Price (ex VAT)
Model: Switchmatic 2	Voltage: 110-230V	Motor: 2.2 kW	Current: 16 A	Inlet: 1/4" BSPF	Outlet:	SKU: 4439-005	RRP: £65.00	£52.00 £62.40	Loading... Add to Basket
Model: T-Kit Switchmatic 2	Voltage: 110-230V	Motor: 2.2 kW	Current: 16 A	Inlet: 1" BSPM	Outlet: 1" BSPF	SKU: 4439-005K	RRP: £79.00	£63.20 £75.84	Loading... Add to Basket

Description

High quality, electronic pressure switches for controlling the start and stop of single phase electric pumps up to 3HP (2.2 kW) in conjunction with an expansion vessel. Switchmatic 2 pressure switches have an integrated digital pressure gauge, and the cut in and out pressure can be easily set and adjusted through the user friendly control panel.

Wiring is carried out identically to a conventional electric mechanical switch.

The Switchmatic 2 can operate as a differential pressure switch, as an inverted pressure switch, or just with maximum / minimum pressures.

T-Kit Switchmatic 2 is integrated in a 3 way fitting.

Specifications
►Voltage 1 ~ 110 - 230V
►Maximum liquid temperature: 40°C
►Maximum Pressure: 8 bar
►Maximum Current: 16A

Protection
►Dry run with auto re-start
►Over-current
►Rapid cycle (frequent stop/start)
►Ingress: IP55
