Options Available
| Model | Outlet | SKU | Our Price (ex VAT) |
|---|---|---|---|
| Model: 8 Litre Inline - Max 16 Bar | Outlet: 1" | SKU: 2769-091 | |
| Model: 12 Litre Inline - Max 16 Bar | Outlet: 1" | SKU: 2769-092 | |
| Model: 18 Litre Inline - Max 16 Bar | Outlet: 1" | SKU: 2769-093 | |
| Model: 24 Litre Inline - Max 16 Bar | Outlet: 1" | SKU: 2769-094 | |
| Model: 60 Litre Vertical - Max 16 Bar | Outlet: 1" | SKU: 2769-096 | |
| Model: 80 Litre Vertical - Max 16 Bar | Outlet: 1" | SKU: 2769-097 | |
| Model: 100 Litre Vertical - Max 16 Bar | Outlet: 1" | SKU: 2769-098 | |
| Model: 8 Litre Inline - UltraMax 25 Bar | Outlet: 1" | SKU: 2769-099 | |
| Model: 24 Litre Inline - UltraMax 25 Bar | Outlet: 1" | SKU: 2769-100 | |
| Model: 100 Litre Vertical - UltraMax 25 Bar | Outlet: 1" | SKU: 2769-101 |
Description

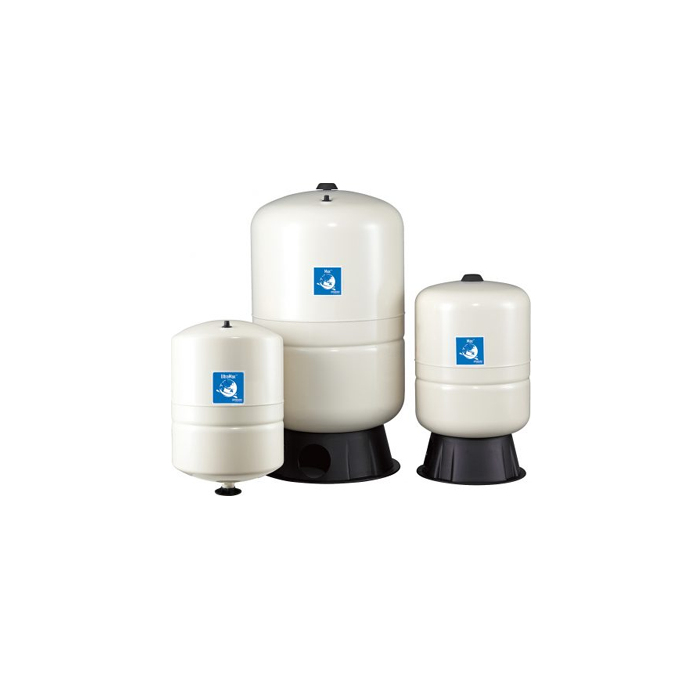

(Ultra)Max™ vessels are fixed single membrane pressure vessels constructed with a virgin polypropylene liner combined with a high grade butyl diaphragm. Water enters the pressure tank through the corrosion resistant stainless steel water connection.
The almond painted, two-part polyurethane exterior over an epoxy undercoating provides excellent protection from UV and salt spray.
GWS expansion vessels are quality tested at several stages during production to ensure the structural integrity of every tank which guarantees a high quality, reliable vessel.
Inline vessels have no mounting brackets
Vertical vessels have a circular plastic base
Specifications
►Maximum liquid temperature: 90°C
►Maximum working pressure: 16 bar (232psi) OR 25 bar (362psi)
►Maintenance free
►5 Year Warranty
►Suitable for potable water
►WRAS Approved
