Elbi DP Expansion Vessels

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

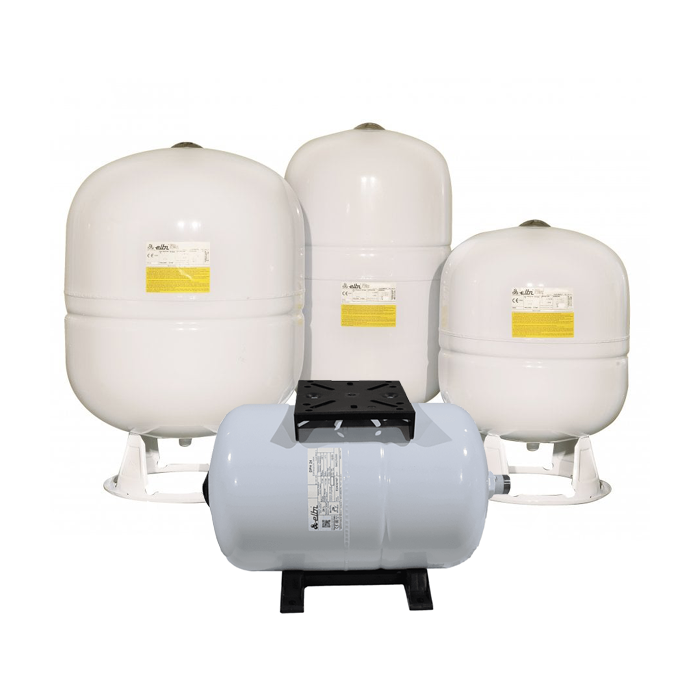

Elbi DP multifunctional pressure vessels with fixed butyl diaphragm and insulated protective sheath suitable for drinking water, sanitary hot water systems, central heating and air conditioning systems.

6 options available from £46.40

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Outlet	Our Price (ex VAT)
DPH24 24 Litre Horizontal	1100-2040	£58.00	1"	£55.68 £46.40	Loading... Add to Basket
DPV50 50 Litre Vertical	1100-2015	£185.00	1"	£177.60 £148.00	Loading... Add to Basket
DPV100 100 Litre Vertical	1100-2020	£290.00	1-1/4"	£278.40 £232.00	Loading... Add to Basket
DPV200 200 Litre Vertical	1100-2025	£420.00	1-1/4"	£403.20 £336.00	Loading... Add to Basket
DPV300 300 Litre Vertical	1100-2030	£540.00	1-1/4"	£518.40 £432.00	Loading... Add to Basket
DPV500 500 Litre Vertical	1100-2035	£859.00	1-1/4"	£824.40 £687.00	Loading... Add to Basket

Description

Elbi DP pressure vessels with fixed butyl membranes. These Elbi vessels are multifunctional designed to be used in both heating systems and to absorb the water expansion volume generated by changing temperatures in a sanitary hot or cold water system.

Both application types are possible, thanks to the expansion vessels protective sheath with patented crimping system. This means that the inner surface of the tank is corrosion resistant.

These Elbi pressure vessels are CE approved and suitable for drinking water.

For sanitary system installations, the Elbi expansion vessel must be installed in the cold water supply pipe (do not install in the hot water outlet).

This Elbi pressure vessel has a white, epoxy powder painted body which is long lasting.

Specifications
►Maximum working pressure: 10 bar (150psi)
►Maximum temperature: 99°C
►Stainless steel connection with hexagonal nut
►Fixed alimentary diaphragm in butyl
►Supplied pre-charged to 2.5 bar
►CE Approved
