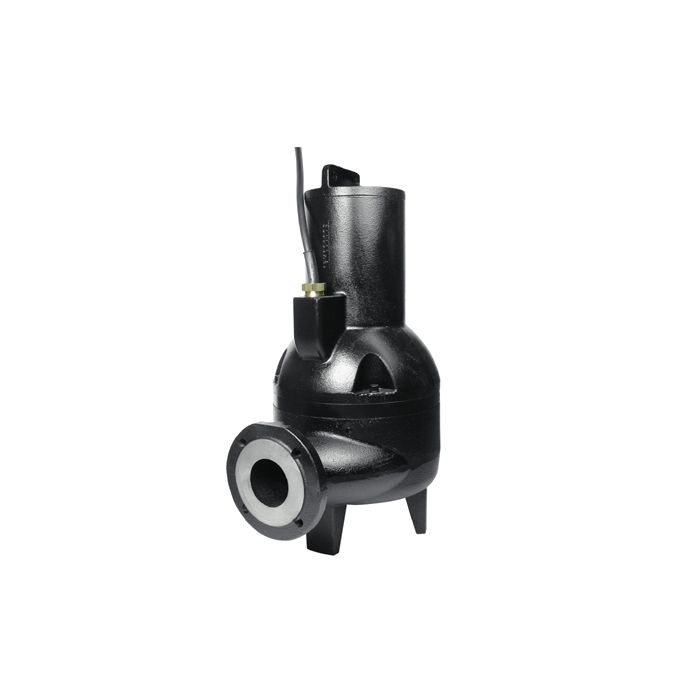

Efaflu VTQ Submersible Sewage Pumps (~2900rpm)

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

31 options available from £541.80

Description

Downloads

Options Available

Model	SKU	Rrp	Maxsolid	Outlet	Power	Floatswitch	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
VTQFF142M-1005	5410-110	£619.20	32 mm	1-1/2"	0.4 kW	YES	9 m	283 l/min	51	£668.74 £557.28	Loading... Add to Basket
VTQFF162M-1306	5410-111	£798.80	40 mm	1-1/2"	0.6 kW	YES	12 m	333 l/min	51	£862.70 £718.92	Loading... Add to Basket
VTQFF192M-1507	5410-112	£826.80	40 mm	1-1/2"	0.9 kW	YES	14 m	366 l/min	51	£892.94 £744.12	Loading... Add to Basket
VTQFF112M-1510	5410-113	£863.10	40 mm	1-1/2"	1.1 kW	YES	17 m	400 l/min	51	£932.15 £776.79	Loading... Add to Basket
VTQFF242M-1005	5410-114	£653.10	32 mm	2"	0.4 kW	YES	9 m	283 l/min	51	£705.35 £587.79	Loading... Add to Basket
VTQFF262M-1306	5410-115	£833.40	40 mm	2"	0.6 kW	YES	12 m	333 l/min	51	£900.07 £750.06	Loading... Add to Basket
VTQFF292M-1507	5410-116	£863.10	40 mm	2"	0.9 kW	YES	14 m	366 l/min	51	£932.15 £776.79	Loading... Add to Basket
VTQFF212M-1510	5410-117	£896.20	40 mm	2"	1.1 kW	YES	17 m	400 l/min	51	£967.90 £806.58	Loading... Add to Basket
VTQFF112M-2006	5410-118	£1,518.50	65 mm	DN 65	1.1 kW	YES	10 m	666 l/min	51	£1,639.98 £1,366.65	Loading... Add to Basket
VTQFF142T-1005	5410-119	£602.00	32 mm	1-1/2"	0.4 kW	NO	9 m	283 l/min	53	£650.16 £541.80	Loading... Add to Basket
VTQFF162T-1306	5410-120	£764.00	40 mm	1-1/2"	0.6 kW	NO	12 m	333 l/min	53	£825.12 £687.60	Loading... Add to Basket
VTQFF192T-1507	5410-121	£807.00	40 mm	1-1/2"	0.9 kW	NO	14 m	366 l/min	53	£871.56 £726.30	Loading... Add to Basket
VTQFF112T-1510	5410-122	£841.80	40 mm	1-1/2"	1.1 kW	NO	17 m	400 l/min	53	£909.14 £757.62	Loading... Add to Basket
VTQFF242T-1005	5410-123	£635.00	32 mm	2"	0.4 kW	NO	9 m	283 l/min	53	£685.80 £571.50	Loading... Add to Basket
VTQFF262T-1306	5410-124	£798.80	40 mm	2"	0.6 kW	NO	12 m	333 l/min	53	£862.70 £718.92	Loading... Add to Basket
VTQFF292T-1507	5410-125	£841.80	40 mm	2"	0.9 kW	NO	14 m	366 l/min	53	£909.14 £757.62	Loading... Add to Basket
VTQFF212T-1510	5410-126	£876.40	40 mm	2"	1.1 kW	NO	17 m	400 l/min	53	£946.51 £788.76	Loading... Add to Basket
VTQFF112T-2006	5410-127	£1,450.40	65 mm	DN 65	1.1 kW	NO	10 m	666 l/min	53	£1,566.43 £1,305.36	Loading... Add to Basket
VTQFF182T-2807	5410-128	£1,518.50	65 mm	DN 65	1.8 kW	NO	15 m	766 l/min	53	£1,639.98 £1,366.65	Loading... Add to Basket
VTQFF222T-3109	5410-129	£1,584.40	65 mm	DN 65	2.2 kW	NO	17 m	866 l/min	53	£1,711.15 £1,425.96	Loading... Add to Basket
VTQFF302T-3309	5410-130	£1,653.50	65 mm	DN 65	3 kW	NO	19 m	916 l/min	53	£1,785.78 £1,488.15	Loading... Add to Basket
VTQFF372T-4315	5410-131	£2,646.00	55 mm	DN 65	4 kW	NO	24 m	1433 l/min	53	£2,857.68 £2,381.40	Loading... Add to Basket
VTQFF552T-4021	5410-132	£2,882.50	55 mm	DN 65	5.5 kW	NO	27 m	1416 l/min	53	£3,113.10 £2,594.25	Loading... Add to Basket
VTQFF222T-3208	5410-133	£1,957.00	80 mm	DN 80	2.2 kW	NO	15 m	1066 l/min	53	£2,113.56 £1,761.30	Loading... Add to Basket
VTQFF302T-3809	5410-134	£2,108.20	80 mm	DN 80	3 kW	NO	17 m	1066 l/min	53	£2,276.86 £1,897.38	Loading... Add to Basket
VTQFF372T-4013	5410-135	£2,849.00	80 mm	DN 80	4 kW	NO	20 m	1416 l/min	53	£3,076.92 £2,564.10	Loading... Add to Basket
VTQFF552T-4018	5410-136	£3,084.50	80 mm	DN 80	5.5 kW	NO	25 m	1566 l/min	53	£3,331.26 £2,776.05	Loading... Add to Basket
VTQFF752T-4023	5410-137	£3,353.40	80 mm	DN 80	7.5 kW	NO	29 m	1500 l/min	53	£3,621.67 £3,018.06	Loading... Add to Basket
VTQFF372T-4014	5410-138	£3,720.60	90 mm	DN 100	4 kW	NO	18 m	1333 l/min	53	£4,018.25 £3,348.54	Loading... Add to Basket
VTQFF552T-4015	5410-139	£3,951.70	90 mm	DN 100	5.5 kW	NO	22 m	1333 l/min	53	£4,267.84 £3,556.53	Loading... Add to Basket
VTQFF752T-4019	5410-140	£4,282.20	90 mm	DN 100	7.5 kW	NO	26 m	1583 l/min	53	£4,624.78 £3,853.98	Loading... Add to Basket

Description

Efaflu VTQ submersible pumps (~ 2900rpm) are designed for transferring wastewater and sewage with solids up to 100 mm. These submersible wastewater pumps are typically used where high pressure is required and are ideal for industrial, agricultural and domestic sewage applications, including transferring wastewater and sewage from tanks, draining rainwater and floodwater and pumping sewage in small wastewater stations. These VTQ electric submersible pump models (~ 2900rpm) have a slower flow rate than the Efaflu VTQ submersible sewage pumps (~ 1450rpm) version. Therefore we recommend the Efaflu VTQ pumps models (~ 2900rpm) to be used for high-pressure application where the flow rate is not a requirement.

Benefitting from a versatile, robust and compact design, these submersible sewage pumps by Efaflu are made from tough cast iron and are supplied with double mechanical seals that prevent leakage, increase service life and ensure reliability. In addition, these Efaflu VTQ submersible wastewater pumps come with vortex impellers for more efficient operation when transferring fluid containing solids. Although channel impellers are more efficient than vortex impellers, they are more prone to blockage. Therefore as a leading submersible pump supplier, we recommend using vortex impeller pumps in all sewage applications due to the minimal risk of clogging and solid handling capabilities unless the discharge head is too high or the pipe run is too long.

Available as 230V and 400V, these electric submersible pumps can be supplied with single phase motor that includes thermal over-current protection and a float switch for automatic operation.

Specifications
►Maximum liquid temperature: 40°C
►Maximum soft solids: Up to 100 mm
►Power cable: 10 Metres (except 1005 models which are supplied with 5 metres)

Materials
►Pump body: Cast iron
►Impeller: Cast iron
►Shaft: AISI 420 Stainless Steel

As a longstanding Efaflu Pumps supplier, Whisper Pumps are highly experienced in all submersible water pump models. If you are unsure on the submersible sewage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
