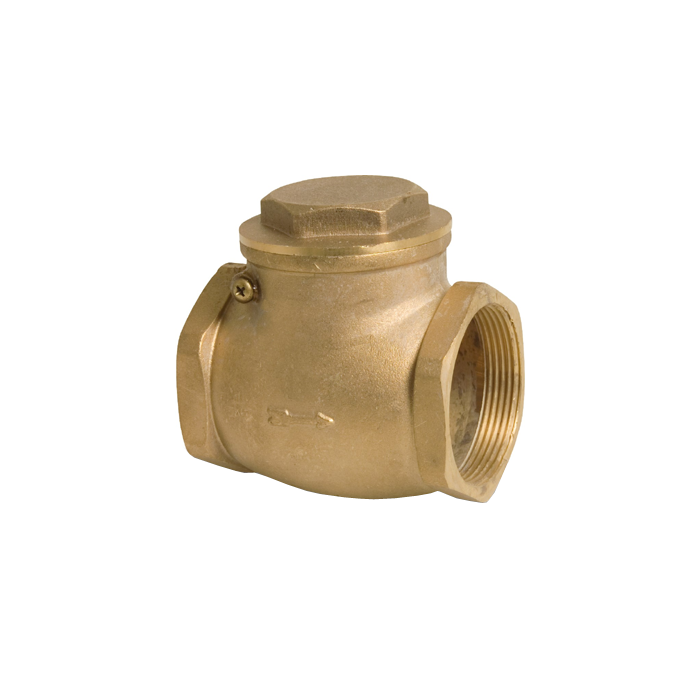

Swing Check Valves
Share this product
UK Delivery Options and Costs
Zone 1 - England, Wales and Southern Scotland
Standard Delivery (3-5 working days) - Orders Under £100 - £7.50 / Over £100 - FREE
Express Delivery (1-2 working days) - £15
Premium Next Working Day (delivery before 13.00) - £26
Zone 2 - Scottish Highlands & Islands, Northern Ireland, Isle of Man, Scilly & Channel Isles
Standard Delivery (3-5 working days) - Orders Under £100 - £15 / Over £100 - FREE
Express Delivery (2-3 working days) - £15
Zone 3 - Republic of Ireland
Please contact us for delivery charges to Republic of Ireland
Orders must be placed before 14.00 for express and premium next day delivery.
We can also offer a same day, Saturday or Sunday delivery service on many of our products. Please call us on 01777 871100 to get a price.
Some products may be exempt from some of the delivery options above. Please click the 'Delivery Info' tab on the individual product page for full details.
Please note: Off loading charges are not included for heavy and/or bulky items.
We will try our best to deliver your order on time but inevitably, there may be delays due to bad weather or road hold-ups etc...
View the full range:
Options Available
| Model | SKU | Rrp | Our Price (ex VAT) | |
|---|---|---|---|---|
| 1" Swing Check Valve | 030-0250 | £12.48 |
£12.22
£10.18
|
Loading...
Add to Basket
|
| 1-1/4" Swing Check Valve | 030-0320 | £19.50 |
£19.09
£15.91
|
Loading...
Add to Basket
|
| 1-1/2" Swing Check Valve | 030-0400 | £31.02 |
£30.38
£25.32
|
Loading...
Add to Basket
|
| 2" Swing Check Valve | 030-0500 | £42.12 |
£41.24
£34.37
|
Loading...
Add to Basket
|
| 3" Swing Check Valve | 030-0800 | £127.54 |
£124.88
£104.07
|
Loading...
Add to Basket
|
| 4" Swing Check Valve | 030-0900 | £204.76 |
£200.51
£167.09
|
Loading...
Add to Basket
|
Description
A swing check valve has a flap or disc of the same diameter as the pipe bore, which hangs down in the flow path. With flow in the forwards direction, the pressure of the fluid forces the disc to hinge upwards, allowing flow through the valve. Reverse flow will cause the disc to shut and stop the fluid going back down the pipe. In the absence of flow, the weight of the flap is responsible for the closure of the valve.
Specifications
►Maximum working pressure: 10 bar
►Maximum liquid temperature: 90°C
Materials
►Valve body: Brass
►Valve seat: EPDM
