Ebara EVMS20 (N) 400V Vertical Multistage Pumps

Ebara EVMS (N) Vertical Multistage Pump,

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

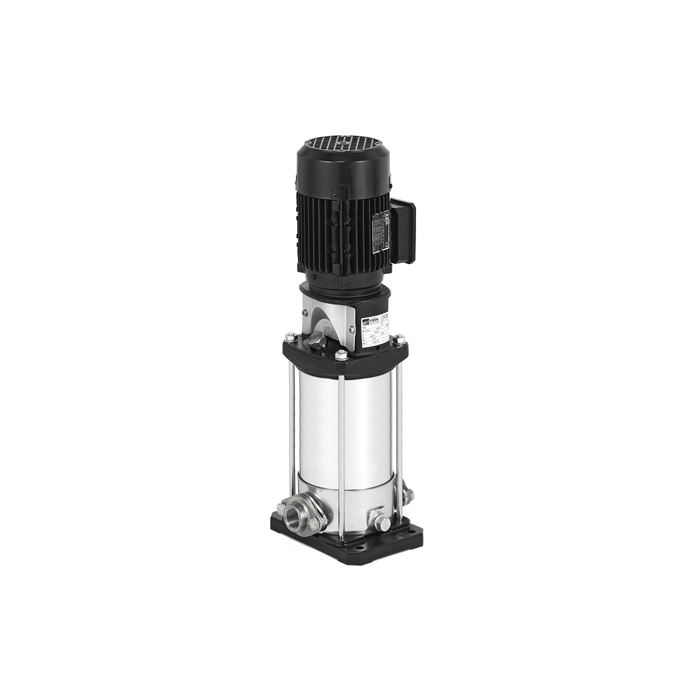

Ebara EVMS20 (N) 400V vertical multistage pumps are the highest flow rate (480l/min) of the Ebara EVMS (N) series. These robust and versatile Ebara water pumps are designed to transfer clean and coloured water in high-pressure applications and are suitable for a range of industrial and commercial uses. To further enhance the pump design, these multistage pumps come with innovative hydraulic features and energy-saving IE3 electric motors.

9 options available from £1,285.90

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
EVMS20 1N5/1.1	112-710	£1,837.00	2"	2"	1.1 kW	16.8 m	480 l/min	53	£1,543.08 £1,285.90	Loading... Add to Basket
EVMS20 2N5/3	112-711	£2,236.00	2"	2"	3 kW	33.7 m	480 l/min	53	£1,878.24 £1,565.20	Loading... Add to Basket
EVMS20 3N5/4	112-712	£2,984.00	2"	2"	4 kW	50.5 m	480 l/min	53	£2,506.56 £2,088.80	Loading... Add to Basket
EVMS20 4N5/5.5	112-713	£3,605.00	2"	2"	5.5 kW	67.4 m	480 l/min	53	£3,028.20 £2,523.50	Loading... Add to Basket
EVMS20 5N5/7.5	112-714	£3,924.00	2"	2"	7.5 kW	84.2 m	480 l/min	53	£3,296.16 £2,746.80	Loading... Add to Basket
EVMS20 6N5/7.5	112-715	£4,262.00	2"	2"	7.5 kW	101.1 m	480 l/min	53	£3,580.08 £2,983.40	Loading... Add to Basket
EVMS20 7N5/11	112-716	£4,609.00	2"	2"	11 kW	117.9 m	480 l/min	53	£3,871.56 £3,226.30	Loading... Add to Basket
EVMS20 8N5/11	112-717	£4,905.00	2"	2"	11 kW	134.7 m	480 l/min	53	£4,120.20 £3,433.50	Loading... Add to Basket
EVMS20 9N5/11	112-718	£5,053.00	2"	2"	11 kW	151.6 m	480 l/min	53	£4,244.52 £3,537.10	Loading... Add to Basket

Description

Ebara EVMS20 (N) vertical multistage pumps are the highest flow (480l/min) models of the Ebara EVMS (N) series, designed for transferring clean and clouded water. Suitable for various applications, including pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting, these multistage centrifugal pumps can be used where there is access to 400V power. These Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors to ensure high pump efficiency and provide the highest quality standards.

The beauty of these vertical multistage centrifugal pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump without any modifications. In addition, Ebara EVMS multistage centrifugal pumps have a cartridge type shaft seal, allowing for a quick and easy cartridge replacement without disassembling the motor mount (see video). These Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.

The Ebara EVMS (N) series of multistage water pumps are supplied with an oval flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.

WRAS Approved

Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
