Ebara EVMS15 (N) 400V Vertical Multistage Pumps
Share this product
UK Delivery Options and Costs
Zone 1 - England, Wales and Southern Scotland
Standard Delivery (3-5 working days) - Orders Under £100 - £7.50 / Over £100 - FREE
Express Delivery (1-2 working days) - £15
Premium Next Working Day (delivery before 13.00) - £26
Zone 2 - Scottish Highlands & Islands, Northern Ireland, Isle of Man, Scilly & Channel Isles
Standard Delivery (3-5 working days) - Orders Under £100 - £15 / Over £100 - FREE
Express Delivery (2-3 working days) - £15
Zone 3 - Republic of Ireland
Please contact us for delivery charges to Republic of Ireland
Orders must be placed before 14.00 for express and premium next day delivery.
We can also offer a same day, Saturday or Sunday delivery service on many of our products. Please call us on 01777 871100 to get a price.
Some products may be exempt from some of the delivery options above. Please click the 'Delivery Info' tab on the individual product page for full details.
Please note: Off loading charges are not included for heavy and/or bulky items.
We will try our best to deliver your order on time but inevitably, there may be delays due to bad weather or road hold-ups etc...
View the full range:
Options Available
| Model | Voltage | Motor | Inlet | Outlet | Maxflow | Maxhead | SKU | RRP | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Model: EVMS15 1N5/1.1 | Voltage: 400V | Motor: 1.1 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 14.7 m | SKU: 112-684 | RRP: £1,762.00 |
£1,233.40
£1,480.08
|
Loading...
Add to Basket
|
| Model: EVMS15 2N5/2.2 | Voltage: 400V | Motor: 2.2 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 29.5 m | SKU: 112-685 | RRP: £2,130.00 |
£1,491.00
£1,789.20
|
Loading...
Add to Basket
|
| Model: EVMS15 3N5/3 | Voltage: 400V | Motor: 3 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 44.5 m | SKU: 112-686 | RRP: £2,457.00 |
£1,719.90
£2,063.88
|
Loading...
Add to Basket
|
| Model: EVMS15 4N5/4 | Voltage: 400V | Motor: 4 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 59 m | SKU: 112-687 | RRP: £2,816.00 |
£1,971.20
£2,365.44
|
Loading...
Add to Basket
|
| Model: EVMS15 5N5/5.5 | Voltage: 400V | Motor: 5.5 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 73.5 m | SKU: 112-688 | RRP: £2,956.00 |
£2,069.20
£2,483.04
|
Loading...
Add to Basket
|
| Model: EVMS15 6N5/5.5 | Voltage: 400V | Motor: 5.5 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 88.5 m | SKU: 112-689 | RRP: £3,595.00 |
£2,516.50
£3,019.80
|
Loading...
Add to Basket
|
| Model: EVMS15 7N5/7.5 | Voltage: 400V | Motor: 7.5 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 103 m | SKU: 112-690 | RRP: £4,130.00 |
£2,891.00
£3,469.20
|
Loading...
Add to Basket
|
| Model: EVMS15 8N5/7.5 | Voltage: 400V | Motor: 7.5 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 118 m | SKU: 112-691 | RRP: £4,199.00 |
£2,939.30
£3,527.16
|
Loading...
Add to Basket
|
| Model: EVMS15 9N5/11 | Voltage: 400V | Motor: 11 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 133 m | SKU: 112-692 | RRP: £4,388.00 |
£3,071.60
£3,685.92
|
Loading...
Add to Basket
|
| Model: EVMS15 10N5/11 | Voltage: 400V | Motor: 11 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 147 m | SKU: 112-693 | RRP: £5,175.00 |
£3,622.50
£4,347.00
|
Loading...
Add to Basket
|
| Model: EVMS15 11N5/11 | Voltage: 400V | Motor: 11 kW | Inlet: 2" | Outlet: 2" | Maxflow: 400 l/min | Maxhead: 162 m | SKU: 112-694 | RRP: £5,561.00 |
£3,892.70
£4,671.24
|
Loading...
Add to Basket
|
Description

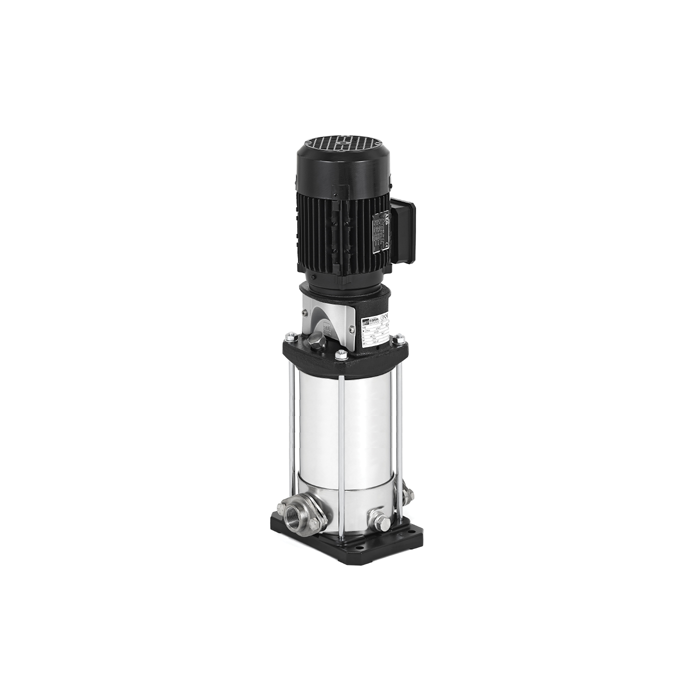

Ebara EVMS15 (N) vertical multistage pumps are the higher flow (400l/min) models of the Ebara EVMS (N) series, designed for transferring clean and clouded water. These Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors, ensuring high pump efficiency. These multistage centrifugal pumps are suitable for pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting, and can be used where there is access to 400V power.
The beauty of these vertical multistage centrifugal pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump without any modifications. In addition, Ebara EVMS multistage centrifugal pumps have a cartridge type shaft seal, allowing for a quick and easy cartridge replacement without disassembling the motor mount (see video). These Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.
The Ebara EVMS (N) series of multistage water pumps are supplied with an oval flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.
Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F
Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*
*standard version - Other seal materials available upon request.
Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
