Ebara DW Submersible Pumps With Channel Impeller

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Ebara DW submersible pumps are waste water pumps that can handle solids up to 50mm. Suitable for various applications, including remote sewage stations for housing developments, agricultural waste, pubs, hotels, restaurants and water displays, these submersible pumps can be used in fixed and mobile installations.

11 options available from £712.60

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Floatswitch	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
DWM 75	110-030	£1,018.00	NO	0.55kW	11 m	500 l/min	51	£855.12 £712.60	Loading... Add to Basket
DWM 75 A	110-031	£1,057.00	YES	0.55kW	11 m	500 l/min	51	£887.88 £739.90	Loading... Add to Basket
DWM 100	110-034	£1,183.00	NO	0.75kW	13 m	600 l/min	51	£993.72 £828.10	Loading... Add to Basket
DWM 100 A	110-035	£1,219.00	YES	0.75kW	13 m	600 l/min	51	£1,023.96 £853.30	Loading... Add to Basket
DWM 150	110-038	£1,405.00	NO	1.10kW	15 m	700 l/min	51	£1,180.20 £983.50	Loading... Add to Basket
DWM 150 A	110-039	£1,452.00	YES	1.10kW	15 m	700 l/min	51	£1,219.68 £1,016.40	Loading... Add to Basket
DW 75	110-042	£1,018.00	NO	0.55kW	11 m	500 l/min	53	£855.12 £712.60	Loading... Add to Basket
DW 100	110-044	£1,183.00	NO	0.75kW	13 m	600 l/min	53	£993.72 £828.10	Loading... Add to Basket
DW 150	110-046	£1,405.00	NO	1.10kW	15 m	700 l/min	53	£1,180.20 £983.50	Loading... Add to Basket
DW 200	110-048	£1,526.00	NO	1.50kW	18 m	800 l/min	53	£1,281.84 £1,068.20	Loading... Add to Basket
DW 300*	110-050	£1,724.00	NO	2.20kW	21 m	900 l/min	53	£1,448.16 £1,206.80	Loading... Add to Basket

Description

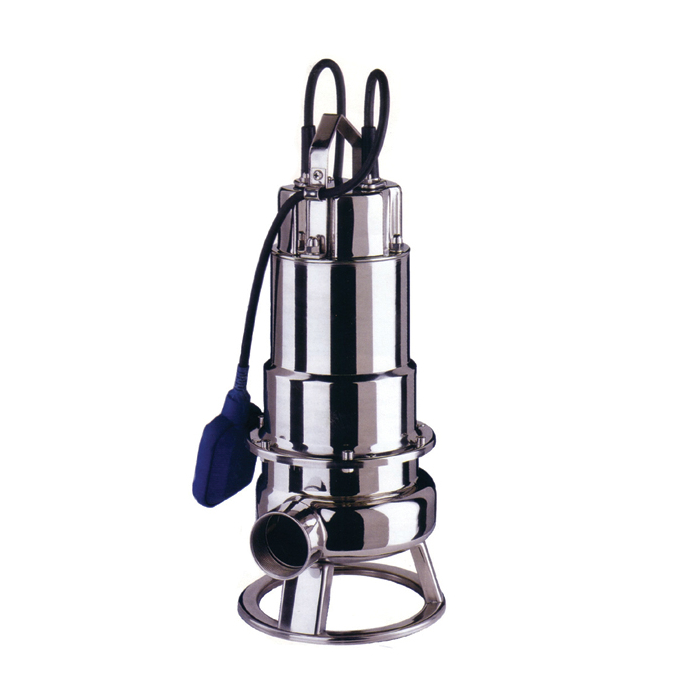

Ebara DW submersible pumps are designed for transferring wastewater containing solids up to 50mm. These Ebara electric submersible pumps come with a threaded connection for easy assembly and double mechanical seals to prevent leakage, increase service life and ensure reliability. Carefully designed to provide the highest pump quality and efficiency, these submersible pumps can be used in fixed and mobile installations. The robust hydraulic pump design, make these submersible wastewater pumps ideal for various applications including remote sewage stations for housing developments, agricultural waste, pubs, hotels, restaurants, and water displays.

The Ebara DW submersible pumps are made from corrosion-resistant stainless steel for maximum abrasion resistance and supplied with a channel impeller. Submersible sewage pumps with channel impellers are generally more efficient than vortex impellers, but it needs to be considered that they are more prone to blockage. For all sewage applications, as a leading submersible pump supplier we recommend using vortex impeller pumps in due to the minimal risk of clogging and solid handling capabilities, unless the discharge head is too high, or the pipe run is too long.

Available with or without a float switch for automatic operation, these submersible wastewater pumps are lightweight and easy to move and install, making them a perfect solution for many domestic, industrial and agricultural applications. There is also a model available with cast iron spacer.

Specifications
►Maximum liquid temperature: 40°C
►Maximum immersion depth: 7 Metres
►Maximum soft solids: 50 mm
►Outlet: 2" B.S.P. Female
►Power cable: 10 Metres
►230V pumps are fitted with UK 3 pin plug

Materials
►Pump body: AISI 304 Stainless Steel
►Impeller: AISI 304 Stainless steel

*Equipped with cast iron spacer

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the submersible wastewater pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
