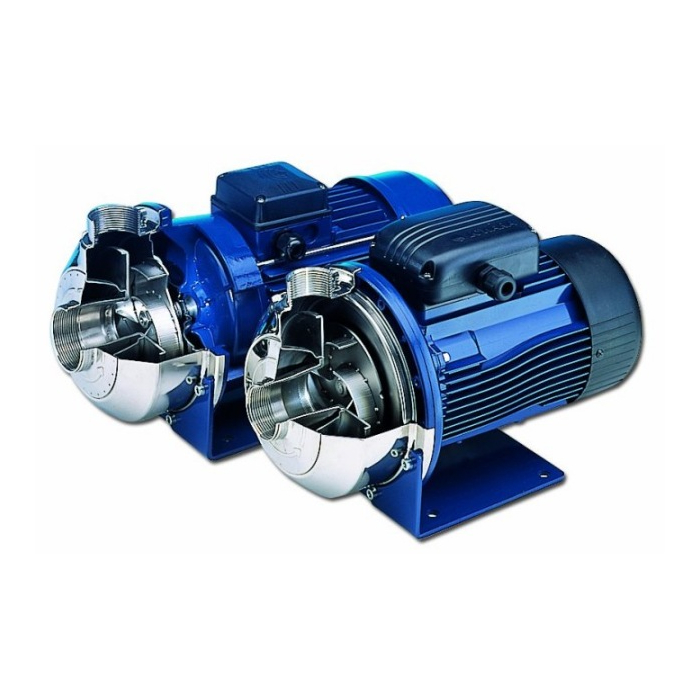

Lowara CO(M) end suction centrifugal pumps are designed for handling moderately aggressive liquids with suspended solids. Supplied with an open impeller and AISI 316 stainless steel construction, these centrifugal water pumps are suitable for hot wort transfer in the brewing industry, industrial washing plants and washing systems in the food industry.

17 options available from £1,340.50

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Maxsolid	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
COM 350/03K/A - 240V	3311-050	£1,937.00	11 mm	1-1/2"	1-1/4"	0.37 kW	9.5 m	300 l/min	51	£1,627.08 £1,355.90	Loading... Add to Basket
COM 350/05K/A - 240V	3311-051	£2,002.00	11 mm	1-1/2"	1-1/4"	0.55 kW	12 m	350 l/min	51	£1,681.68 £1,401.40	Loading... Add to Basket
COM 350/07K/A - 240V	3311-052	£2,094.00	11 mm	1-1/2"	1-1/4"	0.75 kW	13.7 m	375 l/min	51	£1,758.96 £1,465.80	Loading... Add to Basket
COM 350/09K/A - 240V	3311-053	£2,110.00	11 mm	1-1/2"	1-1/4"	0.9 kW	15.7 m	400 l/min	51	£1,772.40 £1,477.00	Loading... Add to Basket
COM 350/11K/A - 240V	3311-054	£2,656.00	11 mm	1-1/2"	1-1/4"	1.1 kW	17.3 m	450 l/min	51	£2,231.04 £1,859.20	Loading... Add to Basket
COM 350/15K/A - 240V	3311-055	£3,036.00	11 mm	1-1/2"	1-1/4"	1.5 kW	20.3 m	500 l/min	51	£2,550.24 £2,125.20	Loading... Add to Basket
COM 500/15K/A - 240V	3311-056	£3,124.00	20 mm	2"	1-1/4"	1.5 kW	16 m	700 l/min	51	£2,624.16 £2,186.80	Loading... Add to Basket
COM 500/22K/P - 240V	3311-057	£3,207.00	20 mm	2"	1-1/4"	2.2 kW	19.6 m	800 l/min	51	£2,693.88 £2,244.90	Loading... Add to Basket
CO 350/03K/A - 400V	3311-058	£1,915.00	11 mm	1-1/2"	1-1/4"	0.37 kW	9.5 m	300 l/min	53	£1,608.60 £1,340.50	Loading... Add to Basket
CO 350/05K/A - 400V	3311-059	£1,967.00	11 mm	1-1/2"	1-1/4"	0.55 kW	12 m	350 l/min	53	£1,652.28 £1,376.90	Loading... Add to Basket
CO 350/07K/A - 400V	3311-060	£2,030.00	11 mm	1-1/2"	1-1/4"	0.75 kW	13.7 m	375 l/min	53	£1,705.20 £1,421.00	Loading... Add to Basket
CO 350/09K/A - 400V	3311-061	£2,036.00	11 mm	1-1/2"	1-1/4"	0.9 kW	15.7 m	400 l/min	53	£1,710.24 £1,425.20	Loading... Add to Basket
CO 350/11K/A - 400V	3311-062	£2,464.00	11 mm	1-1/2"	1-1/4"	1.1 kW	17.3 m	450 l/min	53	£2,069.76 £1,724.80	Loading... Add to Basket
CO 350/15K/A - 400V	3311-063	£2,585.00	11 mm	1-1/2"	1-1/4"	1.5 kW	20.3 m	500 l/min	53	£2,171.40 £1,809.50	Loading... Add to Basket
CO 500/15K/A - 400V	3311-064	£2,624.00	20 mm	2"	1-1/2"	1.5 kW	16 m	700 l/min	53	£2,204.16 £1,836.80	Loading... Add to Basket
CO 500/22K/A - 400V	3311-065	£2,862.00	20 mm	2"	1-1/2"	2.2 kW	19.6 m	800 l/min	53	£2,404.08 £2,003.40	Loading... Add to Basket
CO 500/30K/P - 400V	3311-066	£2,997.00	20 mm	2"	1-1/2"	3 kW	24.1 m	900 l/min	53	£2,517.48 £2,097.90	Loading... Add to Basket

Description

Lowara CO(M) end suction centrifugal pumps are designed to transfer fluids with suspended solids up to 20mm and can handle moderately aggressive liquids. Due to their robust AISI 316 stainless steel construction and highly efficient open impeller, these Lowara end suction pumps are typically used in industrial washing plants, pumping fluids that may contain solids, e.g. washing bottles, jars, glasses and crates, process applications such as paint plants and general dirty liquid handling.

Lowara CO(M) end suction centrifugal water pumps are also commonly used as hot wort transfer pumps in the brewery industry due to their simple and low maintenance design. These single stage end suction centrifugal pumps have a robust construction and can withstand liquid temperatures of up to 120°C, making them an ideal brewery pump solution.

These centrifugal water pumps by Lowara are equipped with highly efficient PLM motors that provide higher pump efficiency, reliability and better quality. Made from corrosion resistant AISI 316 stainless steel Lowara CO(M) horizontal end suction pumps have no diffusers or cavities, which allows easier cleaning and maintenance. In addition, these end suction centrifugal water pumps have a back pull-out design, eliminating the need to disconnect the pump body from the pipeline and allowing easy pump maintenance. Supplied with FPM mechanical seal, the Lowara CO(M) are robust pumps with good resistance to heat and light chemicals.

Thanks to their compact size, these end suction water pumps are also a preferable pumping solution for installations with limited space or difficult to reach spaces. Lowara CO(M) centrifugal water pumps are available as a single-phase, and three-phase versions. The single-phase version of these horizontal end suction pumps comes as standard with automatic reset overload protection. However, for the three-phase version, we recommend installing a control panel, as overload protection must be installed separately.

Specifications
►Maximum liquid temperature: 120°C
►Maximum working pressure: 8 bar
►Maximum soft solids: 20 mm
►Maximum suction lift: 3 Metres

Materials
►Pump body: AISI 316 Stainless Steel
►Impeller: AISI 316 Stainless Steel
►Mechanical seal: SiC/Tun/FPM

Whisper Pumps have been supplying Lowara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure about the end suction centrifugal pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
