Options Available
| Model | Voltage | Power | Current | SKU | RRP | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|
| Model: DOMINO-UP M | Voltage: 230V | Power: 0.37 - 2.2 kW | Current: 2-16 A | SKU: 4639-001 | RRP: £250.00 |
£200.00
£240.00
|
Loading...
Add to Basket
|
| Model: DOMINO-UP T/10 | Voltage: 400V | Power: 0.55 - 5.5 kW | Current: 2-15 A | SKU: 4639-002 | RRP: £290.00 |
£232.00
£278.40
|
Loading...
Add to Basket
|
Description

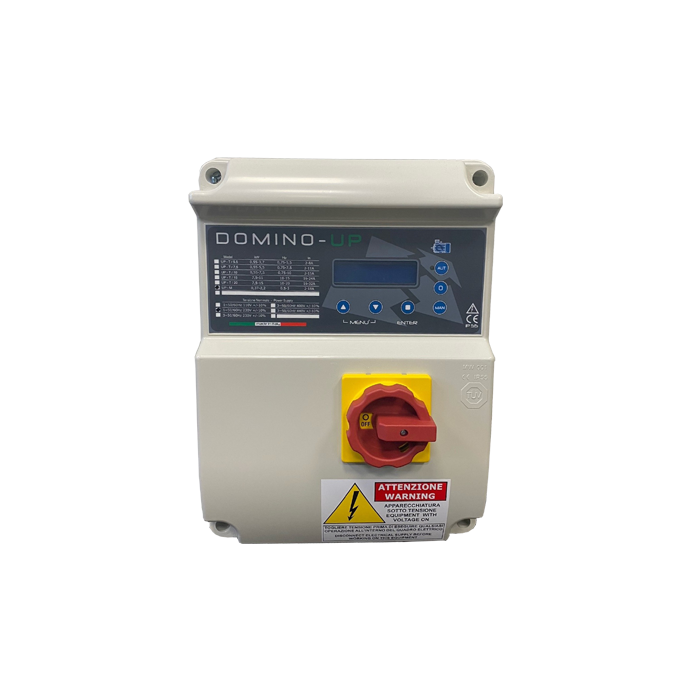

The Domino Up Pump Control Panel is designed to control and protect the electric motors of centrifugal, sump and borehole pumps from dry running via cos-φ and minimum current, as well as over/under voltage. With its IP55 enclosure, on/off switch for convenient above ground control and full LCD display showing operating scenarios, this pump control box is easy to install and very simple to operate.
As it works off minimum current or cos Ø, the Domino Up can protect the pump from dry run damage without the need for installing level switches. However, this centrifugal and borehole pump control panel benefits from 2 x inputs for float, level and pressure switches, enabling the pump to be automatically start/stopped based on the fluid level in the tank to ensure a consistent supply.
Thanks to its volt free output, the Domino Up control panel for borehole pumps and centrifugal pumps also allows for connection to an external alarm or sounder to alert the user of a minimum water level, minimum cos or overload/maximum current scenario.
This pump control box is suitable for clean and waste water applications, including sump emptying, well and borehole extraction, pressure boosting and water storage tank filling.
Domino Up Control Panel Specifications:
►For control and protection of a single pump motor
►Typically used as a centrifugal, sump or borehole pump controller
►IP55 enclosure with full LCD display
►LED for motor operating
►On/off switch for convenient, above ground control
►Over/under voltage protection
►Overload protection
►Dry run protection with automated restart
►Phase failure
►2 x inputs for float, level, pressure switch
►Volt free alarm output for dry run/minimum water level, minimum cos, overload/maximum current
►Versions for 230V and 400V
Please note: A capacitor is required for single phase Domino pump control boxes. These can be found in the Related Items at the bottom of the page or alternatively call us on 01777 871100 for support.
Applications
As a longstanding centrifugal and borehole pump control panel supplier, Whisper Pumps are highly experienced in all models. If you are unsure on the control box you require, please contact our technical sales team today on 01777 871100 for free, expert advice
