Lowara 5HM (S) Horizontal Multistage Pumps - 400V

Lowara HM (S) Horizontal Multistage Pump

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

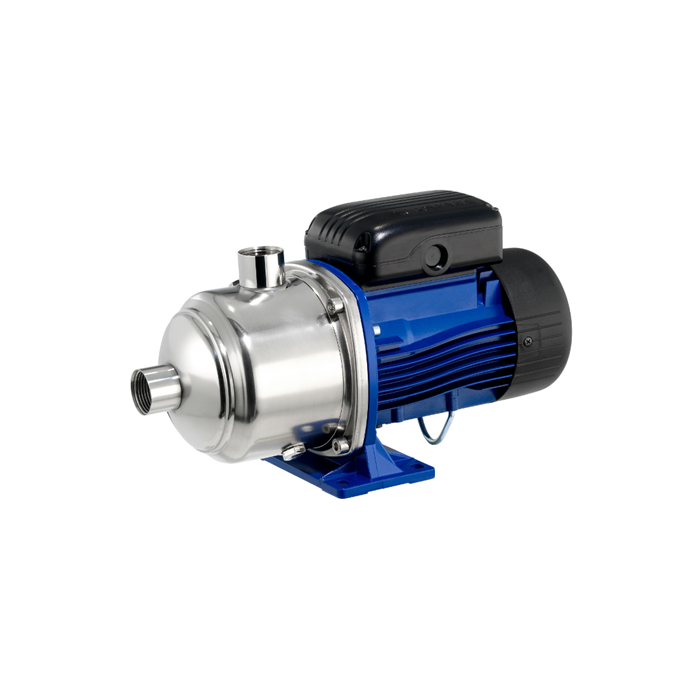

The Lowara 5HM (S) 400V multistage centrifugal pumps are the high flow (120 l/min) of the e-HM..S series designed for high pressure water pumping such as pressure boosting, irrigation, and cooling and heating applications.. These Lowara horizontal multistage pumps are supplied with AISI 304 Stainless Steel impellers and are replacements for Lowara 2HM/S and 4HM/S pumps.

17 options available from £482.30

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
5HM02S03T5RVBE	3312-1422	£689.00	1-1/4"	1"	0.3 kW	14.8 m	142 l/min	53	£578.76 £482.30	Loading... Add to Basket
5HM03S04T5RVBE	3312-1423	£694.00	1-1/4"	1"	0.4 kW	22.2 m	142 l/min	53	£582.96 £485.80	Loading... Add to Basket
5HM04S05T5RVBE	3312-1424	£800.00	1-1/4"	1"	0.5 kW	29.3 m	142 l/min	53	£672.00 £560.00	Loading... Add to Basket
5HM05S07T5RVBE	3312-1425	£973.00	1-1/4"	1"	0.75 kW	37.8 m	142 l/min	53	£817.32 £681.10	Loading... Add to Basket
5HM06S11T5RVBE	3312-1426	£1,163.00	1-1/4"	1"	1.1 kW	45.5 m	142 l/min	53	£976.92 £814.10	Loading... Add to Basket
5HM07S11T5RVBE	3312-1427	£1,476.00	1-1/4"	1"	1.1 kW	53 m	142 l/min	53	£1,239.84 £1,033.20	Loading... Add to Basket
5HM08S11T5RVBE	3312-1428	£1,552.00	1-1/4"	1"	1.1 kW	60.4 m	142 l/min	53	£1,303.68 £1,086.40	Loading... Add to Basket
5HM09S15T5RVBE	3312-1429	£1,588.00	1-1/4"	1"	1.5 kW	68.1 m	142 l/min	53	£1,333.92 £1,111.60	Loading... Add to Basket
5HM10S15T5RVBE	3312-1430	£1,699.00	1-1/4"	1"	1.5 kW	75.5 m	142 l/min	53	£1,427.16 £1,189.30	Loading... Add to Basket
5HM11S15T5RVBE	3312-1431	£1,815.00	1-1/4"	1"	1.5 kW	83 m	142 l/min	53	£1,524.60 £1,270.50	Loading... Add to Basket
5HM12S22T5RVBE	3312-1432	£1,882.00	1-1/4"	1"	2.2 kW	91 m	142 l/min	53	£1,580.88 £1,317.40	Loading... Add to Basket
5HM13S22T5RVBE	3312-1433	£1,980.00	1-1/4"	1"	2.2 kW	98.4 m	142 l/min	53	£1,663.20 £1,386.00	Loading... Add to Basket
5HM14S22T5RQBE	3312-1434	£2,415.00	1-1/4"	1"	2.2 kW	106 m	142 l/min	53	£2,028.60 £1,690.50	Loading... Add to Basket
5HM15S22T5RQBE	3312-1435	£2,495.00	1-1/4"	1"	2.2 kW	113 m	142 l/min	53	£2,095.80 £1,746.50	Loading... Add to Basket
5HM17S30T5RQBE	3312-1436	£2,734.00	1-1/4"	1"	3 kW	129 m	142 l/min	53	£2,296.56 £1,913.80	Loading... Add to Basket
5HM19S30T5RQBE	3312-1437	£2,900.00	1-1/4"	1"	3 kW	144 m	142 l/min	53	£2,436.00 £2,030.00	Loading... Add to Basket
5HM21S30T5RQBE	3312-1438	£3,045.00	1-1/4"	1"	3 kW	159 m	142 l/min	53	£2,557.80 £2,131.50	Loading... Add to Basket

Description

The Lowara 5HM (S) multistage centrifugal pumps are the high flow (120 l/min) of the e-HM..S series designed for high pressure water pumping. Supplied with AISI 304 Stainless Steel impellers, these Lowara horizontal multistage pumps are used where there is access to 400V power; you can view the 230V motor versions here. Typical applications for these horizontal multistage centrifugal pumps are water supply, pressure boosting and cooling for residential and commercial properties, and industrial applications, including washing, irrigation and water transfer.

These multistage water pumps have a compact, close-coupled design, which makes them a perfect solution for restricted space installations. In addition, these multistage centrifugal pumps are supplied with balanced impellers that decrease the axial thrust and extend the pump service lifetime. Another benefit of these horizontal multistage centrifugal pumps is that they come with a thick sheet metal pump body to keep the pump noise level to a minimum and ensure very quiet operation.

The modern and robust Lowara 5HM (S) horizontal multistage pumps offer multiple benefits, including state-of-the-art hydraulics that provide best-in-class efficiency and long service life. To ensure highly efficient operation, these horizontal multistage centrifugal pumps are equipped with an IE3 motor, which provides efficiency of up to 72%, resulting in 30% energy saving on average compared to similar pump designs on the market. This makes the Lowara e-HM..S multistage centrifugal pumps a preferable choice in terms of energy savings performances and low operating costs.

Lowara e-HM multistage pumps range is a replacement pump for the discontinued models 2HM/S and 4HM/S pumps. Please contact us to find out the exact pump replacement for your application.

Specifications
►Maximum operating pressure: 16 bar
►400V
►120 l/min
►AISI 304 Stainless steel pump body and diffuser
►AISI 304 Stainless Steel impellers
►Highly efficient Lowara IE3 motor
►Compact close-coupled design

Please note that e-HM horizontal multistage pumps are also available in 2 other material executions, including:
e-HM..P multistage pump - Technopolymer impellers
e-HM..N multistage pump - Full AISI 316 stainless steel construction - Contact us if required.

WRAS Approved

If you are unsure which Lowara multistage water pump is right for your application, contact our technical sales engineers today. As a Lowara pump supplier for over 25 years, our technical experts will be able to support you and specify the right solution for your application.
