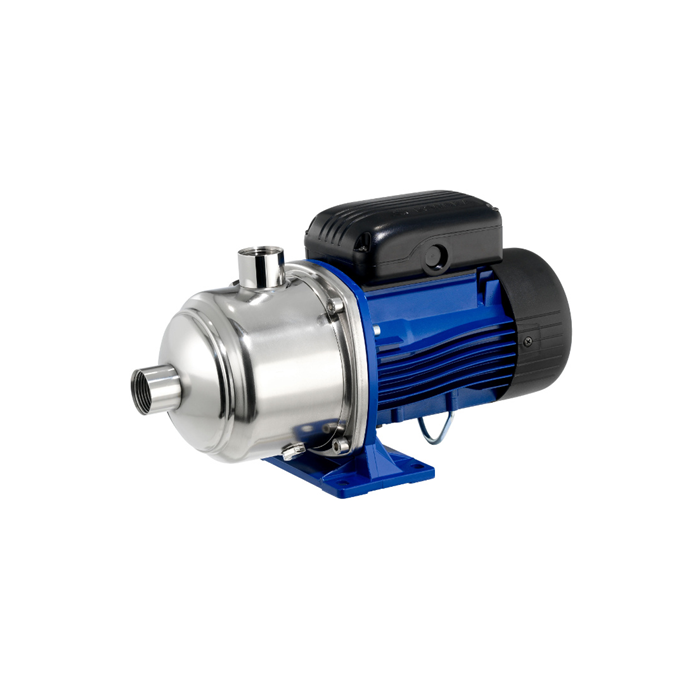

Lowara 5HM (S) Horizontal Multistage Pumps - 230V

Lowara HM (S) Horizontal Multistage Pump

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

The Lowara 5HM (S) 230V horizontal multistage pumps are the high flow (120 l/min) of the e-HM..S series designed for high pressure water pumping such as pressure boosting, irrigation, and cooling and heating applications. These Lowara multistage centrifugal pumps are supplied with AISI 304 Stainless Steel impellers and are replacements for Lowara 2HM/S and 4HM/S pumps.

15 options available from £479.50

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
5HM02S05M5HVBE	3312-1366	£685.00	1-1/4"	1"	0.5 kW	14.9 m	142 l/min	51	£575.40 £479.50	Loading... Add to Basket
5HM03S05M5HVBE	3312-1367	£770.00	1-1/4"	1"	0.5 kW	22.1 m	142 l/min	51	£646.80 £539.00	Loading... Add to Basket
5HM04S05M5HVBE	3312-1368	£890.00	1-1/4"	1"	0.5 kW	29.2 m	142 l/min	51	£747.60 £623.00	Loading... Add to Basket
5HM05S07M5HVBE	3312-1369	£1,141.00	1-1/4"	1"	0.75 kW	37.1 m	142 l/min	51	£958.44 £798.70	Loading... Add to Basket
5HM06S07M5HVBE	3312-1370	£1,414.00	1-1/4"	1"	0.75 kW	44.2 m	142 l/min	51	£1,187.76 £989.80	Loading... Add to Basket
5HM07S09M5HVBE	3312-1371	£1,854.00	1-1/4"	1"	0.95 kW	51.6 m	142 l/min	51	£1,557.36 £1,297.80	Loading... Add to Basket
5HM08S09M5HVBE	3312-1372	£1,866.00	1-1/4"	1"	0.95 kW	58.8 m	142 l/min	51	£1,567.44 £1,306.20	Loading... Add to Basket
5HM09S11M5HVBE	3312-1373	£1,883.00	1-1/4"	1"	1.1 kW	66.9 m	142 l/min	51	£1,581.72 £1,318.10	Loading... Add to Basket
5HM10S15M5HVBE	3312-1374	£2,073.00	1-1/4"	1"	1.5 kW	74.7 m	142 l/min	51	£1,741.32 £1,451.10	Loading... Add to Basket
5HM11S15M5HVBE	3312-1375	£2,289.00	1-1/4"	1"	1.5 kW	82 m	142 l/min	51	£1,922.76 £1,602.30	Loading... Add to Basket
5HM12S15M5HVBE	3312-1376	£2,350.00	1-1/4"	1"	1.5 kW	89.3 m	142 l/min	51	£1,974.00 £1,645.00	Loading... Add to Basket
5HM13S22M5HVBE	3312-1377	£2,459.00	1-1/4"	1"	2.2 kW	97.7 m	142 l/min	51	£2,065.56 £1,721.30	Loading... Add to Basket
5HM14S22M5HQBE	3312-1378	£2,728.00	1-1/4"	1"	2.2 kW	105 m	142 l/min	51	£2,291.52 £1,909.60	Loading... Add to Basket
5HM15S22M5HQBE	3312-1379	£2,828.00	1-1/4"	1"	2.2 kW	112 m	142 l/min	51	£2,375.52 £1,979.60	Loading... Add to Basket
5HM17S22M5HQBE	3312-1380	£2,978.00	1-1/4"	1"	2.2 kW	127 m	142 l/min	51	£2,501.52 £2,084.60	Loading... Add to Basket

Description

The Lowara 5HM (S) multistage centrifugal pumps are the high flow (120 l/min) of the e-HM..S series designed for high pressure water pumping. Supplied with AISI 304 Stainless Steel impellers, these Lowara horizontal multistage pumps are used where there is access to 230V power; you can view the 400V motor versions here. Typical applications for these horizontal multistage centrifugal pumps are water supply, pressure boosting and cooling for residential and commercial properties, and industrial applications, including washing, irrigation and water transfer.

These multistage water pumps have a compact, close-coupled design, which makes them a perfect solution for restricted space installations. The beauty of the Lowara e-HM..S multistage centrifugal pumps is that they come with a thick sheet metal pump body to keep the pump noise level to a minimum and ensure very quiet operation. In addition, these horizontal multistage centrifugal pumps come with balanced impellers that decrease the axial thrust and extend the pump service lifetime.

The modern and robust Lowara 5HM (S) horizontal multistage pumps offer multiple benefits, including state-of-the-art hydraulics that provide best-in-class efficiency and long service life. To ensure highly efficient operation, these Lowara multistage centrifugal pumps are equipped with an IE3 motor, which provides efficiency up to 72%, resulting in 30% energy saving on average compared to similar pump designs from the market. This makes these horizontal multistage centrifugal pumps a preferable choice in terms of energy savings performances and low operating costs.

Lowara e-HM multistage water pumps range is a replacement pump for the discontinued models 2HM/S and 4HM/S pumps. Please contact us to find out the exact pump replacement for your application.

Specifications
►Maximum operating pressure: 16 bar
►230V
►120 l/min
►AISI 304 Stainless steel pump body and diffuser
►AISI 304 Stainless Steel impellers
►Highly efficient Lowara IE3 motor
►Compact close-coupled design

Please note that e-HM multistage centrifugal pumps are also available in 2 other material executions, including:
e-HM..P multistage pump - Technopolymer impellers
e-HM..N multistage pump- Full AISI 316 stainless steel construction - Contact us if required.

WRAS Approved

If you are unsure which Lowara horizontal multistage pump is right for your application, contact our technical sales engineers today. As a Lowara pump supplier for over 25 years, our technical experts will be able to support you and specify the right solution for your application.
