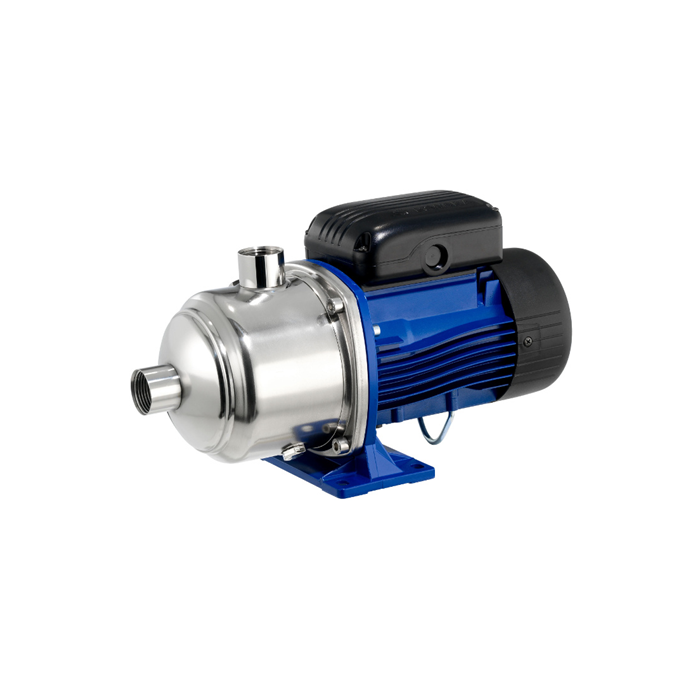

Lowara 3HM (S) Horizontal Multistage Pumps - 400V

Lowara HM (S) Horizontal Multistage Pump

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

The Lowara 3HM (S) 400V multistage centrifugal pumps are the middle flow rate (70 l/min) of the e-HM..S series designed for high pressure water pumping such as pressure boosting, irrigation, and cooling and heating applications. These Lowara horizontal multistage pumps are supplied with AISI 304 Stainless Steel impellers and are replacements for Lowara 2HM/S and 4HM/S pumps.

17 options available from £434.70

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
3HM02S03T5RVBE	3312-1405	£621.00	1"	1"	0.3 kW	14.9 m	73 l/min	53	£521.64 £434.70	Loading... Add to Basket
3HM03S03T5RVBE	3312-1406	£675.00	1"	1"	0.3 kW	22.1 m	73 l/min	53	£567.00 £472.50	Loading... Add to Basket
3HM04S03T5RVBE	3312-1407	£739.00	1"	1"	0.3 kW	29.1 m	73 l/min	53	£620.76 £517.30	Loading... Add to Basket
3HM05S04T5RVBE	3312-1408	£800.00	1"	1"	0.4 kW	36.8 m	73 l/min	53	£672.00 £560.00	Loading... Add to Basket
3HM06S05T5RVBE	3312-1409	£865.00	1"	1"	0.5 kW	43.8 m	73 l/min	53	£726.60 £605.50	Loading... Add to Basket
3HM07S07T5RVBE	3312-1410	£973.00	1"	1"	0.75 kW	53.1 m	73 l/min	53	£817.32 £681.10	Loading... Add to Basket
3HM08S07T5RVBE	3312-1411	£1,067.00	1"	1"	0.75 kW	60.5 m	73 l/min	53	£896.28 £746.90	Loading... Add to Basket
3HM09S11T5RVBE	3312-1412	£1,196.00	1"	1"	1.1 kW	68.5 m	73 l/min	53	£1,004.64 £837.20	Loading... Add to Basket
3HM10S11T5RVBE	3312-1413	£1,206.00	1"	1"	1.1 kW	75.9 m	73 l/min	53	£1,013.04 £844.20	Loading... Add to Basket
3HM11S11T5RVBE	3312-1414	£1,268.00	1"	1"	1.1 kW	83.3 m	73 l/min	53	£1,065.12 £887.60	Loading... Add to Basket
3HM12S11T5RVBE	3312-1415	£1,373.00	1"	1"	1.1 kW	90.7 m	73 l/min	53	£1,153.32 £961.10	Loading... Add to Basket
3HM13S11T5RVBE	3312-1416	£1,530.00	1"	1"	1.1 kW	98.1 m	73 l/min	53	£1,285.20 £1,071.00	Loading... Add to Basket
3HM14S15T5RQBE	3312-1417	£1,620.00	1"	1"	1.5 kW	106 m	73 l/min	53	£1,360.80 £1,134.00	Loading... Add to Basket
3HM16S15T5RQBE	3312-1418	£1,653.00	1"	1"	1.5 kW	121 m	73 l/min	53	£1,388.52 £1,157.10	Loading... Add to Basket
3HM17S15T5RQBE	3312-1419	£1,684.00	1"	1"	1.5 kW	128 m	73 l/min	53	£1,414.56 £1,178.80	Loading... Add to Basket
3HM19S22T5RQQE	3312-1420	£2,163.00	1"	1"	2.2 kW	144 m	73 l/min	53	£1,816.92 £1,514.10	Loading... Add to Basket
3HM21S22T5RQQE	3312-1421	£2,262.00	1"	1"	2.2 kW	159 m	73 l/min	53	£1,900.08 £1,583.40	Loading... Add to Basket

Description

The Lowara 3HM (S) multistage centrifugal pumps are the middle flow rate (70 l/min) of the e-HM..S series designed for high pressure water pumping. Supplied with AISI 304 Stainless Steel impellers, these Lowara horizontal multistage pumps are commonly used for water supply, pressure boosting and cooling for residential and commercial properties, and industrial applications, including washing, irrigation and water transfer where there is access to 400V power. You can view the 230V motor versions here.

These multistage water pumps have a compact, close-coupled design, which makes them a perfect solution for restricted space installations. In addition, the Lowara horizontal multistage pumps are supplied with balanced impellers that decrease the axial thrust and extend the pump service lifetime. The beauty of these multistage centrifugal pumps is that they come with a thick sheet metal pump body to keep the pump noise level to a minimum and ensure very quiet operation.

These modern and robust Lowara 3HM (S) horizontal multistage pumps offer multiple benefits, including state-of-the-art hydraulics that provide best-in-class efficiency and long service life. To ensure further efficient operation, the Lowara e-HM..S multistage centrifugal pumps are equipped with an IE3 motor, which provides efficiency up to 72%, resulting in 30% energy saving on average compared to similar pump designs on the market. The highly efficient Lowara pump motor makes these horizontal multistage centrifugal pumps a preferable choice in terms of energy savings performances and low operating costs.

Lowara e-HM multistage centrifugal pump range is a replacement pump for the discontinued models 2HM/S and 4HM/S pumps. Please contact us to find out the exact pump replacement for your application.

Specifications
►Maximum operating pressure: 16 bar
►400V
►70 l/min
►AISI 304 Stainless steel pump body and diffuser
►AISI 304 Stainless Steel impellers
►Highly efficient Lowara IE3 motor
►Compact close-coupled design

Please note that e-HM horizontal multistage centrifugal pumps are also available in 2 other material executions, including:
e-HM..P multistage pump - Technopolymer impellers
e-HM..N multistage pump - Full AISI 316 stainless steel construction - Contact us if required.

WRAS Approved

If you are unsure which Lowara multistage pump is right for your application, contact our technical sales engineers today. As a Lowara pump supplier for over 25 years, our technical experts will be able to support you and specify the right solution for your application.
