Hydrodrive Water Pressure Booster Pumps

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

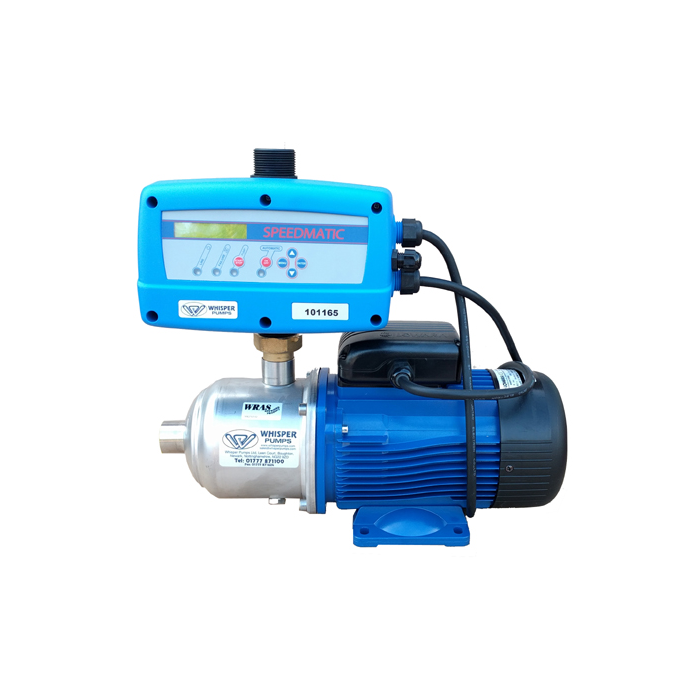

The Hydrodrive water pressure boosters are self priming Lowara booster pumps controlled by an energy efficient Speedmatic inverter drive to constantly adjust the speed of the pump as demand on the water supply fluctuates to provide constant pressure.

6 options available from £698.50

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
Hydrodrive HM 305P	819-048	£1,270.00	1"	1-1/4"	0.75 kW	60 m	70 l/min	51	£838.20 £698.50	Loading... Add to Basket
Hydrodrive HM 309S	819-060	£1,634.55	1"	1-1/4"	1.10 kW	68.5 m	73 l/min	51	£1,078.80 £899.00	Loading... Add to Basket
Hydrodrive HM 506S	819-061	£1,634.55	1-1/4"	1-1/4"	1.10 kW	45.5 m	142 l/min	51	£1,078.80 £899.00	Loading... Add to Basket
Hydrodrive HM 510S	819-062	£2,180.00	1-1/4"	1-1/4"	1.50 kW	75.5 m	142 l/min	51	£1,438.80 £1,199.00	Loading... Add to Basket
Hydrodrive HM 512S	819-063	£2,361.82	1-1/4"	1-1/4"	2.20 kW	91 m	142 l/min	51	£1,558.80 £1,299.00	Loading... Add to Basket
Hydrodrive HM 1006S	819-064	£2,361.82	1-1/2"	1-1/4"	2.20 kW	72.4 m	233 l/min	51	£1,558.80 £1,299.00	Loading... Add to Basket

Description

This highly popular model is designed for increasing water pressure in homes, offices, industrial plants and for crop and lawn irrigation. Hydrodrive pressure boosting pumps can draw water from a storage tank or well up to 8 metres deep when fitted with an optional foot valve.

Thanks to the integration of the Speedmatic inverter driver, these water pressure boosting pumps are able to provide the user with constant water pressure with up to 70% energy savings compared to conventional units.

An additional benefit of the Hydrodrive water pressure booster pump design is its dry run protection. In the event of the water supply failing during operation, the pump automatically shuts down to prevent damage to the pump and once the water supply is restored, automatically restarts.

Specifications
►Maximum liquid temperature: 40°C
►Maximum suction lift: 8 Metres
►Speedmatic inverter drive for variable speed
►IE3 efficency class electric motors
►Wras approved components

Advantages
►Constant pressure regardless of demand
►Up to 70% energy saving over conventional units
►Dry run protection with auto re-start
►Very quiet operation

Applications
►Houses
►Offices
►Industrial plants
►Irrigation
►Livestock farms

We supply a Hydraulic Kit which fits directly to the Speedmatic controller outlet and absorbs thermal expansion in the distribution pipework system. It also prevents repeated stop/start cycling of the pump in very low demand situations. i.e. dripping taps or ball cocks. Scroll down to purchase the Hydraulic Kit in 'Related Products' below.

As a leading water pump supplier, if you are unsure on the pressure boosting pump model you require we can help. Please contact our technical sales team today on 01777 871100 for free, expert advice.
