Grundfos SP Borehole Pumps - 400v

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

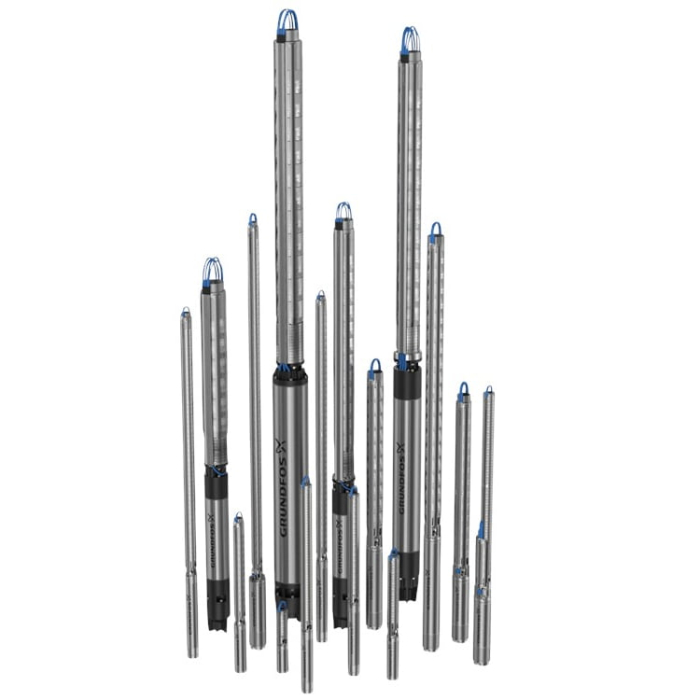

The Grundfos SP borehole pumps are designed for pumping water from 4” wells and boreholes where there is access to 400V power. These submersible borehole water pumps are popular for applications including water supply, irrigation and pressure boosting.

80 options available from £850.40

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
SP1A-9 - 0.37 kW	3913-094	£1,093.00	1-1/4"	0.37 kW	52 m	25 l/min	53	£1,049.28 £874.40	Loading... Add to Basket
SP1A-14 - 0.37 kW	3913-095	£1,218.00	1-1/4"	0.37 kW	80 m	25 l/min	53	£1,169.28 £974.40	Loading... Add to Basket
SP1A-18 - 0.55 kW	3913-096	£1,298.00	1-1/4"	0.55 kW	105 m	25 l/min	53	£1,246.08 £1,038.40	Loading... Add to Basket
SP1A-21 - 0.55 kW	3913-097	£1,353.00	1-1/4"	0.55 kW	120 m	25 l/min	53	£1,298.88 £1,082.40	Loading... Add to Basket
SP1A-28 - 0.75 kW	3913-098	£1,517.00	1-1/4"	0.75 kW	160 m	25 l/min	53	£1,456.32 £1,213.60	Loading... Add to Basket
SP1A-36 - 1.10 kW	3913-099	£3,148.00	1-1/4"	1.10 kW	197 m	25 l/min	53	£3,022.08 £2,518.40	Loading... Add to Basket
SP1A-42 - 1.10 kW	3913-100	£3,148.00	1-1/4"	1.10 kW	227 m	25 l/min	53	£3,022.08 £2,518.40	Loading... Add to Basket
SP1A-50 - 1.50 kW	3913-101	£3,650.00	1-1/4"	1.50 kW	273 m	25 l/min	53	£3,504.00 £2,920.00	Loading... Add to Basket
SP1A-57 - 1.50 kW	3913-102	£3,967.00	1-1/4"	1.50 kW	310 m	25 l/min	53	£3,808.32 £3,173.60	Loading... Add to Basket
SP2A-6 - 0.37 kW	3913-103	£1,063.00	1-1/4"	0.37 kW	35 m	45 l/min	53	£1,020.48 £850.40	Loading... Add to Basket
SP2A-9 - 0.37 kW	3913-104	£1,118.00	1-1/4"	0.37 kW	52 m	45 l/min	53	£1,073.28 £894.40	Loading... Add to Basket
SP2A-13 - 0.55 kW	3913-105	£1,232.00	1-1/4"	0.55 kW	77 m	45 l/min	53	£1,182.72 £985.60	Loading... Add to Basket
SP2A-18 - 0.75 kW	3913-106	£1,356.00	1-1/4"	0.75 kW	106 m	45 l/min	53	£1,301.76 £1,084.80	Loading... Add to Basket
SP2A-23 - 1.10 kW	3913-107	£1,533.00	1-1/4"	1.10 kW	136 m	45 l/min	53	£1,471.68 £1,226.40	Loading... Add to Basket
SP2A-28 - 1.50 kW	3913-108	£1,721.00	1-1/4"	1.50 kW	166 m	45 l/min	53	£1,652.16 £1,376.80	Loading... Add to Basket
SP2A-33 - 1.50 kW	3913-109	£1,812.00	1-1/4"	1.50 kW	195 m	45 l/min	53	£1,739.52 £1,449.60	Loading... Add to Basket
SP2A-40 - 2.20 kW	3913-110	£3,367.00	1-1/4"	2.20 kW	241 m	45 l/min	53	£3,232.32 £2,693.60	Loading... Add to Basket
SP2A-48 - 2.20 kW	3913-113	£3,777.00	1-1/4"	2.20 kW	290 m	45 l/min	53	£3,625.92 £3,021.60	Loading... Add to Basket
SP2A-55 - 3.00 kW	3913-114	£4,562.00	1-1/4"	3.00 kW	332 m	45 l/min	53	£4,379.52 £3,649.60	Loading... Add to Basket
SP2A-65 - 3.00 kW	3913-115	£5,153.00	1-1/4"	3.00 kW	390 m	45 l/min	53	£4,946.88 £4,122.40	Loading... Add to Basket
SP3A-6 - 0.37 kW	3913-116	£1,163.00	1-1/4"	0.37 kW	37 m	73 l/min	53	£1,116.48 £930.40	Loading... Add to Basket
SP3A-9 - 0.55 kW	3913-117	£1,229.00	1-1/4"	0.55 kW	55 m	73 l/min	53	£1,179.84 £983.20	Loading... Add to Basket
SP3A-12 - 0.75 kW	3913-118	£1,360.00	1-1/4"	0.75 kW	74 m	73 l/min	53	£1,305.60 £1,088.00	Loading... Add to Basket
SP3A-15 - 1.10 kW	3913-119	£1,510.00	1-1/4"	1.10 kW	92 m	73 l/min	53	£1,449.60 £1,208.00	Loading... Add to Basket
SP3A-18 - 1.10 kW	3913-120	£1,568.00	1-1/4"	1.10 kW	110 m	73 l/min	53	£1,505.28 £1,254.40	Loading... Add to Basket
SP3A-22 - 1.50 kW	3913-121	£1,747.00	1-1/4"	1.50 kW	135 m	73 l/min	53	£1,677.12 £1,397.60	Loading... Add to Basket
SP3A-25 - 1.50 kW	3913-122	£1,809.00	1-1/4"	1.50 kW	152 m	73 l/min	53	£1,736.64 £1,447.20	Loading... Add to Basket
SP3A-29 - 2.20 kW	3913-123	£2,054.00	1-1/4"	2.20 kW	180 m	73 l/min	53	£1,971.84 £1,643.20	Loading... Add to Basket
SP3A-33 - 2.20 kW	3913-124	£2,216.00	1-1/4"	2.20 kW	205 m	73 l/min	53	£2,127.36 £1,772.80	Loading... Add to Basket
SP3A-39 - 3.00 kW	3913-125	£4,096.00	1-1/4"	3.00 kW	240 m	73 l/min	53	£3,932.16 £3,276.80	Loading... Add to Basket
SP3A-45 - 3.00 kW	3913-126	£4,389.00	1-1/4"	3.00 kW	275 m	73 l/min	53	£4,213.44 £3,511.20	Loading... Add to Basket
SP3A-52 - 4.00 kW	3913-127	£4,921.00	1-1/4"	4.00 kW	320 m	73 l/min	53	£4,724.16 £3,936.80	Loading... Add to Basket
SP3A-60 - 4.00 kW	3913-128	£5,456.00	1-1/4"	4.00 kW	366 m	73 l/min	53	£5,237.76 £4,364.80	Loading... Add to Basket
SP5A-4 - 0.37 kW	3913-129	£1,166.00	1-1/2"	0.37 kW	25 m	113 l/min	53	£1,119.36 £932.80	Loading... Add to Basket
SP5A-6 - 0.55 kW	3913-130	£1,214.00	1-1/2"	0.55 kW	38 m	113 l/min	53	£1,165.44 £971.20	Loading... Add to Basket
SP5A-8 - 0.75 kW	3913-131	£1,326.00	1-1/2"	0.75 kW	50 m	113 l/min	53	£1,272.96 £1,060.80	Loading... Add to Basket
SP5A-12 - 1.10 kW	3913-132	£1,498.00	1-1/2"	1.10 kW	72 m	113 l/min	53	£1,438.08 £1,198.40	Loading... Add to Basket
SP5A-17 - 1.50 kW	3913-133	£1,698.00	1-1/2"	1.50 kW	103 m	113 l/min	53	£1,630.08 £1,358.40	Loading... Add to Basket
SP5A-21 - 2.20 kW	3913-134	£1,947.00	1-1/2"	2.20 kW	130 m	113 l/min	53	£1,869.12 £1,557.60	Loading... Add to Basket
SP5A-25 - 2.20 kW	3913-135	£2,030.00	1-1/2"	2.20 kW	155 m	113 l/min	53	£1,948.80 £1,624.00	Loading... Add to Basket
SP5A-33 - 3.00 kW	3913-136	£2,686.00	1-1/2"	3.00 kW	202 m	113 l/min	53	£2,578.56 £2,148.80	Loading... Add to Basket
SP5A-38 - 4.00 kW	3913-137	£4,921.00	1-1/2"	4.00 kW	240 m	113 l/min	53	£4,724.16 £3,936.80	Loading... Add to Basket
SP5A-44 - 4.00 kW	3913-140	£5,318.00	1-1/2"	4.00 kW	270 m	113 l/min	53	£5,105.28 £4,254.40	Loading... Add to Basket
SP5A-52 - 5.50 kW	3913-141	£6,645.00	1-1/2"	5.50 kW	320 m	113 l/min	53	£6,379.20 £5,316.00	Loading... Add to Basket
SP5A-60 - 5.50 kW	3913-142	£7,175.00	1-1/2"	5.50 kW	370 m	113 l/min	53	£6,888.00 £5,740.00	Loading... Add to Basket
SP9-5 - 1.10 kW	3913-143	£1,599.00	2"	1.10 kW	33 m	192 l/min	53	£1,535.04 £1,279.20	Loading... Add to Basket
SP9-8 - 1.50 kW	3913-144	£2,034.00	2"	1.50 kW	52 m	192 l/min	53	£1,952.64 £1,627.20	Loading... Add to Basket
SP9-11 - 2.20 kW	3913-145	£2,540.00	2"	2.20 kW	70 m	192 l/min	53	£2,438.40 £2,032.00	Loading... Add to Basket
SP9-13 - 3.00 kW	3913-146	£3,256.00	2"	3.00 kW	84 m	192 l/min	53	£3,125.76 £2,604.80	Loading... Add to Basket
SP9-16 - 3.00 kW	3913-147	£3,594.00	2"	3.00 kW	103 m	192 l/min	53	£3,450.24 £2,875.20	Loading... Add to Basket
SP9-18 - 4.00 kW	3913-148	£4,005.00	2"	4.00 kW	117 m	192 l/min	53	£3,844.80 £3,204.00	Loading... Add to Basket
SP9-21 - 4.00 kW	3913-149	£4,346.00	2"	4.00 kW	135 m	192 l/min	53	£4,172.16 £3,476.80	Loading... Add to Basket
SP9-23 - 5.50 kW	3913-150	£5,119.00	2"	5.50 kW	149 m	192 l/min	53	£4,914.24 £4,095.20	Loading... Add to Basket
SP9-25 - 5.50 kW	3913-151	£5,343.00	2"	5.50 kW	162 m	192 l/min	53	£5,129.28 £4,274.40	Loading... Add to Basket
SP9-29 - 5.50 kW	3913-159	£5,789.00	2"	5.50 kW	187 m	192 l/min	53	£5,557.44 £4,631.20	Loading... Add to Basket
SP9-32 - 7.50 kW	3913-160	£7,042.00	2"	7.50 kW	207 m	192 l/min	53	£6,760.32 £5,633.60	Loading... Add to Basket
SP9-36 - 7.50 kW	3913-161	£7,512.00	2"	7.50 kW	231 m	192 l/min	53	£7,211.52 £6,009.60	Loading... Add to Basket
SP9-40 - 7.50 kW	3913-162	£7,961.00	2"	7.50 kW	257 m	192 l/min	53	£7,642.56 £6,368.80	Loading... Add to Basket
SP9-44 - 9.20 kW	3913-163	£9,201.00	2"	9.20 kW	283 m	192 l/min	53	£8,832.96 £7,360.80	Loading... Add to Basket
SP9-48 - 9.20 kW	3913-164	£9,651.00	2"	9.20 kW	308 m	192 l/min	53	£9,264.96 £7,720.80	Loading... Add to Basket
SP9-52 - 11.00 kW	3913-165	£10,202.00	2"	11.00 kW	335 m	192 l/min	53	£9,793.92 £8,161.60	Loading... Add to Basket
SP11-3 - 0.75 kW	3913-166	£1,336.00	1-1/2"	0.75 kW	18 m	237 l/min	53	£1,282.56 £1,068.80	Loading... Add to Basket
SP11-5 - 1.10 kW	3913-167	£1,648.00	1-1/2"	1.10 kW	29 m	237 l/min	53	£1,582.08 £1,318.40	Loading... Add to Basket
SP11-7 - 1.50 kW	3913-168	£1,986.00	1-1/2"	1.50 kW	42 m	237 l/min	53	£1,906.56 £1,588.80	Loading... Add to Basket
SP11-11 - 2.20 kW	3913-169	£2,641.00	1-1/2"	2.20 kW	66 m	237 l/min	53	£2,535.36 £2,112.80	Loading... Add to Basket
SP11-15 - 3.00 kW	3913-170	£3,627.00	1-1/2"	3.00 kW	88 m	237 l/min	53	£3,481.92 £2,901.60	Loading... Add to Basket
SP11-20 - 4.00 kW	3913-171	£4,421.00	1-1/2"	4.00 kW	118 m	237 l/min	53	£4,244.16 £3,536.80	Loading... Add to Basket
SP11-24 - 5.50 kW	3913-172	£5,101.00	1-1/2"	5.50 kW	144 m	237 l/min	53	£4,896.96 £4,080.80	Loading... Add to Basket
SP11-28 - 5.50 kW	3913-173	£5,464.00	1-1/2"	5.50 kW	166 m	237 l/min	53	£5,245.44 £4,371.20	Loading... Add to Basket
SP11-33 - 7.50 kW	3913-174	£7,107.00	1-1/2"	7.50 kW	196 m	237 l/min	53	£6,822.72 £5,685.60	Loading... Add to Basket
SP14-4 - 1.10 kW	3913-175	£1,555.00	2"	1.10 kW	24 m	300 l/min	53	£1,492.80 £1,244.00	Loading... Add to Basket
SP14-6 - 1.50 kW	3913-176	£1,912.00	2"	1.50 kW	37 m	300 l/min	53	£1,835.52 £1,529.60	Loading... Add to Basket
SP14-8 - 2.20 kW	3913-177	£2,334.00	2"	2.20 kW	48 m	300 l/min	53	£2,240.64 £1,867.20	Loading... Add to Basket
SP14-11 - 3.00 kW	3913-178	£3,218.00	2"	3.00 kW	67 m	300 l/min	53	£3,089.28 £2,574.40	Loading... Add to Basket
SP14-13 - 3.00 kW	3913-179	£3,483.00	2"	3.00 kW	78 m	300 l/min	53	£3,343.68 £2,786.40	Loading... Add to Basket
SP14-15 - 4.00 kW	3913-180	£3,927.00	2"	4.00 kW	92 m	300 l/min	53	£3,769.92 £3,141.60	Loading... Add to Basket
SP14-17 - 4.00 kW	3913-181	£4,182.00	2"	4.00 kW	103 m	300 l/min	53	£4,014.72 £3,345.60	Loading... Add to Basket
SP14-20 - 5.50 kW	3913-182	£4,744.00	2"	5.50 kW	123 m	300 l/min	53	£4,554.24 £3,795.20	Loading... Add to Basket
SP14-23 - 5.50 kW	3913-183	£5,129.00	2"	5.50 kW	140 m	300 l/min	53	£4,923.84 £4,103.20	Loading... Add to Basket
SP14-27 - 7.50 kW	3913-184	£6,583.00	2"	7.50 kW	165 m	300 l/min	53	£6,319.68 £5,266.40	Loading... Add to Basket

Description

Grundfos SP borehole pumps are commonly used for the pumping of water from 4” boreholes and wells where there is 400V power supply on site. These submersible borehole water pumps are typically used for applications involving water supply, irrigation, pressure boosting and lowering groundwater levels.

The SP Grundfos borehole pumps are highly efficient solutions meeting the ErP regulations and Minimum Efficiency Index, resulting in lower energy consumption and running costs. Constructed from AISI 304 Stainless Steel, these Grundfos pumps are protected from corrosion and offer a reliable service, whilst handling sand content up to a maximum of 150g/m3.

These submersible borehole water pumps are manufactured to Grundfos high standards of engineering for a long, low maintenance service life. These models come with a 400V motor. View 230V versions here.

For easier and more automated control over your borehole/well water supply and protection of the pump against things like dry running, overload and system pressure changes, we recommend looking at borehole pump controllers.

Grundfos SP Specifications:
►Maximum sand content: 150g/m3
►Maximum liquid temperature: 40°C
►Flow rates up to 300lpm (largest flow model)
►Head up to 310m (highest pressure model)
►Designed for 4inch boreholes
►Stainless steel casing for anti-corrosion
►400V motor

As a longstanding Grundfos pump supplier, Whisper Pumps are highly experienced in all models. If you are unsure on the borehole water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
