Ebara MULTIGO High Pressure Submersible Pumps

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Ebara MULTIGO multistage pumps are renowned for being low noise, reliable solutions that can be used both in surface and submerged installations. These high-quality submersible pumps are designed for pumping clean water and are ideal for domestic and commercial uses, including pressure boosting, flood pumping, water features and irrigation systems.

14 options available from £505.40

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
MULTIGO M 40/06	112-000	£820.00	0.55kW	40 m	80 l/min	51	£688.80 £574.00	Loading... Add to Basket
MULTIGO M 40/08	112-001	£820.00	0.60kW	44 m	80 l/min	51	£688.80 £574.00	Loading... Add to Basket
MULTIGO M 40/10	112-002	£847.00	0.75kW	55 m	80 l/min	51	£711.48 £592.90	Loading... Add to Basket
MULTIGO M 40/12	112-003	£893.00	0.90kW	61 m	80 l/min	51	£750.12 £625.10	Loading... Add to Basket
MULTIGO M 40/15	112-004	£933.00	1.10kW	76 m	80 l/min	51	£783.72 £653.10	Loading... Add to Basket
MULTIGO M 80/12	112-005	£933.00	0.90kW	46 m	120 l/min	51	£783.72 £653.10	Loading... Add to Basket
MULTIGO M 80/15	112-006	£1,017.00	1.10kW	58 m	120 l/min	51	£854.28 £711.90	Loading... Add to Basket
MULTIGO 40/08	112-007	£722.00	0.60kW	44 m	80 l/min	53	£606.48 £505.40	Loading... Add to Basket
MULTIGO 40/10	112-008	£738.00	0.75kW	55 m	80 l/min	53	£619.92 £516.60	Loading... Add to Basket
MULTIGO 40/12	112-009	£798.00	0.90kW	61 m	80 l/min	53	£670.32 £558.60	Loading... Add to Basket
MULTIGO 40/15	112-010	£836.00	1.10kW	76 m	80 l/min	53	£702.24 £585.20	Loading... Add to Basket
MULTIGO 80/12	112-011	£806.00	0.90kW	46 m	120 l/min	53	£677.04 £564.20	Loading... Add to Basket
MULTIGO 80/15	112-012	£887.00	1.10kW	58 m	120 l/min	53	£745.08 £620.90	Loading... Add to Basket
MULTIGO 80/20	112-013	£916.00	1.50kW	74 m	120 l/min	53	£769.44 £641.20	Loading... Add to Basket

Description

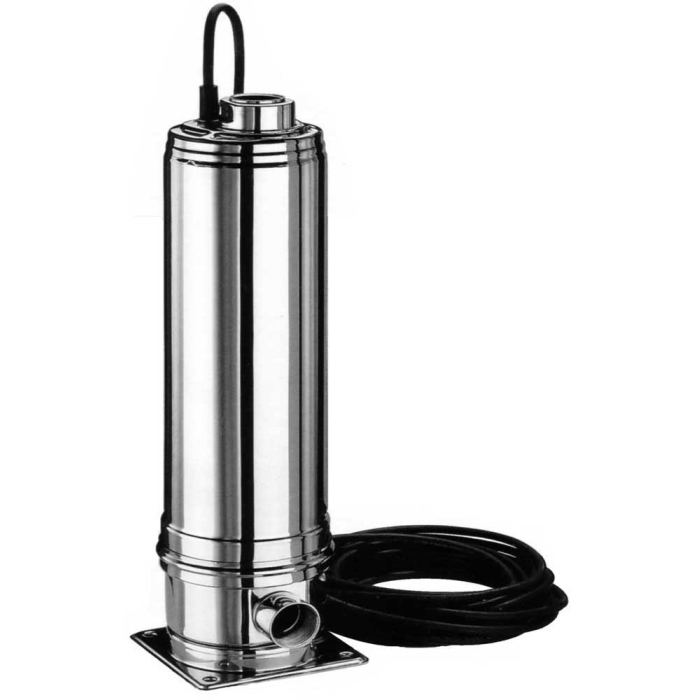

Ebara MULTIGO submersible pumps are vertical multistage pumps designed for transferring clean water. Ideal for domestic and commercial uses, including pressure boosting, flood pumping, water features and irrigation systems, the Ebara water pumps are versatile and reliable pumping solutions.

The beauty of these Ebara pumps is that the pump motor is cooled by pumped liquid which simultaneously reduces the noise and vibration levels as the liquid passes around the motor within a water jacket. This way, the cooling of the motor is guaranteed and allows the Ebara vertical multistage centrifugal pump to be used both in the surface and in the submerged installations. Renowned for being low noise, the MULTIGO submersible water pumps have a robust stainless steel design and polypropylene and polystyrene impeller, reinforced with fibreglass to ensure pump durability. In addition, the Ebara multistage centrifugal pumps are supplied with a double mechanical seal with an interposed chamber containing lubrication fluid to ensure long service life and reliability.

Upon request, Whisper Pumps can supply a special Floating Suction Kit, which is the ideal accessory for the Ebara MULTIGO multistage centrifugal pumps. The floating foot valve kit raises the water intake above sediment level and below the floating debris, therefore pulling clean water.

Specifications
►Maximum liquid temperature: 40°C
►Maximum working pressure: 10 bar
►Maximum suction lift: 8 Metres
►Power cable: 5 Metres
►230V pumps are fitted with UK 3 pin plug

Materials
►Pump body: AISI 304 Stainless steel
►Impeller & Diffuser: Technopolymer
►Shaft seal: Carbon/Ceramic/NBR

Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the submersible water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
