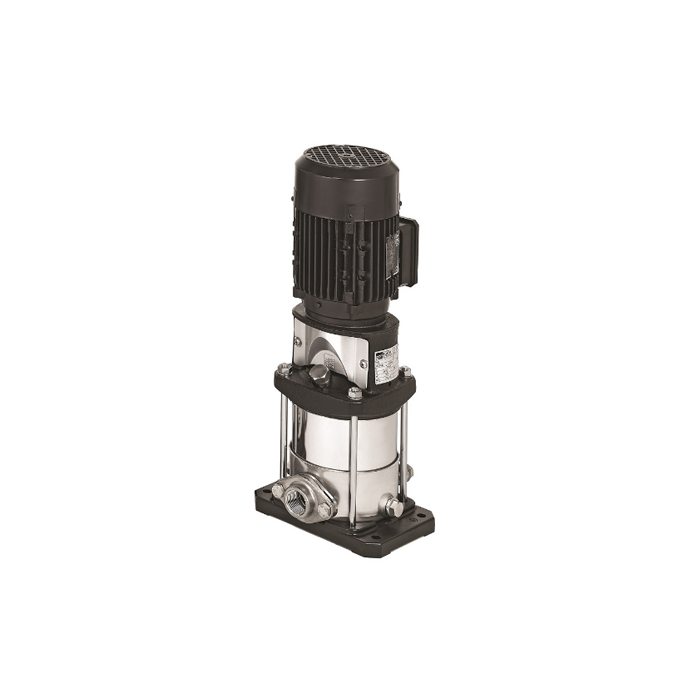

Ebara EVMS1 (N) 230V Vertical Multistage Pumps

Ebara EVMS (N) Vertical Multistage Pump,

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Ebara EVMS1 (N) are 230V vertical multistage pumps with the lowest flow of the Ebara EVMS (N) series. These robust and versatile Ebara water pumps are designed to transfer clean and coloured water in high-pressure applications and are suitable for a range of industrial and commercial uses. To further enhance the pump design, these multistage pumps come with innovative hydraulic features and energy-saving IE3 electric motors.

19 options available from £670.60

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
EVMS1 2N5/0.37M	112-400	£958.00	1"	1"	0.37 kW	11.9 m	40 l/min	51	£804.72 £670.60	Loading... Add to Basket
EVMS1 3N5/0.37M	112-401	£982.00	1"	1"	0.37 kW	17.9 m	40 l/min	51	£824.88 £687.40	Loading... Add to Basket
EVMS1 4N5/0.37M	112-402	£1,004.00	1"	1"	0.37 kW	23.8 m	40 l/min	51	£843.36 £702.80	Loading... Add to Basket
EVMS1 5N5/0.37M	112-403	£1,035.00	1"	1"	0.37 kW	30 m	40 l/min	51	£869.40 £724.50	Loading... Add to Basket
EVMS1 6N5/0.37M	112-404	£1,076.00	1"	1"	0.37 kW	35.8 m	40 l/min	51	£903.84 £753.20	Loading... Add to Basket
EVMS1 7N5/0.37M	112-405	£1,106.00	1"	1"	0.37 kW	41.5 m	40 l/min	51	£929.04 £774.20	Loading... Add to Basket
EVMS1 8N5/0.37M	112-406	£1,122.00	1"	1"	0.37 kW	47.5 m	40 l/min	51	£942.48 £785.40	Loading... Add to Basket
EVMS1 9N5/0.55M	112-407	£1,180.00	1"	1"	0.55 kW	53.5 m	40 l/min	51	£991.20 £826.00	Loading... Add to Basket
EVMS1 10N5/0.55M	112-408	£1,197.00	1"	1"	0.55 kW	59.6 m	40 l/min	51	£1,005.48 £837.90	Loading... Add to Basket
EVMS1 11N5/0.55M	112-409	£1,227.00	1"	1"	0.55 kW	65.5 m	40 l/min	51	£1,030.68 £858.90	Loading... Add to Basket
EVMS1 12N5/0.55M	112-410	£1,290.00	1"	1"	0.55 kW	71.5 m	40 l/min	51	£1,083.60 £903.00	Loading... Add to Basket
EVMS1 13N5/0.55M	112-411	£1,332.00	1"	1"	0.55 kW	77.5 m	40 l/min	51	£1,118.88 £932.40	Loading... Add to Basket
EVMS1 14N5/0.75M	112-412	£1,390.00	1"	1"	0.75 kW	83.5 m	40 l/min	51	£1,167.60 £973.00	Loading... Add to Basket
EVMS1 16N5/0.75M	112-413	£1,493.00	1"	1"	0.75 kW	95.5 m	40 l/min	51	£1,254.12 £1,045.10	Loading... Add to Basket
EVMS1 18N5/1.1M	112-414	£1,587.00	1"	1"	1.1 kW	107 m	40 l/min	51	£1,333.08 £1,110.90	Loading... Add to Basket
EVMS1 20N5/1.1M	112-415	£1,587.00	1"	1"	1.1 kW	119 m	40 l/min	51	£1,333.08 £1,110.90	Loading... Add to Basket
EVMS1 22N5/1.1M	112-416	£1,693.00	1"	1"	1.1 kW	131 m	40 l/min	51	£1,422.12 £1,185.10	Loading... Add to Basket
EVMS1 24N5/1.1M	112-417	£1,747.00	1"	1"	1.1 kW	143 m	40 l/min	51	£1,467.48 £1,222.90	Loading... Add to Basket
EVMS1 26N5/1.1M	112-418	£1,801.00	1"	1"	1.1 kW	155 m	40 l/min	51	£1,512.84 £1,260.70	Loading... Add to Basket

Description

Ebara EVMS1 (N) vertical multistage pumps are the lowest flow (40l/min) models of the Ebara EVMS (N) series, designed for transferring clean and clouded water, where there is access to 230V power. These Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors to ensure high pump efficiency and provide the highest quality standards. These multistage centrifugal pumps are versatile pumping solutions used for various applications, including pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting.

The beauty of these multistage centrifugal pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the vertical multistage pump without any modifications. In addition, Ebara EVMS multistage centrifugal pumps have a cartridge type shaft seal, allowing for a quick and easy cartridge replacement without disassembling the motor mount (see video). These Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.

The Ebara EVMS (N) series of multistage pumps are supplied with an oval flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.

WRAS Approved

Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
