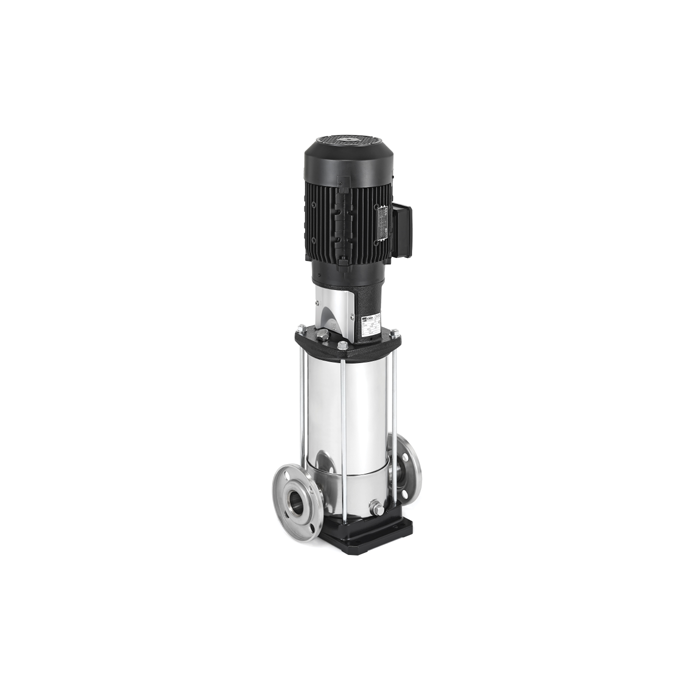

Ebara EVMS1 (F) 400V Vertical Multistage Pumps

Ebara EVMS (F) vertical multistage pumps are the lowest flow (40l/min) models of the Ebara EVMS (F) series, designed for transferring clean and clouded water, where there is access to 400V power.. The Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors to ensure high pump efficiency and provide the highest quality standards. These multistage centrifugal pumps are versatile pumping solutions used for various applications, including pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting.

These vertical multistage centrifugal pumps are supplied with an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump models without any modifications. To further enhance the pump design, these Ebara water pumps have a cartridge type shaft seal, which allows for a quick and easy cartridge replacement without disassembling the motor mount (see video). The EVMS1 (F) multistage centrifugal pumps come with spacer coupling for easy maintenance and a smart plug solution, offering multiple advantages that improve the pump's durability and ensure long service life.

The Ebara EVMS (F) series of multistage pumps are supplied with a round flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.

Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
