Ebara 2CDX End Suction Centrifugal Pumps - 400V

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

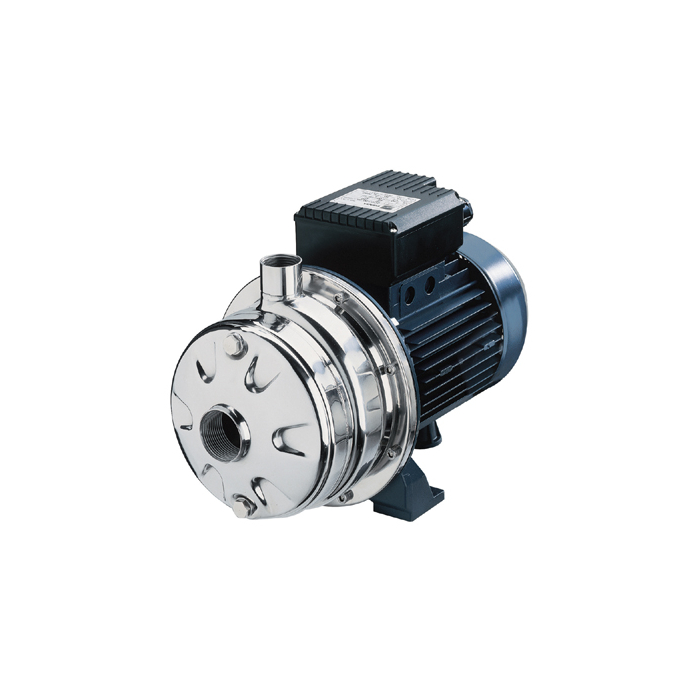

Ebara 2CDX twin impeller end suction centrifugal pumps are designed to be used where there is access to 400V power. Supplied with hydraulic components made from AISI 304 stainless steel, these centrifugal water pumps are suitable for various domestic and industrial applications, including pressure boosting, water supply, treatment, irrigation and more.

11 options available from £602.70

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
2CDX 70/10	111-023	£861.00	1-1/4"	1"	0.75kW	39 m	80 l/min	53	£723.24 £602.70	Loading... Add to Basket
2CDX 70/12	111-024	£925.00	1-1/4"	1"	0.90kW	45 m	80 l/min	53	£777.00 £647.50	Loading... Add to Basket
2CDX 70/15	111-025	£984.00	1-1/4"	1"	1.10kW	53 m	80 l/min	53	£826.56 £688.80	Loading... Add to Basket
2CDX 70/20	111-026	£1,063.00	1-1/4"	1"	1.50kW	60 m	80 l/min	53	£892.92 £744.10	Loading... Add to Basket
2CDX 120/15	111-027	£1,126.00	1-1/4"	1"	1.10kW	42 m	150 l/min	53	£945.84 £788.20	Loading... Add to Basket
2CDX 120/20	111-028	£1,238.00	1-1/4"	1"	1.50kW	52 m	150 l/min	53	£1,039.92 £866.60	Loading... Add to Basket
2CDX 120/30	111-029	£1,635.00	1-1/4"	1"	2.20kW	59 m	150 l/min	53	£1,373.40 £1,144.50	Loading... Add to Basket
2CDX 120/40	111-030	£1,963.00	1-1/4"	1"	3.00kW	69 m	150 l/min	53	£1,648.92 £1,374.10	Loading... Add to Basket
2CDX 200/30	111-031	£1,650.00	1-1/2"	1"	2.20kW	52 m	210 l/min	53	£1,386.00 £1,155.00	Loading... Add to Basket
2CDX 200/40	111-032	£1,977.00	1-1/2"	1"	3.00kW	63 m	210 l/min	53	£1,660.68 £1,383.90	Loading... Add to Basket
2CDX 200/50	111-033	£2,166.00	1-1/2"	1"	3.70kW	72 m	210 l/min	53	£1,819.44 £1,516.20	Loading... Add to Basket

Description

Ebara 2CDX end suction pumps are designed for transferring water or moderately aggressive fluids where there is access to 400V power. Suitable for multiple applications, including pressure boosting, water supply, treatment and irrigation, air conditioning systems and general water pumping, these centrifugal water pumps are a versatile pumping solution that offers a smooth operation. Thanks to their compact size, Ebara 2CDX end suction centrifugal pumps are a preferable pumping solution for applications with limited or difficult to reach spaces.

These horizontal end suction pumps are supplied with twin impellers, which have a wider performance range compared to the single-impeller version. Manufactured using a hydroforming process which has significant advantages over traditional processes, these Ebara end suction water pumps have improved efficiency by above 80%. This, combined with their simple and low maintenance design, makes the 2CDX end suction centrifugal pumps a cost effective pumping solution for a range of domestic and industrial applications.

The 2CDX centrifugal water pumps are also supplied with hydraulic components made from corrosion resistant AISI 304 stainless steel, which guarantees sturdiness, hydraulic efficiency and reliability. To further enhance the pump design, these end suction centrifugal water pumps can be supplied in AISI 316 stainless steel upon request to match your application requirements.

The beauty of the horizontal end suction centrifugal pumps is that they can be supplied with a range of different mechanical seal types to suit your application and fluid. The 2CDX centrifugal water pump models above can pump water up to 60°C. However, if you’re pumping a different fluid or temperature, please contact our technical engineers, and they will advise you.

Specifications
►Maximum liquid temperature: 60°C
110°C option available.
►Maximum suction lift: 9 Metres
►Maximum working pressure: 8 bar
►IP55 Protection

Materials
►Pump body: AISI 304 Stainless Steel
►Impeller: AISI 304 Stainless Steel
►Shaft seal: Carbon/Ceramic/NBR

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure about the end suction pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
