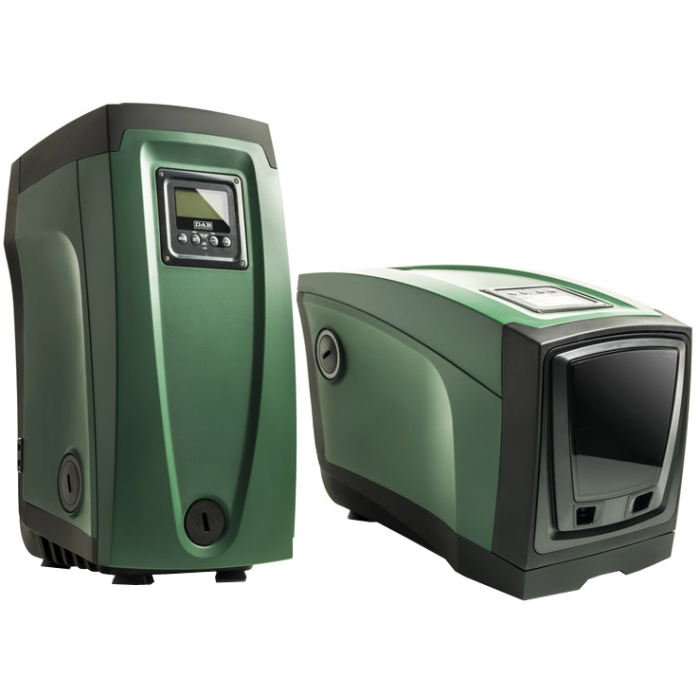

DAB ESyBox Water Pressure Booster Pump System
Share this product
UK Delivery Options and Costs
Zone 1 - England, Wales and Southern Scotland
Standard Delivery (3-5 working days) - Orders Under £100 - £7.50 / Over £100 - FREE
Express Delivery (1-2 working days) - £15
Premium Next Working Day (delivery before 13.00) - £26
Zone 2 - Scottish Highlands & Islands, Northern Ireland, Isle of Man, Scilly & Channel Isles
Standard Delivery (3-5 working days) - Orders Under £100 - £15 / Over £100 - FREE
Express Delivery (2-3 working days) - £15
Zone 3 - Republic of Ireland
Please contact us for delivery charges to Republic of Ireland
Orders must be placed before 14.00 for express and premium next day delivery.
We can also offer a same day, Saturday or Sunday delivery service on many of our products. Please call us on 01777 871100 to get a price.
Some products may be exempt from some of the delivery options above. Please click the 'Delivery Info' tab on the individual product page for full details.
Please note: Off loading charges are not included for heavy and/or bulky items.
We will try our best to deliver your order on time but inevitably, there may be delays due to bad weather or road hold-ups etc...
View the full range:
Options Available
| Model | Maxflow | Maxhead | SKU | RRP | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|
| Model: ESYBOX | Maxflow: 120 l/min | Maxhead: 65 m | SKU: 3669-020 | RRP: £1,536.00 |
£1,228.80
£1,474.56
|
Loading...
Add to Basket
|
Description
The DAB ESyBox is a self-priming, water pressure booster pump with 2litre expansion vessel for increasing water pressure to showers, taps, garden taps and appliances in domestic and commercial buildings.
This pressure boosting pump has an inverter for constant reliable water pressure, regardless of demand. This feature has also been proven to save up to 50% on energy consumption compared to conventional units.
The DAB EasyBox water pressure booster pumps are known for running virtually silent and its ability to be installed practically anywhere, even under your kitchen sink. An additional benefit of the DAB EsyBox is its dry run protection, meaning that it the water supply runs out, the pump automatically shuts down to prevent damage.
As well as the pump and inverter, this pressure booster pump comes with an adjustable high resolution LCD display and a 2 litre built-in expansion vessel with pressure switch. When a valve or tap is opened, water stored under pressure in the expansion vessel is forced out until the pressure in the system drops to an adjustable cut in pressure. When the demand ceases, the booster pump continues to run, re-charging the expansion tank until the adjustable cut-out pressure is reached.
Specifications
►Maximum liquid temperature: 40°C
►Maximum suction depth: 8 metres
►Insulation class: F
Applications
►Potable water
►Domestic Systems
►Gardening Applications
Wall brackets are available as an optional extra if you would prefer a wall installation.
If you're looking for somewhere to store your water before it's pumped, you should consider the E.Sytank. DAB ESyTank is a potable water storage tank designed specifically for integration with the DAB Easy Box.
*This DAB booster pump cannot be connected to incoming main water supply. If in any doubt, please contact us to discuss further.
As a DAB pump supplier over 25 years, we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the DAB booster pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
