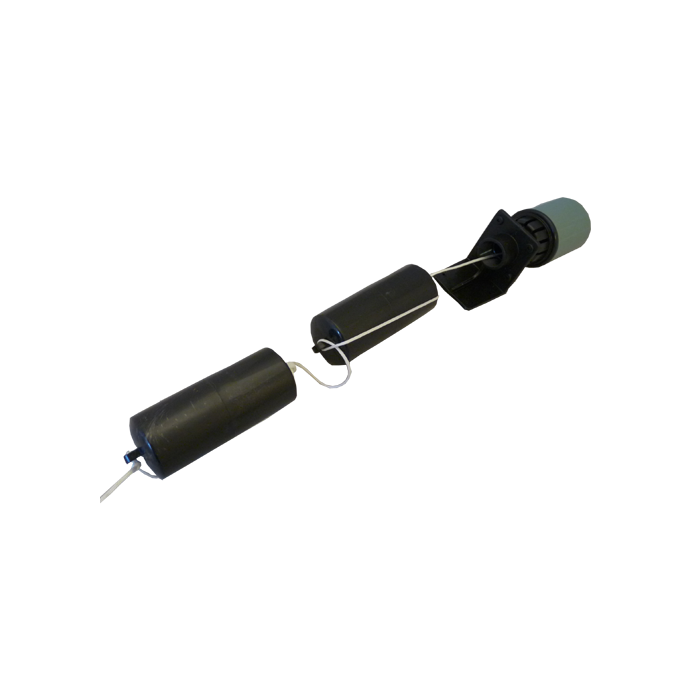

ST70AB Float Switch

View delivery information
Price match guarantee, call 0121 123 456 if you've seen it cheaper
ST70AB float switches operate with all kinds of water tanks and pumps for liquid level control. It can be used for either water tank filling or emptying.
chevron-down chevron-up
1 options available from £20.80
Description
Downloads
Need help choosing? Send enquiry



Options Available

Model SKU Rrp Our Price (ex VAT)
ST70AB Float Switch 030-500 £26.00
£24.96 £20.80
loader
Loading...
Add to Basket

Description

ST70AB float switches operate with all kinds of water tanks and pumps for liquid level control. It can be used for either water tank filling or emptying.

Levels can be achieved by positioning the 2 weights to give a differential of 50mm to 1000mm.

The switches electrical connections allow direct connection to single phase equipment; alternatively the float can be used with a control panel or starter box on low voltage.

Specifications
►Power: 110v/240v, 50/60Hz
►Rating: 240v - 7.5A, 110v - 15A
►Connection: 1" & 3/4" BSP
►Vertical installation
►Control range 0.2 - 5.0 meters
►Maximum temperature: 60°c
►Supplied with mounting bracket
