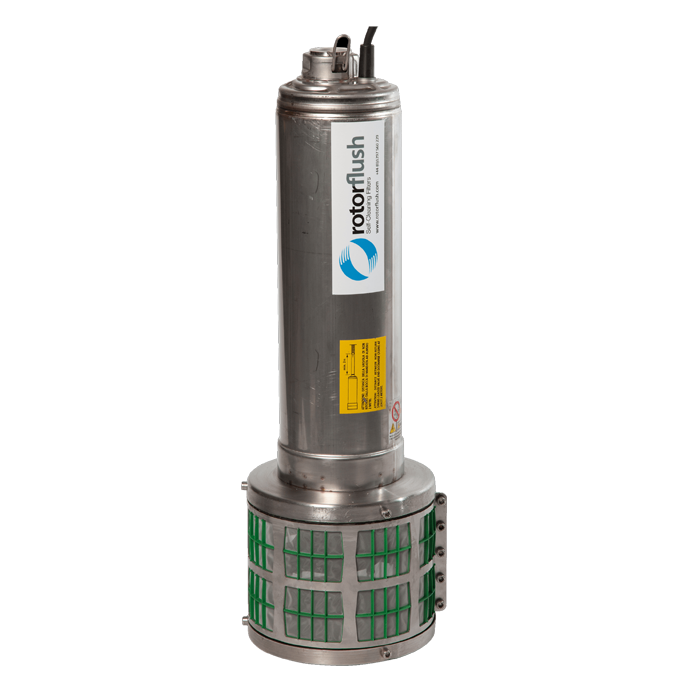

Rotorflush Filter Submersible Pumps

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Rotorflush submersible pumps are high-quality submersible dirty water pumps with integrated self-cleaning filters that keep any solids away from the intake. These reliable submersible effluent pumps are an ideal solution for pumping water from dirty lagoons, lakes and rivers and filtering wash water for water treatment works.

21 options available from £2,439.00

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Floatswitch	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
E4006	3010-001	£2,755.00	1-1/4"	NO	0.60 kW	36 m	80 l/min	51	£2,975.40 £2,479.50	Loading... Add to Basket
E4008 AUTO	3010-003	£2,850.00	1-1/4"	YES	0.75 kW	48 m	80 l/min	51	£3,078.00 £2,565.00	Loading... Add to Basket
E4010 AUTO	3010-005	£2,970.00	1-1/4"	YES	0.90 kW	60 m	80 l/min	51	£3,207.60 £2,673.00	Loading... Add to Basket
E4015 AUTO	3010-007	£3,330.00	1-1/4"	YES	1.20 kW	84 m	80 l/min	51	£3,596.40 £2,997.00	Loading... Add to Basket
E8012 AUTO	3010-009	£3,090.00	1-1/4"	YES	0.90 kW	38 m	120 l/min	51	£3,337.20 £2,781.00	Loading... Add to Basket
E8015 AUTO	3010-011	£3,265.00	1-1/4"	YES	1.20 kW	62 m	120 l/min	51	£3,526.20 £2,938.50	Loading... Add to Basket
N9316 AUTO	3010-013	£2,730.00	1- 1/4"	YES	1.10 kW	33 m	225 l/m	51	£2,948.40 £2,457.00	Loading... Add to Basket
N9416 AUTO	3010-015	£3,025.00	1- 1/4"	YES	1.50 kW	45 m	225 l/m	51	£3,267.00 £2,722.50	Loading... Add to Basket
E4008	3010-020	£2,710.00	1-1/4"	NO	0.60 kW	36 m	80 l/min	53	£2,926.80 £2,439.00	Loading... Add to Basket
E4010	3010-021	£2,770.00	1-1/4"	NO	0.75 kW	48 m	80 l/min	53	£2,991.60 £2,493.00	Loading... Add to Basket
E4012	3010-022	£3,055.00	1-1/4"	NO	0.90 kW	60 m	80 l/min	53	£3,299.40 £2,749.50	Loading... Add to Basket
E4015	3010-023	£3,205.00	1-1/4"	NO	1.20 kW	84 m	80 l/min	53	£3,461.40 £2,884.50	Loading... Add to Basket
E8012	3010-024	£2,970.00	1-1/4"	NO	0.90 kW	38 m	120 l/min	53	£3,207.60 £2,673.00	Loading... Add to Basket
E8015	3010-025	£3,120.00	1-1/4"	NO	1.20 kW	62 m	120 l/min	53	£3,369.60 £2,808.00	Loading... Add to Basket
E8020	3010-026	£3,205.00	1-1/4"	NO	1.60 kW	84 m	120 l/min	53	£3,461.40 £2,884.50	Loading... Add to Basket
N9416	3010-032	£2,745.00	1- 1/4"	NO	1.50 kW	45 m	225 l/m	53	£2,964.60 £2,470.50	Loading... Add to Basket
N9516	3010-027	£2,960.00	1- 1/4"	NO	2.2 kW	57 m	225 l/m	53	£3,196.80 £2,664.00	Loading... Add to Basket
N9616	3010-028	£3,310.00	1- 1/4"	NO	2.2 kW	67 m	225 l/m	53	£3,574.80 £2,979.00	Loading... Add to Basket
N9716	3010-029	£3,670.00	1- 1/4"	NO	3.0 kW	79 m	225 l/m	53	£3,963.60 £3,303.00	Loading... Add to Basket
N9816	3010-030	£4,160.00	1- 1/4"	NO	3.0 kW	90 m	225 l/m	53	£4,492.80 £3,744.00	Loading... Add to Basket
N9916	3010-031	£4,735.00	1- 1/4"	NO	3.0 kW	103 m	225 l/m	53	£5,113.80 £4,261.50	Loading... Add to Basket

Description

Rotorflush submersible water pumps are high-quality pumping solutions with integrated self-cleaning filters that remove any detritus that block the screen and allow the pump to operate at an optimal level. Combining pumping and filtration solution in one easy-to-use and install, these submersible sewage pumps are ideal for pumping water contaminated with suspended solids. Due to their design benefits and robust design, Rotorflush submersible dirty water pumps are typically used for pumping water from dirty lagoons, lakes and rivers, and filtering wash water for water treatment works.

Unlike traditional pumps, which will only keep out larger particles and can easily get damaged from suspended solids in the water, the Rotorflush electric submersible pumps remove solids down to 60 microns. This means that if there is a high volume of suspended solids in the water, the self-cleaning filter will prevent pump blockage and save money on repairing expensive pump damage. The self-cleaning filter on the Rotorflush submersible effluent pumps is designed to stop intake blockage as it is completely cleaned every ½ second, offering more efficient pump operation.

How Does This Work?

The self-cleaning part of the filter consists of a pump impeller fitted inside a rotating housing with two angled jets. The main water flow is through the filter screen and into the main submersible pump. Some of the filtered water is sucked into the central impeller and ejected out through the rotating jets. These angled jets rotate at 60 rpm and direct water back through the filter, removing any detritus that is beginning to block the screen.

Advantages
►Removes solids down to 60 microns
►Pressure up to 10 bars
►Pump and self cleaning filter in one unit
►Easy to install
►High reliability and easy to use
►Built-in thermistor (single phase only)
►Reduced capital, installation and maintenance costs

Please Note: Models without a float switch are available upon request. Please contact us to enquire.

Whisper Pumps have been supplying submersible water pumps for over 25 years, meaning we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the submersible dirty water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
