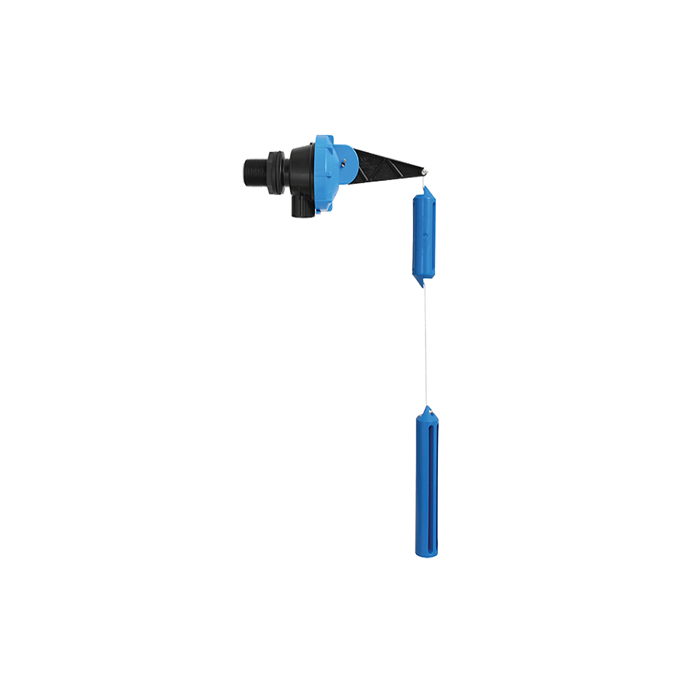

Pump Buddy Valve

View delivery information
Price match guarantee, call 0121 123 456 if you've seen it cheaper
Pump Buddy® valves are used as an inlet control device. The valve allows variable water level settings when filling a water tank using a pump. A pump buddy valve can also be used as part of a rainwater harvesting system. It will act as a backup water supply control valve in the event of demand exceeding rainfall.
chevron-down chevron-up
1 options available from £118.75
Description
Downloads

View the full range:

Need help choosing? Send enquiry



Options Available

Model SKU Our Price (ex VAT)
Pump Buddy 1" Valve 875-021
£142.50 £118.75
loader
Loading...
Add to Basket

Description

Pump Buddy® valves are used as an inlet control device. The valve allows variable water level settings when filling a water tank using a pump. A pump buddy valve can also be used as part of a rainwater harvesting system. It will act as a backup water supply control valve in the event of demand exceeding rainfall.

Operating Principal
The pump buddy will be closed when both weights are submerged (maximum water level). The valve will remain closed until the bottom weight is exposed (minimum water level). The valve will then open and remain open until the maximum level is reached.

Benefits:
►High volume water inlet
►Variable adjustment between minimum and maximum water levels
►Reduces pump run time (saves electricity)
►Extends pump life

Specifications
► Working pressure 0.5 - 10 bar [8 - 150psi]
► Minimum inlet pressure 0.5 bar (8psi)
► Maximum inlet pressure 10 bar (150psi)
► Temperature range: 1 - 60˚C

Options / Accessories

Hexagon Reducing Bush
Hexagon Reducing Bush

Starting at £1.45 £1.21

View Details
