Mini Single Pump Wastewater Lift Stations
Share this product
View delivery information
Price match guarantee, call 0121 123 456 if you've seen it cheaper
Mini prefabricated compact lift stations are designed to deliver foul, dirty water from domestic or light commercial premises to main sewer lines located at a higher level, or where gravity drainage is not possible.
Options Available
| Model | SKU | Rrp | Sizemm | Outlet | Maxhead | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|
| MINI1200S/GR/65VX | 5310-000 | £2,388.00 | 1500 (depth) x 1000 | 3" | 8.5 m |
£2,005.92
£1,671.60
|
Loading...
Add to Basket
|
| MINI1700S/GR/65VX | 5310-001 | £2,552.00 | 2000 (depth) x 1000 | 3" | 8.5 m |
£2,143.68
£1,786.40
|
Loading...
Add to Basket
|
Description

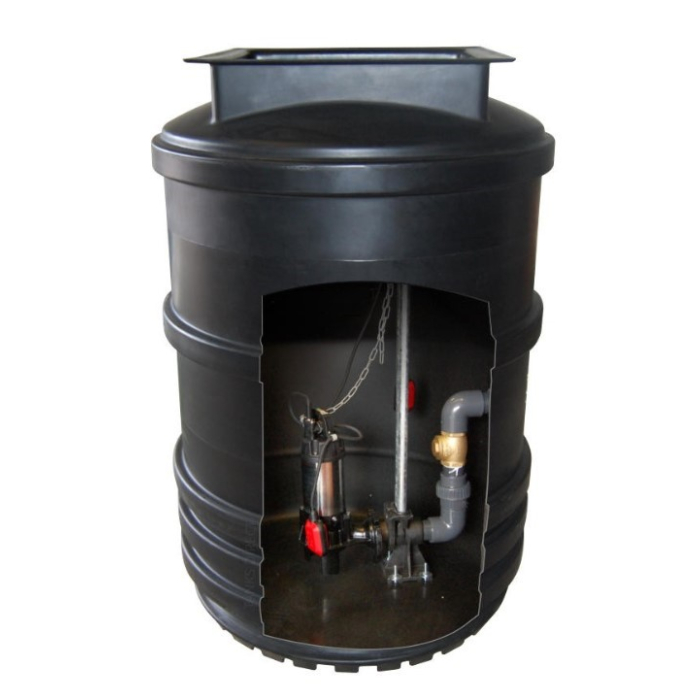

Mini prefabricated compact lift stations are designed to deliver foul, dirty water from domestic or light commercial premises to main sewer lines located at a higher level, or where gravity drainage is not possible.
The Mini range is delivered to site as a complete package including all internal pipe work and a sewage pump. The system also includes a guide rail and pedestal kit for easy pump access.
Mini packaged pump stations allow for one or two 110mm inlet (to be drilled on site) to enable a quick and easy installation.
Pump Specifications
►Stainless steel motor casing
►Coolant filled
►Power cable: 10 metres
►Float switch as standard
Tank Specifications
►Robust MDPE
►Pedestrian rated cover
►110mm - 160mm inlet
Please Note: Free Delivery is only applicable to customers in Zone 1. Customers in Zones 2 & 3 will need to contact us for a delivery charge (see delivery tab for map).
