Lowara Micro 4 Sewage Lift Stations

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Lowara Micro 4 (also known as Midibox) prefabricated compact lift stations are designed to deliver clean and grey water (according to EN 12050-2 standard) to main sewer lines located at a higher level, or where gravity drainage is not possible.

9 options available from £688.10

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Impeller	Maxsolid	Power	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
Micro 4 DOC 3/A FP	3360-005	£983.00	CHANNEL	10 mm	0.25 kW	6 m	125 l/min	51	£825.72 £688.10	Loading... Add to Basket
Micro 4 DOC 7/A FP	3360-006	£1,043.00	CHANNEL	10 mm	0.55 kW	10 m	225 l/min	51	£876.12 £730.10	Loading... Add to Basket
Micro 4 DOC 7VX/A FP	3360-007	£1,043.00	VORTEX	20 mm	0.55 kW	7 m	180 l/min	51	£876.12 £730.10	Loading... Add to Basket
Micro 4 DOMO 7/B FP	3360-008	£1,218.00	CHANNEL	35 mm	0.55 kW	10.7 m	320 l/min	51	£1,023.12 £852.60	Loading... Add to Basket
Micro 4 DOMO 7VX/B FP	3360-009	£1,218.00	VORTEX	35 mm	0.55 kW	10.7 m	320 l/min	51	£1,023.12 £852.60	Loading... Add to Basket
Micro 4 DOC 7T/A FP	3360-010	£1,317.00	CHANNEL	10 mm	0.55 kW	10 m	225 l/min	53	£1,106.28 £921.90	Loading... Add to Basket
Micro 4 DOC 7VXT/A FP	3360-011	£1,382.00	VORTEX	20 mm	0.55 kW	7 m	180 l/min	53	£1,160.88 £967.40	Loading... Add to Basket
Micro 4 DOMO 7T/B FP	3360-012	£1,620.00	CHANNEL	35 mm	0.55 kW	10.7 m	320 l/min	53	£1,360.80 £1,134.00	Loading... Add to Basket
Micro 4 DOMO 7VXT/B	3360-013	£1,620.00	VORTEX	35 mm	0.55 kW	9.1 m	260 l/min	53	£1,360.80 £1,134.00	Loading... Add to Basket

Description

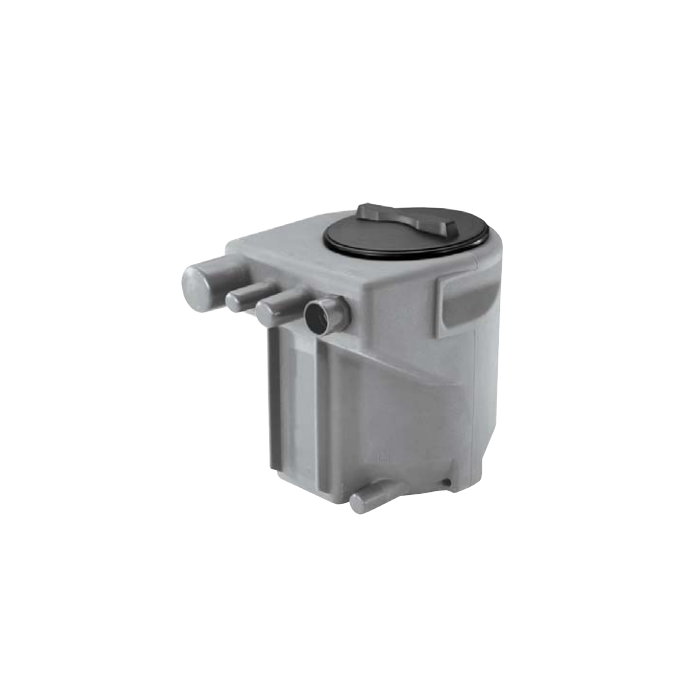

Lowara Micro 4 is a fully packaged clean / dirty water lifting station which is supplied with all necessary equipment to allow ease and speed of installation.
The station includes:
►Lowara DOC or DOMO submersible pump
►80 Litre polyethylene tank
►1-1/4" or 1-1/2" delivery pipes equipped with a check valve
►Cable glands
►QDR control panel for three phase models.

Micro 4 lift stations should be installed on the ground or buried in a suitable structure. Installation is quick and easy, just connect the pipes/cables and plug it in. For three-phase models you will also need to connect the control panel (labelled pictograms are supplied to help with this).

The models above listed with the vortex impeller are suitable for:
clean water, effluent, sewage containing suspended solids and fibres but non-faecal wastewater.

The models above listed with the channel impeller are suitable for:
clean water, effluent, sewage NOT containing suspended fibres and faecal wastewater.

The polyethylene tank is designed in a neutral tone and the complete lift system works quietly and discreetly.
