Lowara e-SM e-HME Variable Speed Multistage Pumps
Share this product
Options Available
| Model | SKU | Rrp | Inlet | Outlet | Motor | Maxhead | Maxflow | Voltage | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1HME05S03M02VBE | 3312-150 | £1,735.00 | 1" | 1" | 0.37 kW | 45 m | 40 l/min | 51 |
£1,457.40
£1,214.50
|
Loading...
Add to Basket
|
| 1HME08S05M02VBE | 3312-151 | £1,863.00 | 1" | 1" | 0.55 kW | 72 m | 40 l/min | 51 |
£1,564.92
£1,304.10
|
Loading...
Add to Basket
|
| 1HME11S07M02QBE | 3312-152 | £1,990.00 | 1" | 1" | 0.75 kW | 98 m | 40 l/min | 51 |
£1,671.60
£1,393.00
|
Loading...
Add to Basket
|
| 1HME15S11M02QBE | 3312-153 | £2,188.00 | 1" | 1" | 1.1 kW | 134 m | 40 l/min | 51 |
£1,837.92
£1,531.60
|
Loading...
Add to Basket
|
| 1HME17S15M02QBE | 3312-154 | £2,406.00 | 1" | 1" | 1.5 kW | 152 m | 40 l/min | 51 |
£2,021.04
£1,684.20
|
Loading...
Add to Basket
|
| 3HME03S03M02VBE | 3312-155 | £1,738.00 | 1" | 1" | 0.37 kW | 33 m | 87 l/min | 51 |
£1,459.92
£1,216.60
|
Loading...
Add to Basket
|
| 3HME05S05M02VBE | 3312-156 | £1,840.00 | 1" | 1" | 0.55 kW | 55 m | 87 l/min | 51 |
£1,545.60
£1,288.00
|
Loading...
Add to Basket
|
| 3HME07S07M02VBE | 3312-157 | £2,023.00 | 1" | 1" | 0.75 kW | 78 m | 87 l/min | 51 |
£1,699.32
£1,416.10
|
Loading...
Add to Basket
|
| 3HME09S11M02QBE | 3312-158 | £2,263.00 | 1" | 1" | 1.1 kW | 100 m | 87 l/min | 51 |
£1,900.92
£1,584.10
|
Loading...
Add to Basket
|
| 3HME12S15M02QBE | 3312-159 | £2,468.00 | 1" | 1" | 1.5 kW | 133 m | 87 l/min | 51 |
£2,073.12
£1,727.60
|
Loading...
Add to Basket
|
| 5HME02S03M02VBE | 3312-160 | £1,670.00 | 1-1/4" | 1" | 0.37 kW | 22 m | 170 l/min | 51 |
£1,402.80
£1,169.00
|
Loading...
Add to Basket
|
| 5HME03S05M02VBE | 3312-161 | £1,734.00 | 1-1/4" | 1" | 0.55 kW | 33 m | 170 l/min | 51 |
£1,456.56
£1,213.80
|
Loading...
Add to Basket
|
| 5HME04S07M02VBE | 3312-162 | £1,856.00 | 1-1/4" | 1" | 0.75 kW | 44 m | 170 l/min | 51 |
£1,559.04
£1,299.20
|
Loading...
Add to Basket
|
| 5HME06S11M02VBE | 3312-163 | £2,216.00 | 1-1/4" | 1" | 1.1 kW | 67 m | 170 l/min | 51 |
£1,861.44
£1,551.20
|
Loading...
Add to Basket
|
| 5HME08S15M02QBE | 3312-164 | £2,441.00 | 1-1/4" | 1" | 1.5 kW | 89 m | 170 l/min | 51 |
£2,050.44
£1,708.70
|
Loading...
Add to Basket
|
Description

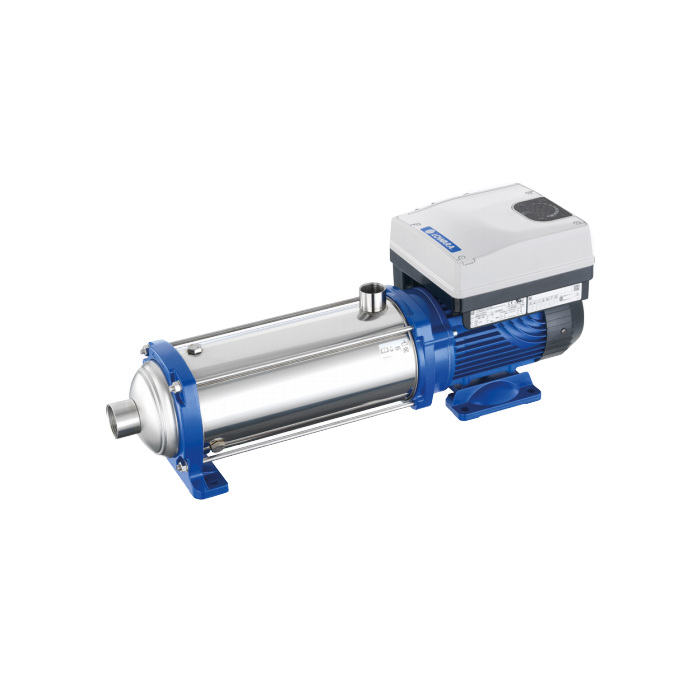

Lowara e-HME multistage pumps are highly efficient variable speed, horizontal pressure boosting pumps with electronically driven, permanent magnet motors (IE5 efficiency level). e-HME pumps are equipped with new e-SM inverter drives to supply a constant water pressure.
The integrated control system, combined with the high performance, power and efficiency from the motor and hydraulics, guarantees impressively low operating costs from these Lowara pumps. You also benefit from flexibility, precision and it's ultra compact size.
e-HME water pressure booster pumps are suitable for water supply systems in residential buildings, air conditioning, water treatment plants and other industrial installations.
Specifications
►Maximum liquid temperature: 120°C
►Maximum operating pressure: 16 bar
►IP55 Protection
e-HME pumps can be used in single, dual or triple pump operations.
Please note: e-SM variable speed drive pumps are supplied with pump, integrated drive, pressure transmitter, cable and plug. To enable the pump to stop on zero demand, you must purchase the Hydraulic Kit in 'Related Products' below.
If you are unsure which Lowara e-HM multistage pump is right for your application, contact our technical sales engineers today on 01777 871100. As a Lowara pump supplier for over 25 years, our technical experts will be able to support you and specify the right solution for your application.
