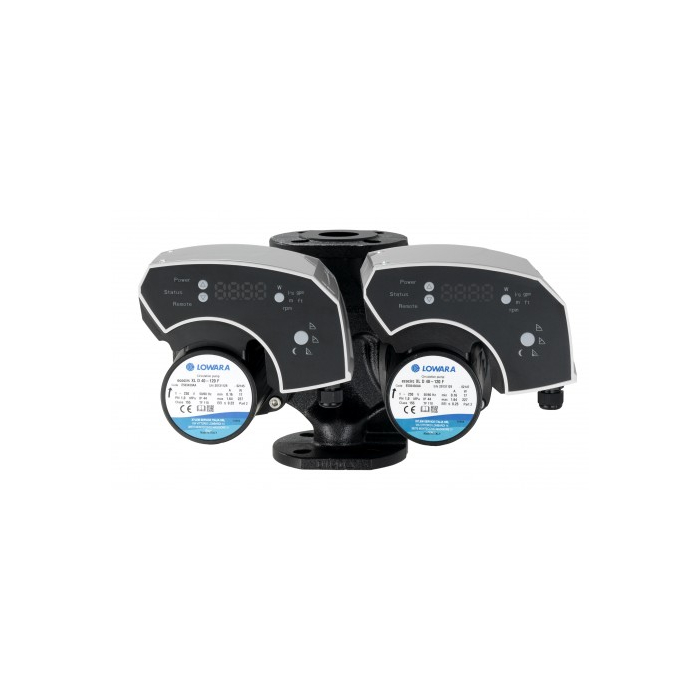

Lowara Ecocirc XLplus Twin Head Circulator Pumps
Share this product
Options Available
| Model | SKU | Rrp | Sizemm | Inlet | Outlet | Voltage | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|
| ECOCIRC XLplus D 32-80 | 3318-099 | £1,810.00 | 180 mm (L) | 2" | 2" | 51 |
£1,303.20
£1,086.00
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 32-100 | 3318-100 | £2,004.00 | 180 mm (L) | 2" | 2" | 51 |
£1,442.88
£1,202.40
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 32-80 F | 3318-101 | £2,033.00 | 220 mm (L) | DN 32 | DN 32 | 51 |
£1,463.76
£1,219.80
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 32-100 F | 3318-102 | £2,190.00 | 220 mm (L) | DN 32 | DN 32 | 51 |
£1,576.80
£1,314.00
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 32-120 F | 3318-103 | £2,918.00 | 220 mm (L) | DN 32 | DN 32 | 51 |
£2,100.96
£1,750.80
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 40-80 F | 3318-104 | £2,517.00 | 220 mm (L) | DN 40 | DN 40 | 51 |
£1,812.24
£1,510.20
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 40-100 F | 3318-105 | £3,020.00 | 220 mm (L) | DN 40 | DN 40 | 51 |
£2,174.40
£1,812.00
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 40-120 F | 3318-106 | £3,512.00 | 250 mm (L) | DN 40 | DN 40 | 51 |
£2,528.64
£2,107.20
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 40-150 F | 3318-107 | £4,119.00 | 250 mm (L) | DN 40 | DN 40 | 51 |
£2,965.68
£2,471.40
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 40-180 F | 3318-108 | £4,741.00 | 250 mm (L) | DN 40 | DN 40 | 51 |
£3,413.52
£2,844.60
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 50-80 F | 3318-109 | £4,047.00 | 240 mm (L) | DN 50 | DN 50 | 51 |
£2,913.84
£2,428.20
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 50-120 F | 3318-110 | £4,741.00 | 280 mm (L) | DN 50 | DN 50 | 51 |
£3,413.52
£2,844.60
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 50-150 F | 3318-111 | £5,540.00 | 280 mm (L) | DN 50 | DN 50 | 51 |
£3,988.80
£3,324.00
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 50-180 F | 3318-112 | £6,462.00 | 280 mm (L) | DN 50 | DN 50 | 51 |
£4,652.64
£3,877.20
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 65-80 F | 3318-113 | £5,065.00 | 340 mm (L) | DN 65 | DN 65 | 51 |
£3,646.80
£3,039.00
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 65-120 F | 3318-114 | £5,687.00 | 340 mm (L) | DN 65 | DN 65 | 51 |
£4,094.64
£3,412.20
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 65-150 F | 3318-115 | £5,983.00 | 340 mm (L) | DN 65 | DN 65 | 51 |
£4,307.76
£3,589.80
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 65-180 F | 3318-116 | £6,387.00 | 340 mm (L) | DN 65 | DN 65 | 51 |
£4,598.64
£3,832.20
|
Loading...
Add to Basket
|
| ECOCIRC XLplus D 80-120 F | 3318-118 | £6,231.00 | 360 mm (L) | DN 80 | DN 80 | 51 |
£4,486.32
£3,738.60
|
Loading...
Add to Basket
|
Description
Lowara Ecocirc XLplus variable speed, wet rotor circulator pumps for domestic and commercial hot water and central heating systems.
Studies have shown that 10-15% of energy consumption in domestic households is due to central heating circulator pumps, and with energy prices at an all time high, now is the time to consider your options. Lowara Ecocirc XLplus is a modern, electronically controlled recirculating pump that is designed with state of the art hydraulics, motor and intelligent controls and high efficiency in mind. The circulator pump has an EEI that is even better than the ErP 2015 level.
By investing in a Lowara Ecocirc XL circulator pump you can expect to see long term energy savings, with the unit paying for itself after approximately 2 years (dependent on operation time) – with a study by manufacturer, Xylem proving this.
All twin head Ecocirc XLplus models will come with a tapping on the side of the casing, this gives you the ability to remove air from the casing manually. In some instances where the twin head Ecocirc XLplus is fitted in a horizontal position (where the flow direction is left to right or right to left) air can get trapped in the top head of the pump. Inspired by customer feedback, Lowara have fitted a ¼” threaded connection on both sides of the casing to either bleed the pump manually or to fit an automatic air release valve. The auto air purge process is still included in the programming of the pump.
Lowara Ecocirc XLplus circulation pumps are specifically designed to circulate liquids in the following systems:
►Hot water heating systems
►Air-conditioning and cooling systems
►Open and closed loop solar systems
►Radiant in-floor/panel heating
►Geothermal systems
►Snow melt systems
Here's just some of the benefits of installing a Ecocirc XLplus circulator pump:
►Low power consumption
►Minimal Noise
►User-friendly human interface with digital display
►Control panel with touch buttons to change circulator status
►Night setback mode
►Dry running detection
►Multi pump functions
►Errors and working log history visualisation
►External control and monitoring
►Module for wireless communication
►Easy to install and maintain
Ecocirc XLplus pumps can be controlled from a laptop, tablet or smartphone is you purchase the 'wireless WiFi module'.
Specifications
►Maximum liquid temperature: 110°C
►Maximum head: 13 m
►Maximum flow rate: 60 m3/h
►230V pumps are fitted with UK 3 pin plug
Materials
►Pump body: Cast iron
All models listed above are twin head pumps.
Single headed Ecocirc XLplus pumps and Stainless Steel Ecocirc XLplus Pumps are also available - See links at the bottom of the page.
F suffix indicates the pumps have flanged connections.
Standard versions have a screwed connection.
