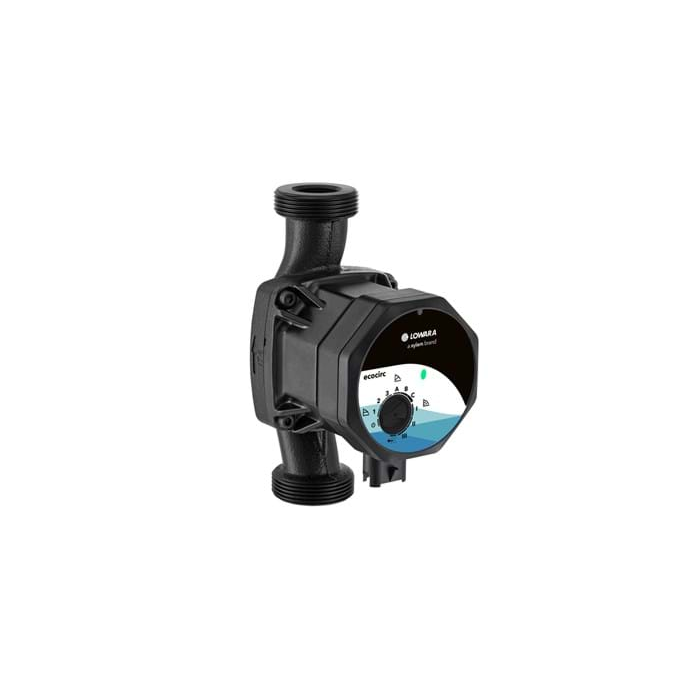

Lowara Ecocirc Circulator Pumps
Share this product
Options Available
| Model | SKU | Rrp | Sizemm | Inlet | Outlet | Maxhead | Voltage | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|---|
| ECOCIRC S 15-4/130 | 3318-500 | £248.00 | 130 mm (Length) | 1" | 1" | 4 m | 51 |
£208.32
£173.60
|
Loading...
Add to Basket
|
| ECOCIRC S 25-4/130 | 3318-505 | £236.00 | 130 mm (Length) | 1-1/2" | 1-1/2" | 4 m | 51 |
£198.24
£165.20
|
Loading...
Add to Basket
|
| ECOCIRC S 25-4/180 | 3318-506 | £236.00 | 180 mm (Length) | 1-1/2" | 1-1/2" | 4 m | 51 |
£198.24
£165.20
|
Loading...
Add to Basket
|
| ECOCIRC M 15-6/130 | 3318-501 | £273.00 | 130 mm (Length) | 1" | 1" | 6 m | 51 |
£229.32
£191.10
|
Loading...
Add to Basket
|
| ECOCIRC M 25-6/130 | 3318-507 | £260.00 | 130 mm (Length) | 1-1/2" | 1-1/2" | 6 m | 51 |
£218.40
£182.00
|
Loading...
Add to Basket
|
| ECOCIRC M 25-6/180 | 3318-508 | £260.00 | 180 mm (Length) | 1-1/2" | 1-1/2" | 6 m | 51 |
£218.40
£182.00
|
Loading...
Add to Basket
|
Description
Lowara's new and improved Ecocirc circulator pumps are designed for water circulation in heating and air conditioning systems and have a better than benchmark Energy Efficiency Index (EEI ≤0.18).
Lowara Ecocirc is a modern, electronically controlled high efficiency pump which has been proven to pay for itself within a short period of installation. Studies have shown that 10-15% of electricity consumption in domestic households is due to heating circulators. The Ecocirc's motor and hydraulics are carefully engineered to minimise this. Ecocirc circulator pumps feature ECM motors that allow energy savings of up to 80% compared to conventional circulators.
All Lowara Ecocirc circulator models feature a unique 'one turn' knob to set up control modes and speed settings. This simple yet effective design is user friendly and reliable.
Ecocirc single wet rotor circulators have a fixed or variable speed and threaded connections. The simple shaft-less spherical motor design has only one single self-aligning bearing and no shaft, this uses minimal energy which keeps consumption low.
Lowara Ecocirc circulation pumps feature Anti-Block technology which prevents magnetite entering the rotor chamber and causing a blockage (even in old systems). Lowara Ecocirc pumps also offer dry run protection and inrush current limitation which prevents the motor overheating if dry running and damage by high inrush currents.
Lowara Ecocirc circulator pumps are suitable for the following applications:
►Heating and cooling systems
►Residential buildings
►Domestic hot water systems
►Systems with thermostatic radiator valves
►Underfloor heating systems
►Thermal solar systems
Specifications
►Maximum liquid temperature: 110°C
►Maximum operating pressure: 10 bar (PN 10)
►Maximum power consumption: 60 W
►IP44 Protection
►Sound level: ≤ 43 dB(A)
►Supplied with Insulation Jacket as standard

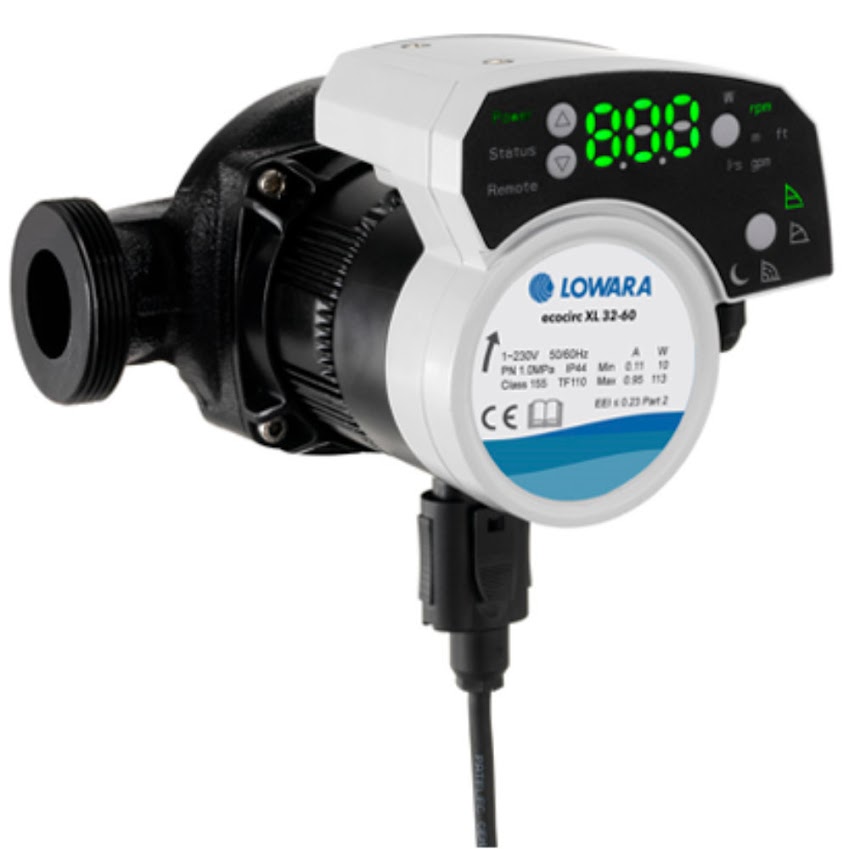

Lowara Ecocirc+ advanced pumps are also available on request. These circulator pumps include a 3 digit display, communication via Bluetooth wireless technology for external monitoring and have a night mode. Contact us on 01777 871100 to find out more details and for a free quote.
Stock Availability - Whilst most of the Ecocirc product range is currently available, there is an ongoing global manufacturing issue affecting some of the range. Some pump models have been temporarily removed from our website as they're on an excessive lead time. Pump models available to purchase above are on no more than 2 weeks lead time (with some available for immediate dispatch). Contact us on 01777 871100 for more details.
