Lowara e-LNE Inline Circulator Pumps (~1450rpm)

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

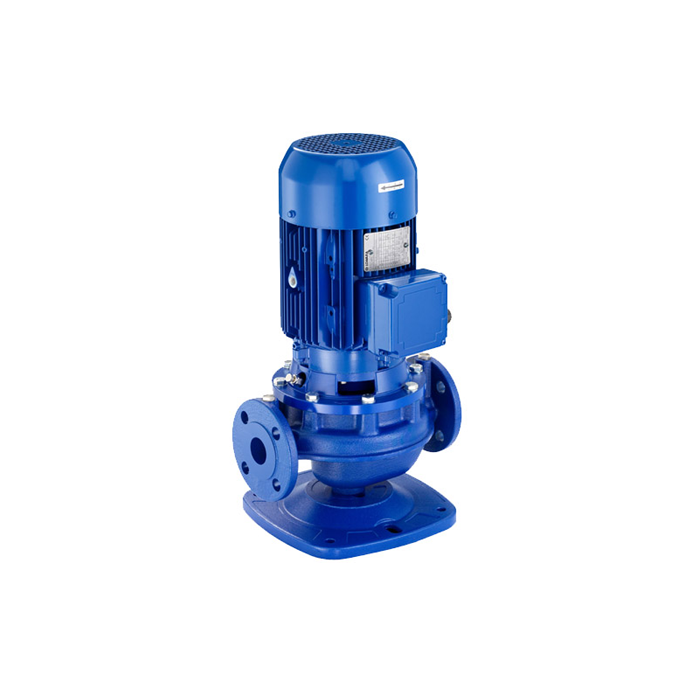

Lowara e-LNE single impeller centrifugal, circulator pumps with inline suction and discharge delivery flanges.

47 options available from £1,213.80

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Power	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
LNEE 040-125/02B/S45RCS4	3318-385	£1,734.00	DN 40	DN 40	0.25 kW	3.4 m	180 l/min	53	£1,456.56 £1,213.80	Loading... Add to Basket
LNEE 040-125/02A/S45RCS4	3318-386	£1,734.00	DN 40	DN 40	0.25 kW	4.2 m	210 l/min	53	£1,456.56 £1,213.80	Loading... Add to Basket
LNEE 040-125/02/S45RCS4	3318-387	£1,734.00	DN 40	DN 40	0.25 kW	5.4 m	276 l/min	53	£1,456.56 £1,213.80	Loading... Add to Basket
LNEE 040-125/03/S45RCS4	3318-388	£1,969.00	DN 40	DN 40	0.37 kW	6.5 m	306 l/min	53	£1,653.96 £1,378.30	Loading... Add to Basket
LNEE 040-160/02/S45RCS4	3318-389	£1,971.00	DN 40	DN 40	0.25 kW	5.49 m	233 l/min	53	£1,655.64 £1,379.70	Loading... Add to Basket
LNEE 040-160/03/S45RCS4	3318-390	£1,981.00	DN 40	DN 40	0.37 kW	7.2 m	276 l/min	53	£1,664.04 £1,386.70	Loading... Add to Basket
LNEE 040-160/05/S45RCS4	3318-391	£2,038.00	DN 40	DN 40	0.55 kW	8.6 m	306 l/min	53	£1,711.92 £1,426.60	Loading... Add to Basket
LNEE 040-160/07/X45RCS4	3318-392	£2,093.00	DN 40	DN 40	0.75 kW	9.6 m	384 l/min	53	£1,758.12 £1,465.10	Loading... Add to Basket
LNEE 040-200/05A/S45RCS4	3318-393	£2,145.00	DN 40	DN 40	0.55 kW	7.6 m	242 l/min	53	£1,801.80 £1,501.50	Loading... Add to Basket
LNEE 040-200/05/S45RCS4	3318-394	£2,145.00	DN 40	DN 40	0.55 kW	9.5 m	210 l/min	53	£1,801.80 £1,501.50	Loading... Add to Basket
LNEE 040-200/07/X45RCS4	3318-395	£2,200.00	DN 40	DN 40	0.75 kW	11.6 m	240 l/min	53	£1,848.00 £1,540.00	Loading... Add to Basket
LNEE 040-200/11/P45RCS4	3318-396	£2,235.00	DN 40	DN 40	1.1 kW	14.3 m	276 l/min	53	£1,877.40 £1,564.50	Loading... Add to Basket
LNEE 040-250/11A/P45RCS4	3318-397	£2,282.00	DN 40	DN 40	1.1 kW	14.6 m	282 l/min	53	£1,916.88 £1,597.40	Loading... Add to Basket
LNEE 040-250/11/P45RCS4	3318-398	£2,282.00	DN 40	DN 40	1.1 kW	15.1 m	276 l/min	53	£1,916.88 £1,597.40	Loading... Add to Basket
LNEE 040-250/15/P45RCS4	3318-399	£2,603.00	DN 40	DN 40	1.5 kW	19.5 m	306 l/min	53	£2,186.52 £1,822.10	Loading... Add to Basket
LNEE 040-250/22/P45RCS4	3318-400	£2,670.00	DN 40	DN 40	2.2 kW	23.2 m	402 l/min	53	£2,242.80 £1,869.00	Loading... Add to Basket
LNEE 050-125/02A/S45RCS4	3318-401	£1,885.00	DN 50	DN 50	0.25 kW	3.3 m	294 l/min	53	£1,583.40 £1,319.50	Loading... Add to Basket
LNEE 050-125/02/S45RCS4	3318-402	£1,885.00	DN 50	DN 50	0.25 kW	4.2 m	342 l/min	53	£1,583.40 £1,319.50	Loading... Add to Basket
LNEE 050-125/03/S45RCS4	3318-403	£1,993.00	DN 50	DN 50	0.37 kW	5.1 m	384 l/min	53	£1,674.12 £1,395.10	Loading... Add to Basket
LNEE 050-125/05/S45RCS4	3318-404	£2,029.00	DN 50	DN 50	0.55 kW	6.2 m	468 l/min	53	£1,704.36 £1,420.30	Loading... Add to Basket
LNEE 050-160/05/S45RCS4	3318-406	£2,038.00	DN 50	DN 50	0.55 kW	6.5 m	384 l/min	53	£1,711.92 £1,426.60	Loading... Add to Basket
LNEE 050-160/07/X45RCS4	3318-407	£2,098.00	DN 50	DN 50	0.75 kW	8 m	468 l/min	53	£1,762.32 £1,468.60	Loading... Add to Basket
LNEE 050-160/11/P45RCS4	3318-408	£2,214.00	DN 50	DN 50	1.1 kW	9.8 m	558 l/min	53	£1,859.76 £1,549.80	Loading... Add to Basket
LNEE 050-200/07/X45RCS4	3318-409	£2,350.00	DN 50	DN 50	0.75 kW	8.56 m	382 l/min	53	£1,974.00 £1,645.00	Loading... Add to Basket
LNEE 050-200/11A/P45RCS4	3318-410	£2,427.00	DN 50	DN 50	1.1 kW	10.5 m	426 l/min	53	£2,038.68 £1,698.90	Loading... Add to Basket
LNEE 050-200/11/P45RCS4	3318-411	£2,427.00	DN 50	DN 50	1.1 kW	11.9 m	468 l/min	53	£2,038.68 £1,698.90	Loading... Add to Basket
LNEE 050-200/15/P45RCS4	3318-412	£2,539.00	DN 50	DN 50	1.5 kW	13.5 m	510 l/min	53	£2,132.76 £1,777.30	Loading... Add to Basket
LNEE 050-250/11/P45RCS4	3318-414	£2,554.00	DN 50	DN 50	1.5 kW	13.3 m	336 l/min	53	£2,145.36 £1,787.80	Loading... Add to Basket
LNEE 050-250/15/P45RCS4	3318-415	£2,719.00	DN 50	DN 50	1.5 kW	15.2 m	384 l/min	53	£2,283.96 £1,903.30	Loading... Add to Basket
LNEE 050-250/22/P45RCS4	3318-416	£2,741.00	DN 50	DN 50	2.2 kW	21.1 m	468 l/min	53	£2,302.44 £1,918.70	Loading... Add to Basket
LNEE 050-250/30/P45RCS4	3318-417	£3,031.00	DN 50	DN 50	3 kW	23.8 m	510 l/min	53	£2,546.04 £2,121.70	Loading... Add to Basket
LNEE 065-125/03/S45RCS4	3318-418	£2,027.00	DN 65	DN 65	0.37 kW	4.5 m	591 l/min	53	£1,702.68 £1,418.90	Loading... Add to Basket
LNEE 065-125/05/S45RCS4	3318-419	£2,105.00	DN 65	DN 65	0.55 kW	5.3 m	665 l/min	53	£1,768.20 £1,473.50	Loading... Add to Basket
LNEE 065-125/07/X45RCS4	3318-420	£2,126.00	DN 65	DN 65	0.75 kW	6.5 m	738 l/min	53	£1,785.84 £1,488.20	Loading... Add to Basket
LNEE 065-125/11/P45RCS4	3318-421	£2,167.00	DN 65	DN 65	1.1 kW	7.2 m	812 l/min	53	£1,820.28 £1,516.90	Loading... Add to Basket
LNEE 065-160/07/X45RCS4	3318-422	£2,177.00	DN 65	DN 65	0.75 kW	6.29 m	695 l/min	53	£1,828.68 £1,523.90	Loading... Add to Basket
LNEE 065-160/11A/P45RCS4	3318-423	£2,246.00	DN 65	DN 65	1.1 kW	8.2 m	738 l/min	53	£1,886.64 £1,572.20	Loading... Add to Basket
LNEE 065-160/11/P45RCS4	3318-424	£2,246.00	DN 65	DN 65	1.1 kW	9.4 m	812 l/min	53	£1,886.64 £1,572.20	Loading... Add to Basket
LNEE 065-160/15/P45RCS4	3318-425	£2,534.00	DN 65	DN 65	1.5 kW	10.6 m	959 l/min	53	£2,128.56 £1,773.80	Loading... Add to Basket
LNEE 065-200/11/P45RCS4	3318-426	£2,597.00	DN 65	DN 65	1.1 kW	8.9 m	648 l/min	53	£2,181.48 £1,817.90	Loading... Add to Basket
LNEE 065-200/15/P45RCS4	3318-427	£2,821.00	DN 65	DN 65	1.5 kW	11 m	665 l/min	53	£2,369.64 £1,974.70	Loading... Add to Basket
LNEE 065-200/22A/P45RCS4	3318-428	£3,182.00	DN 65	DN 65	2.2 kW	13.5 m	738 l/min	53	£2,672.88 £2,227.40	Loading... Add to Basket
LNEE 065-200/22/P45RCS4	3318-429	£3,182.00	DN 65	DN 65	2.2 kW	15.3 m	812 l/min	53	£2,672.88 £2,227.40	Loading... Add to Basket
LNEE 065-250/22A/P45RCS4	3318-430	£3,370.00	DN 65	DN 65	2.2 kW	14.6 m	800 l/min	53	£2,830.80 £2,359.00	Loading... Add to Basket
LNEE 065-250/22/P45RCS4	3318-431	£3,370.00	DN 65	DN 65	2.2 kW	16.8 m	665 l/min	53	£2,830.80 £2,359.00	Loading... Add to Basket
LNEE 065-250/30/P45RCS4	3318-432	£3,514.00	DN 65	DN 65	3 kW	18.8 m	738 l/min	53	£2,951.76 £2,459.80	Loading... Add to Basket
LNEE 065-250/40/P45VCS4	3318-433	£3,592.00	DN 65	DN 65	4 kW	23.1 m	885 l/min	53	£3,017.28 £2,514.40	Loading... Add to Basket

Description

Lowara e-LNE single impeller centrifugal, circulator pumps with inline suction and discharge delivery flanges.

Lowara e-LNE is a modern, electronically controlled high efficiency pump with optimised hydraulics for variable speed control. It is fully compliant with the ErP 2015 directive policies.

Lowara e-LNE pumps have an impressive 'back pull-out' design, which means the impeller, adapter and motor can be extracted without disconnecting the pump body from the piping system. All pumps are equipped with interchangeable mechanical seals and IE3 efficiency motors.

e-LNE circulator pumps are ideal for demanding building service applications which require variable duty points. Some suitable applications include:
►Water circulation in heating, ventilation and air conditioning
►Pressure boosting in commercial buildings
►Irrigation systems

Specifications
►Maximum liquid temperature: 120°C
►Maximum operating pressure: 16 bar
►IP55 Protection
►Class F insulation

Materials
►Pump body: Cast iron
►Impeller: Cast iron

Please contact us for e-LNE models 080 - 150.

All models listed above are extended shaft versions (close coupled by means of an adapter bracket with an impeller keyed directly to the special motor shaft extension).
Stub shaft versions are available upon special request. Please contact us to enquire.
