HC151+ Solenoid Driven Dosing Pumps
Share this product
UK Delivery Options and Costs
Zone 1 - England, Wales and Southern Scotland
Standard Delivery (3-5 working days) - Orders Under £100 - £7.50 / Over £100 - FREE
Express Delivery (1-2 working days) - £15
Premium Next Working Day (delivery before 13.00) - £26
Zone 2 - Scottish Highlands & Islands, Northern Ireland, Isle of Man, Scilly & Channel Isles
Standard Delivery (3-5 working days) - Orders Under £100 - £15 / Over £100 - FREE
Express Delivery (2-3 working days) - £15
Zone 3 - Republic of Ireland
Please contact us for delivery charges to Republic of Ireland
Orders must be placed before 14.00 for express and premium next day delivery.
We can also offer a same day, Saturday or Sunday delivery service on many of our products. Please call us on 01777 871100 to get a price.
Some products may be exempt from some of the delivery options above. Please click the 'Delivery Info' tab on the individual product page for full details.
Please note: Off loading charges are not included for heavy and/or bulky items.
We will try our best to deliver your order on time but inevitably, there may be delays due to bad weather or road hold-ups etc...
View the full range:
Options Available
| Model | Voltage | Maxflow | Maxhead | SKU | RRP | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|
| Model: HC151 PLUS CST M60 | Voltage: 230V | Maxflow: 10 l/hr | Maxhead: 70 m | SKU: 2116-000 | RRP: £220.73 |
£176.58
£211.90
|
Loading...
Add to Basket
|
| Model: HC151 PLUS CST M70 | Voltage: 230V | Maxflow: 14 l/hr | Maxhead: 200 m | SKU: 2116-001 | RRP: £233.34 |
£186.67
£224.00
|
Loading...
Add to Basket
|
| Model: HC151 PLUS CST M80 | Voltage: 230V | Maxflow: 20 l/hr | Maxhead: 200 m | SKU: 2116-002 | RRP: £245.96 |
£196.77
£236.12
|
Loading...
Add to Basket
|
Description

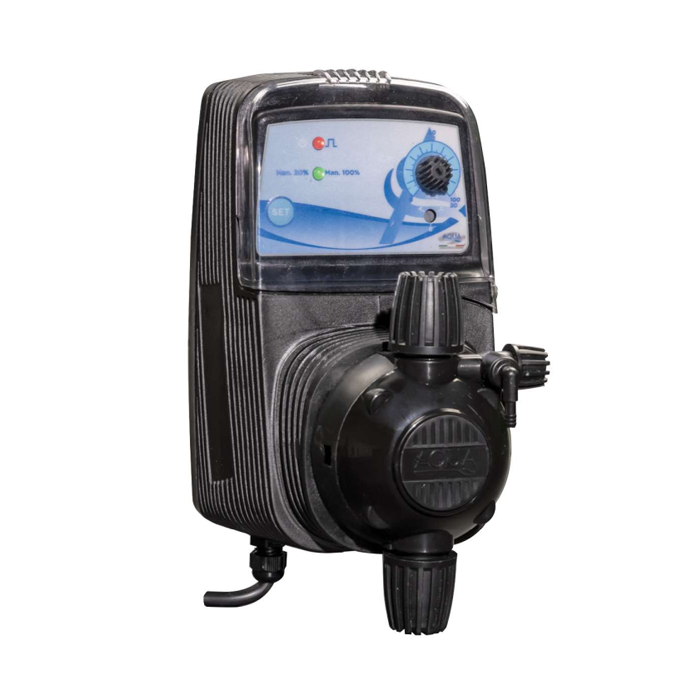

HC151+ CST solenoid driven dosing pumps are diaphragm actuated, for applications where a constant chemical injection with a reliable performance is required.
HC151+ chemical dosing pumps are designed for continuous or intermittent operation. The pumps are a reliable form of injecting strong chemicals under precise water control into water treatments or process systems.
HC151+ pumps operate on the well proven principle of electromagnetic drive, with electronic frequency control. The frequency (stroking speed) is adjustable in 2 speed ranges selectable via a two position switch which is also mounted on the facia.
The solenoid driven dosing pumps are supplied as a kit including the injection fitting foot valve, 2 metre suction/delivery hose and wall mounting bracket with screws.
All the HC151+ chemical dosing pumps come with PVDF heads as standard; this material is known for it's excellent chemical resistance. The dosing pumps reinforced PP housing amplifies it's suitability for working in an aggressive working environment.
Specifications
►Power Supply: 230v 50/60HZ
►Flow rate setting from 0-100% or from 0-20%
►IP65 protection
►Analogue control
►Manual air bleed valve for quick priming (automatic bleeding version available upon request).
For more advanced performance requirements, see the HC200+ Multi dosing pump range.
