Gate Valves Female X Female BSP Thread

View delivery information
Price match guarantee, call 0121 123 456 if you've seen it cheaper
Gate valves are used to permit or prevent the flow of water. This valve uses a hand-wheel operation to switch the flow on/off.
chevron-down chevron-up
6 options available from £4.78
Description
Downloads

View the full range:

Need help choosing? Send enquiry



Options Available

Model SKU Rrp Our Price (ex VAT)
1/2" Gate Valve 060-1900 £5.86
£5.74 £4.78
loader
Loading...
Add to Basket
3/4" Gate Valve 060-1920 £9.08
£8.89 £7.41
loader
Loading...
Add to Basket
1" Gate Valve 060-1940 £11.99
£11.74 £9.78
loader
Loading...
Add to Basket
1-1/4" Gate Valve 060-1960 £18.54
£18.16 £15.13
loader
Loading...
Add to Basket
1-1/2" Gate Valve 060-1980 £23.61
£23.12 £19.27
loader
Loading...
Add to Basket
2" Gate Valve 060-2000 £37.65
£36.86 £30.72
loader
Loading...
Add to Basket

Description

Gate valves are used to permit or prevent the flow of water. This valve uses a hand-wheel operation to switch the flow on/off.

►Connection: Female Thread x Female Thread

Specifications
►Maximum working pressure: 16 bar (1/2" to 2") 10 bar (3" & 4")
►Maximum liquid temperature: 120°C

Materials
►Valve body: Brass
►Valve seat: Brass
►Handle: Cast iron

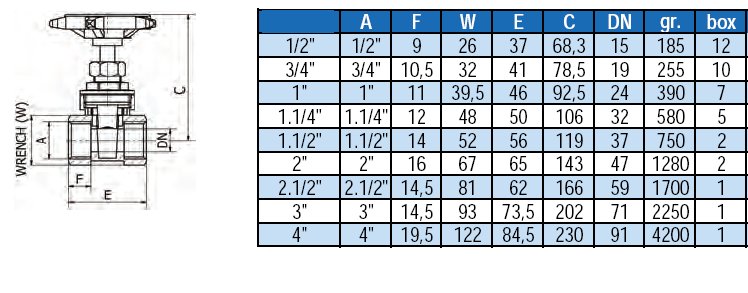

Dimension Diagram

If you require a 2-1/2", 3" or 4" gate valve, please contact us on 01777 871100 as a special order will need to be placed.
