View the full range:
Options Available
| Model | SKU | Rrp | Inlet | Outlet | Motor | Maxhead | Maxflow | Voltage | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|---|---|
| CDX M 70/05 + Brewery Seal | 111-000B | £777.68 | 1-1/4" | 1" | 0.37kW | 21 m | 90 l/min | 51 |
£653.26
£544.38
|
Loading...
Add to Basket
|
| CDX M 70/07 + Brewery Seal | 111-001B | £788.68 | 1-1/4" | 1" | 0.55kW | 28 m | 80 l/min | 51 |
£662.50
£552.08
|
Loading...
Add to Basket
|
| CDX M 90/10 + Brewery Seal | 111-002B | £967.68 | 1-1/4" | 1" | 0.75kW | 31 m | 110 l/min | 51 |
£812.86
£677.38
|
Loading...
Add to Basket
|
| CDX M 120/07 + Brewery Seal | 111-003B | £1,055.68 | 1-1/4" | 1" | 0.55 kW | 21 m | 180 l/min | 51 |
£886.78
£738.98
|
Loading...
Add to Basket
|
| CDX 70/05 + Brewery Seal | 111-008B | £742.68 | 1-1/4" | 1" | 0.37kW | 21 m | 90 l/min | 53 |
£623.86
£519.88
|
Loading...
Add to Basket
|
| CDX 70/07 + Brewery Seal | 111-009B | £770.68 | 1-1/4" | 1" | 0.55kW | 28 m | 80 l/min | 53 |
£647.38
£539.48
|
Loading...
Add to Basket
|
| CDX 90/10 + Brewery Seal | 111-010B | £955.68 | 1-1/4" | 1" | 0.75 kW | 31 m | 110 l/min | 53 |
£802.78
£668.98
|
Loading...
Add to Basket
|
| CDX 120/07 + Brewery Seal | 111-011B | £941.68 | 1-1/4" | 1" | 0.55 kW | 21 m | 180 l/min | 53 |
£791.02
£659.18
|
Loading...
Add to Basket
|
Description

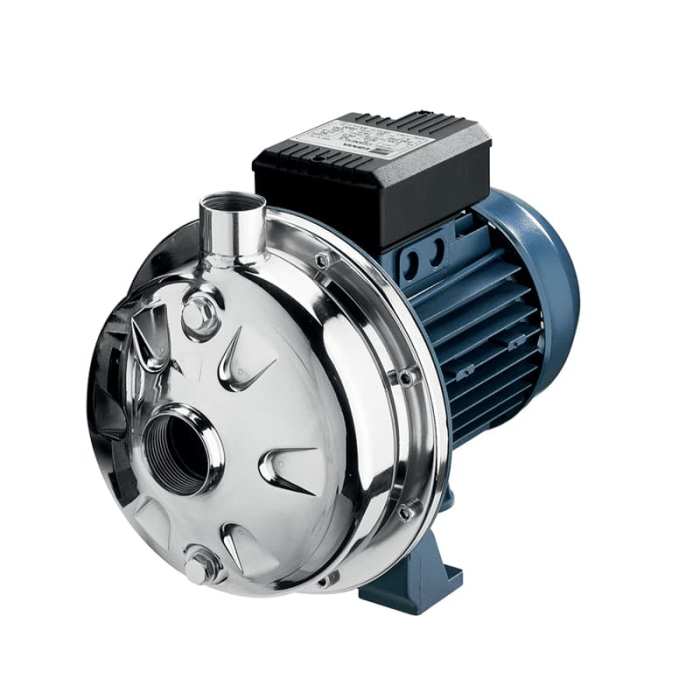

Ebara CDX(M) centrifugal pumps are highly suitable for hot wort transfer in large commercial breweries and home microbreweries.
These single impeller, centrifugal wort transfer pumps are made from corrosion resistant AISI 304 stainless steel with hydraulic components.
Ebara CDX(M) brewery pumps have the ability to withstand high liquid temperatures of up to 110°C which make them the ideal choice for pumping hot wort.
We have found that many brewers were experiencing problems with their hot wort transfer pumps leaking. This is not a problem encountered when pumping water so we set about finding out why this was happening. We discovered that sugars from the wort were crystallising on the faces of the mechanical shaft seal and forcing the two components apart, this causing the seal to leak. The shaft seals were repeatedly looking like the image below...
After some experimentation, we found a wort pump mechanical seal with a material which will still withstand the high temperature but does not allow the sugar to adhere to the mating surfaces.
We now supply the Ebara CDX centrifugal brewery pumps with the special hot wort transfer seal fitted. We also supply the shaft seal as a spare part for retro fitting to existing brewery pumps and also offer a fitting service.
Read our helpful infographic to find out the 3 costly problems using the right brewery pump and seal can avoid...
Specifications
►Maximum liquid temperature: 110°C with brewery seal
►Maximum suction lift: 9 Metres
►Maximum working pressure: 8 bar
►Maximum soft solids: 50 mm
►IP55 Protection
Materials
►Pump body: AISI 304 Stainless Steel
►Impeller: AISI 304 Stainless Steel
Whisper Pumps are proud members of SIBA (The Society of Independent Brewers). We are highly experienced in hot wort pumping and our team have expert product knowledge. If you are unsure on the hot wort transfer pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
