Ebara 3LS4 End Suction Centrifugal Pumps - 400V

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Ebara 3LS4 end suction centrifugal pumps are robust, high performance pumps designed for high pressure application and clean water transfer. Suitable for commercial and industrial applications, these centrifugal water pumps are typically used for reverse osmosis, water boosting, heating systems, air-conditioning and washing systems.

12 options available from £1,244.60

Description

Downloads

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Inlet	Outlet	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
3LS4 32-125/0.25	111-080	£1,778.00	DN 50	DN 32	0.25kW	5.5 m	160 l/min	53	£1,493.52 £1,244.60	Loading... Add to Basket
3LS4 32-160/0.37	111-081	£2,000.00	DN 50	DN 32	0.37kW	9 m	160 l/min	53	£1,680.00 £1,400.00	Loading... Add to Basket
3LS4 32-200/0.55	111-082	£2,280.00	DN 50	DN 32	0.55kW	12.5 m	160 l/min	53	£1,915.20 £1,596.00	Loading... Add to Basket
3LS4 32-200/0.75	111-083	£2,412.00	DN 50	DN 32	0.75kW	17 m	160 l/min	53	£2,026.08 £1,688.40	Loading... Add to Basket
3LS4 40-125/0.37	111-084	£1,919.00	DN 65	DN 40	0.37kW	6.5 m	350 l/min	53	£1,611.96 £1,343.30	Loading... Add to Basket
3LS4 40-160/0.55	111-085	£2,199.00	DN 65	DN 40	0.55kW	9 m	350 l/min	53	£1,847.16 £1,539.30	Loading... Add to Basket
3LS4 40-200/1.10	111-086	£2,828.00	DN 65	DN 40	1.10kW	12.5 m	350 l/min	53	£2,375.52 £1,979.60	Loading... Add to Basket
3LS4 40-200/1.50	111-087	£3,067.00	DN 65	DN 40	1.50kW	18 m	350 l/min	53	£2,576.28 £2,146.90	Loading... Add to Basket
3LS4 50-125/0.55	111-088	£2,057.00	DN 65	DN 50	0.55kW	6 m	600 l/min	53	£1,727.88 £1,439.90	Loading... Add to Basket
3LS4 50-160/1.10	111-089	£2,780.00	DN 65	DN 50	1.10kW	9 m	600 l/min	53	£2,335.20 £1,946.00	Loading... Add to Basket
3LS4 50-200/1.50	111-090	£3,271.00	DN 65	DN 50	1.50kW	13.5 m	600 l/min	53	£2,747.64 £2,289.70	Loading... Add to Basket
3LS4 50-200/2.20	111-091	£3,271.00	DN 65	DN 50	2.20kW	18 m	600 l/min	53	£2,747.64 £2,289.70	Loading... Add to Basket

Description

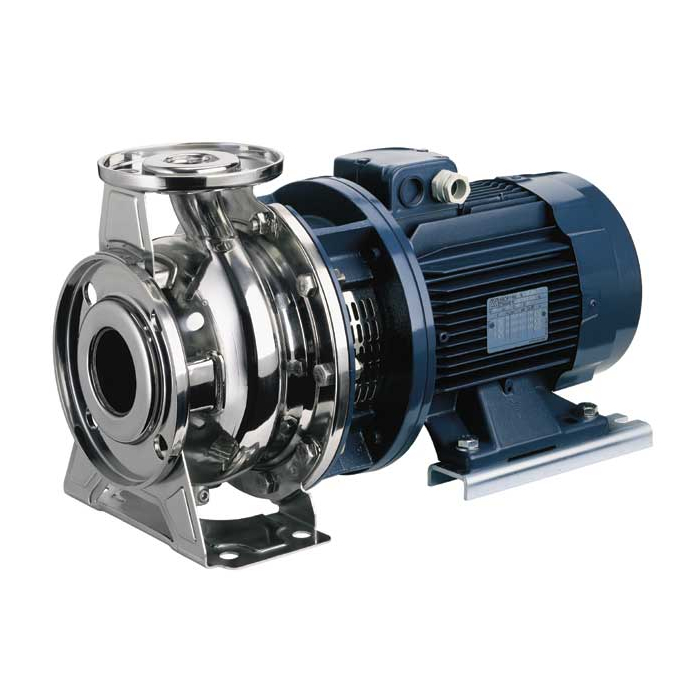

Ebara 3LS4 4 pole end suction centrifugal pumps are one of Ebara's most robust, sturdy and high-performance pumps available. Designed for high pressure applications and to transfer clean water, these centrifugal water pumps are ideal solutions for a range of commercial and industrial applications, including water boosting, heating systems, air conditioning, washing systems, fire fighting and irrigation. These horizontal end suction pumps have a compact design, making them a preferable pumping solution for installations with limited space and difficult to reach spaces.

Manufactured in accordance with EN733 and made from corrosion resistant AISI 316 stainless steel, these Ebara end suction pumps are a complete and reliable solution that can successfully operate even in the most difficult and heavy-duty conditions. The beauty of these end suction centrifugal pumps is that they have a back pull-out design; a pump construction which allows the removal of the impeller-motor block without disconnecting the pump body from the piping. This significantly reduces maintenance downtime if you experience any problems.

Ebara 3LS4 stainless steel end suction pumps are supplied with highly efficient motors that allow optimal performance and a high level of efficiency, reducing your pump's operational costs. These horizontal end suction centrifugal pumps come with Carbon /Ceramic/ NBR mechanical seal, but upon request, we can offer different mechanical seals to match your requirements and the pumped fluid. As standard, the Ebara 3LS4 centrifugal water pumps are supplied in stub shaft design, but they are also available in the following constructions to allow easy installation:
►Stub shaft (models listed above)
►Monobloc with extended shaft motor (3M)
►Bare shaft (available on request)
►Frame mounted (available on request)

Specifications
►Maximum liquid temperature: 110°C
►Maximum working pressure: 10 bar
►Maximum suction lift: 9 Metres

Materials
►Pump Body: AISI 316 Stainless Steel
►Impeller: AISI 316 Stainless Steel
►Shaft seal: Silicone/Silicone/FPM - Other mechanical seal types are available upon request

Ebara 3LS4 centrifugal pumps are available with ATEX certified hydraulics and motor (contact us for the ATEX version).

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure on the end suction centrifugal water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
