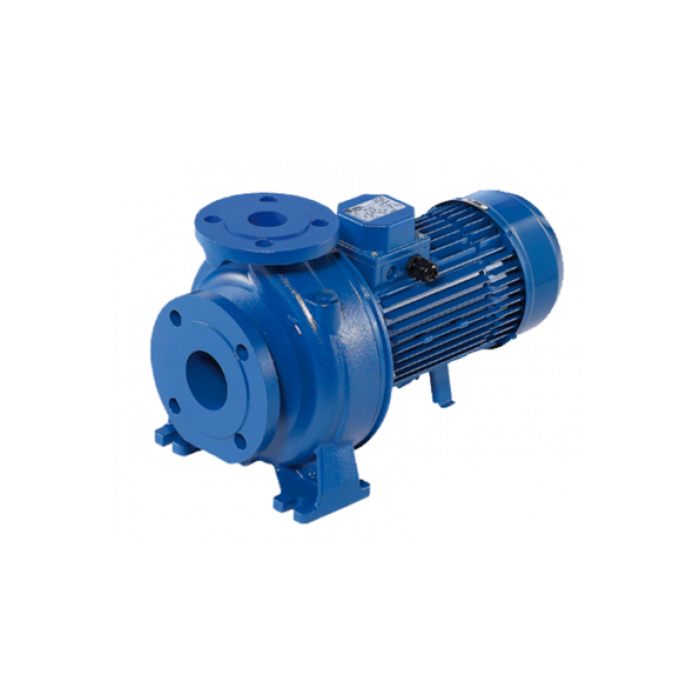

Ebara 3D4 End Suction Centrifugal Pumps

View delivery information

Price match guarantee, call 0121 123 456 if you've seen it cheaper

Ebara 3D4 4 pole end suction centrifugal pumps are designed for high flow industrial and commercial applications and for transferring clean and chemically non-aggressive liquids. Due to their renowned robust cast iron construction, these centrifugal water pumps are typically used for water boosting, washing and industrial plants, water circulation in climate control systems and irrigation.

21 options available from £661.50

Description

Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model	SKU	Rrp	Motor	Maxhead	Maxflow	Voltage	Our Price (ex VAT)
3D4 32-125/0.25	111-231	£945.00	0.25 kW	5.5 m	175 l/min	53	£793.80 £661.50	Loading... Add to Basket
3D4 32-125/0.37 R	111-232	£1,063.00	0.37 kW	7 m	175 l/min	53	£892.92 £744.10	Loading... Add to Basket
3D4 32-160/0.37	111-233	£1,063.00	0.37 kW	8.7m	175 l/min	53	£892.92 £744.10	Loading... Add to Basket
3D4 32-200/0.55	111-234	£1,212.00	0.55 kW	12 m	175 l/min	53	£1,018.08 £848.40	Loading... Add to Basket
3D4 32-200/0.75	111-235	£1,284.00	0.75 kW	17.1 m	175 l/min	53	£1,078.56 £898.80	Loading... Add to Basket
3D4 40-125/0.37R	111-238	£1,021.00	0.37 kW	4.8 m	350 l/min	53	£857.64 £714.70	Loading... Add to Basket
3D4 40-125/0.37	111-239	£1,021.00	0.37 kW	6.3 m	350 l/min	53	£857.64 £714.70	Loading... Add to Basket
3D4 40-160/0.55	111-240	£1,170.00	0.55 kW	8.6 m	350 l/min	53	£982.80 £819.00	Loading... Add to Basket
3D4 40-200/1.1R	111-241	£1,504.00	1.1 kW	11.2 m	350 l/min	53	£1,263.36 £1,052.80	Loading... Add to Basket
3D4 40-200/1.1	111-242	£1,504.00	1.1 kW	13.2 m	350 l/min	53	£1,263.36 £1,052.80	Loading... Add to Basket
3D4 50-125/0.55	111-245	£1,094.00	0.55 kW	6.2 m	600 l/min	53	£918.96 £765.80	Loading... Add to Basket
3D4 50-160/1.1R	111-246	£1,479.00	1.1 kW	7.8 m	650 l/min	53	£1,242.36 £1,035.30	Loading... Add to Basket
3D4 50-160/1.1	111-247	£1,479.00	1.1 kW	9.1 m	650 l/min	53	£1,242.36 £1,035.30	Loading... Add to Basket
3D4 50-200/1.5R	111-248	£1,740.00	1.5 kW	12.1 m	650 l/min	53	£1,461.60 £1,218.00	Loading... Add to Basket
3D4 50-200/1.5	111-249	£1,740.00	1.5 kW	13.3 m	650 l/min	53	£1,461.60 £1,218.00	Loading... Add to Basket
3D4 50-200/2.2	111-250	£1,740.00	2.2 kW	17.5 m	650 l/min	53	£1,461.60 £1,218.00	Loading... Add to Basket
3D4/H 65-125/0.75	111-253	£1,598.00	0.75 kW	6 m	1000 l/min	53	£1,342.32 £1,118.60	Loading... Add to Basket
3D4/H 65-160/1.1	111-254	£1,760.00	1.1 kW	8.1 m	1050 l/min	53	£1,478.40 £1,232.00	Loading... Add to Basket
3D4/H 65-160/1.5	111-255	£1,772.00	1.5 kW	9.2 m	1100 l/min	53	£1,488.48 £1,240.40	Loading... Add to Basket
3D4/H 65-200/2.2	111-256	£2,064.00	2.2 kW	13.9 m	1100 l/min	53	£1,733.76 £1,444.80	Loading... Add to Basket
3D4/H 65-200/3	111-257	£2,154.00	3 kW	15.8 m	1200 l/min	53	£1,809.36 £1,507.80	Loading... Add to Basket

Description

Ebara 3D4 4 pole end suction centrifugal pumps designed for transferring clean and chemically non-aggressive liquids. These centrifugal water pumps have a highly robust construction and are perfect solutions for various industrial and commercial applications, including water boosting, washing and industrial plants, water circulation in climate control systems, irrigation and many other industrial applications. Thanks to their performance capabilities, these horizontal end suction pumps are typically used for heavy duty industrial applications that require high efficiency and reliable long-term operation.

These end suction water pumps are manufactured in accordance with EN733 and made from robust cast iron with corrosion-resistant stainless-steel impellers, which further enhances the pump design. The beauty of the Ebara 3D4 end suction centrifugal water pumps is that they are available with different types of mechanical seals to match your exact requirements and the compatibility of the pumped fluid. In addition, to allow easy and quick pump maintenance, these horizontal end suction centrifugal pumps have a back pull-out configuration, a pump construction which allows the removal of the motor, coupling, bracket and impeller without disconnecting the pump body from the piping.

Equipped with stainless steel impeller and highly efficient IE3 motors that guarantee continuous operation without faults, these Ebara end suction pumps are built to last and provide smooth operation with minimal maintenance. As standard, the 3D4 centrifugal water pumps are supplied in monobloc with extended shaft motor design, but they are also available in the following constructions to allow easy installation:
►Monobloc with extended shaft motor (models listed above)
►Stub shaft (available on request)
►Frame mounted (available on request)

Specifications
►Maximum liquid temperature: 90°C
►Maximum working pressure: 10 bar

Materials
►Pump Body: Cast iron
►Impeller: Stainless Steel
►Mechanical seal: Ceramic/Carbon/NBR (as standard)

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the end suction centrifugal water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
