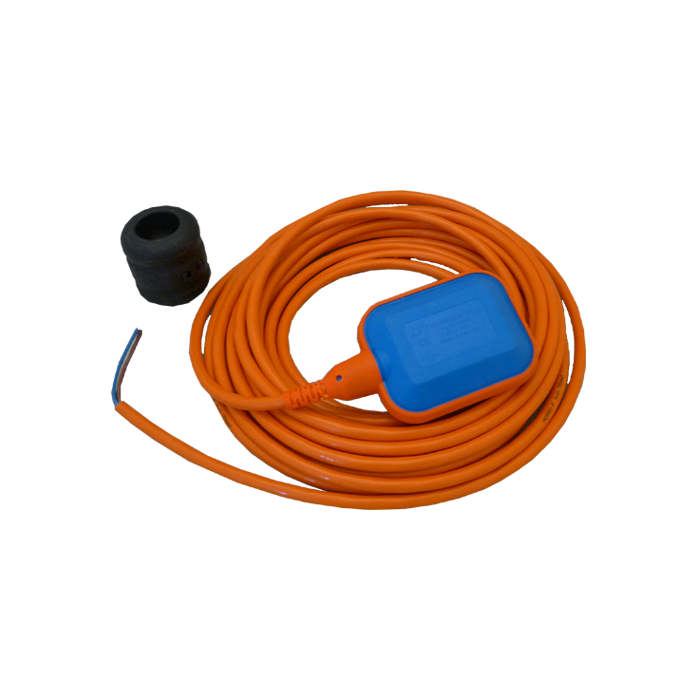

Double action float switch for diesel oil which is moulded to a PUR polyurethane 3 core cable.
chevron-down chevron-up
1 options available from £50.53
Description
Downloads
Need help choosing? Send enquiry



Options Available

Model SKU Our Price (ex VAT)
LR-06 With 10 Metre Cable & Counterweight 2230-021
£60.64 £50.53
loader
Loading...
Add to Basket

Description

Double action float switch for diesel oil which is moulded to a PUR polyurethane 3 core cable.

Actuation is via a roller ball and micro-switch arrangement within the switch thereby eliminating all heavy metals.

Can be used for tank filling or emptying.

Specifications
►Maximum temperature: 70ºC
►Maximum submerged depth: 20 m
►Maximum current: 15 amp at 250v (non inductive) 10 amp at 250v (inductive)
►Counterweight included

Other cable lengths are available on request. Contact us on 01777 871100 to enquire.
