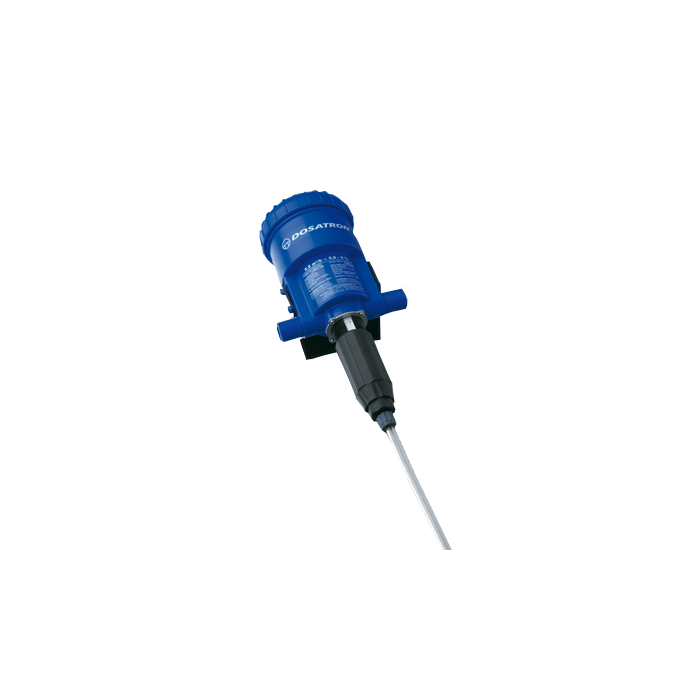

Dosatron D25 Chemical Injection Pumps
Share this product
View delivery information
Price match guarantee, call 0121 123 456 if you've seen it cheaper
Dosatron D25 chemical injection pumps are installed directly in the water supply line and operate by using the flow of water as the power source. Scroll down for individual dosage rates for each pump.
Options Available
| Model | SKU | Maxflow | Our Price (ex VAT) | |
|---|---|---|---|---|
| D25RE-2 - BLUE BODY | 3416-006 | 10 - 2500 l/hr |
£538.80
£449.00
|
Loading...
Add to Basket
|
| D25RE-5 - BLUE BODY | 3416-007 | 10 - 2500 l/hr |
£801.60
£668.00
|
Loading...
Add to Basket
|
| D25RE-10 - BLUE BODY | 3416-008 | 10 - 2500 l/hr |
£934.80
£779.00
|
Loading...
Add to Basket
|
| D25RE-2 - PVDF WHITE BODY | 3416-026 | 10 - 2500 l/hr |
£655.20
£546.00
|
Loading...
Add to Basket
|
| D25RE-5 - PVDF WHITE BODY | 3416-027 | 10 - 2500 l/hr |
£939.60
£783.00
|
Loading...
Add to Basket
|
| D25RE-10 - PVDF WHITE BODY | 3416-028 | 10 - 2500 l/hr |
£1,072.80
£894.00
|
Loading...
Add to Basket
|
Description
Dosatron D25 chemical injection pumps are installed directly in the water supply line and operate by using the flow of water as the power source.
We recommend you supply a chemical datasheet (MSDS) if you are interested in ordering a Dosatron so we can check compatibility. Please call us on 01777 871100 or contact us here.
Dosatron pumps dose the required percentage of concentrate from the container into the water. Inside the Dosatron the concentrate is mixed with water and the water pressure forces the solution downstream.
The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure which may occur in the main line. See the datasheet in the Downloads tab for full details.
D25 Dosatron pumps are available in a Blue Body or PVDF White Body.
Specifications
►Maximum operating water temperature: 40ºC
►Minimum operating water temperature: 5ºC
►Average dosing accuracy: +/-5%
►Pressure Loss: 0.3- 1.9 bar
| Model | Dosage Rate Range (%) |
| D25RE-2 | 0.2 - 2 |
| D25RE-5 | 1 - 5 |
| D25RE-10 | 3 - 10 |
We recommend you supply a chemical datasheet (MSDS) if you are interested in ordering a Dosatron so we can check compatibility. Please call us on 01777 871100 or contact us here.
