DAB Active Driver Plus
Share this product
Options Available
| Model | SKU | Rrp | Inlet | Outlet | Current | Voltage | Our Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|
| ACTIVE DRIVER PLUS M/M 1.1 | 2439-011 | £685.00 | 1-1/4" M | 1-1/2" F | 8.5 Amps | 51 |
£657.60
£548.00
|
Loading...
Add to Basket
|
| ACTIVE DRIVER PLUS M/M 1.5 | 2439-013 | £1,038.00 | 1-1/4" M | 1-1/2" F | 11 Amps | 51 |
£996.48
£830.40
|
Loading...
Add to Basket
|
| ACTIVE DRIVER PLUS M/M 1.8 | 2439-014 | £1,184.00 | 1-1/4" M | 1-1/2" F | 14 Amps | 51 |
£1,136.64
£947.20
|
Loading...
Add to Basket
|
| ACTIVE DRIVER PLUS M/T 1.0 | 2439-012 | £1,028.00 | 1-1/4" M | 1-1/2" F | 4.7 Amps | 51 |
£986.88
£822.40
|
Loading...
Add to Basket
|
| ACTIVE DRIVER PLUS M/T 2.2 | 2439-005 | £1,308.00 | 1-1/4" M | 1-1/2" F | 10.5 Amps | 51 |
£1,255.68
£1,046.40
|
Loading...
Add to Basket
|
| ACTIVE DRIVER PLUS T/T 3.0 | 2439-008 | £1,781.00 | 1-1/4" M | 1-1/2" F | 7.5 Amps | 53 |
£1,709.76
£1,424.80
|
Loading...
Add to Basket
|
| ACTIVE DRIVER PLUS T/T 5.5 | 2439-006 | £2,222.00 | 1-1/4" M | 1-1/2" F | 13.3 Amps | 53 |
£2,133.12
£1,777.60
|
Loading...
Add to Basket
|
Description

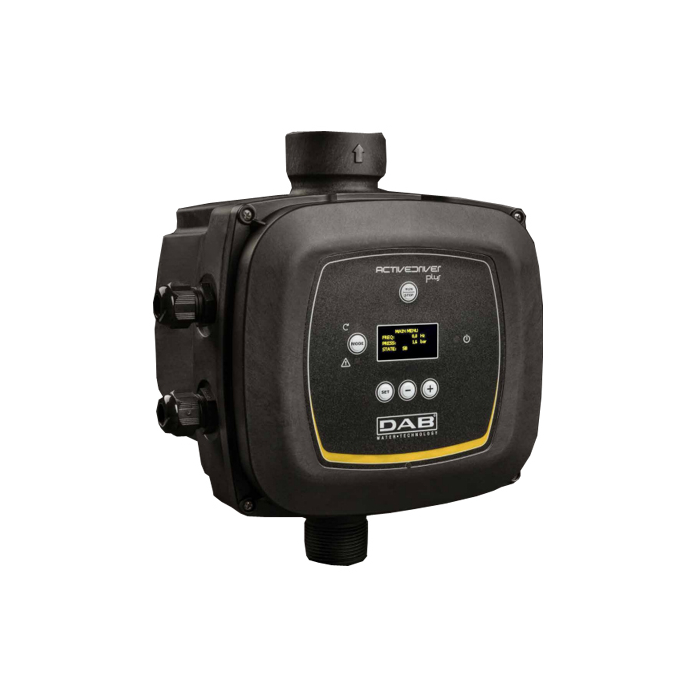

DAB Active Driver Plus (formerly known as the PWM) is a variable frequency drive control system for electric water pumps.
The Active driver is made up of a built in pressure sensor, a flow sensor and an inverter all in one unit. The box is compact and easy to install.
DAB Active Driver can work with any kind of pump: single or multistage, surface or submersible. The Active Driver uses the built in inverter to control the speed of the motor. As the flow increases, the speed of the motor increases, maintaining a constant pressure.
Active Driver M/M is compatible with single phase (230v) power supply pumps.
Active Driver M/T & T/T is compatible with three phase (400v) power supply pumps.
Advantages
►Greater energy saving
►Greater noise reduction
►Eliminates over-pressures
►Increases pump life span
►Easy installation
►No water hammer
►Able to run three phase pumps off single phase supply
As a DAB pump supplier over 25 years, we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the submersible water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
